Full Automatic 2 Pin Plug Inserting Crimipng Machine Power Cord Line Cable Cutting Stripping and Euro Plug Crimping Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Condition：New
  • Certification：ISO, CE

Base Info

  • Model NO.：WL-780
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Wire：H03vvh2-F, H05vvh2-F, Spt1,2, Rvv Vff
  • Crimping Force：4t
  • Yield：No Less Than 99.0%
  • Air Pressure：0.5-0.8MPa
  • Power：4.5kw
  • Weight：2000kg
  • Dimension：L3100mm*W5000mm*H1850mm
  • Wire Tail Stripping Length：20mm-500mm
  • Transport Package：Wooden Carton
  • Specification：900*560*1470mm
  • Trademark：crown
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：500PCS,Month

Description

Basic Info.

Model NO. WL-780 Warranty 12 Months Automatic Grade Automatic Wire H03vvh2-F, H05vvh2-F, Spt1/2, Rvv Vff Crimping Force 4t Yield No Less Than 99.0% Air Pressure 0.5-0.8MPa Power 4.5kw Weight 2000kg Dimension L3100mm*W5000mm*H1850mm Wire Tail Stripping Length 20mm-500mm Transport Package Wooden Carton Specification 900*560*1470mm Trademark crown Origin China HS Code 8479819000 Production Capacity 500PCS/Month

Product Description

Wl-780 Full automatic 2 pin plug inserting crimipng machine power cord line cable cutting stripping and euro plug crimping machine

Features:

The fully automatic two-pin plug inserts crimping machine can automatically complete wire feeding, wire head stripping, wire head plug pins crimping, wire tail stripping + twisting + tinning, or wire tail plug pins crimping.

  • Main function: wire feeding, wire head stripping, wire head plug inserts crimping, wire tail stripping + twisting + tinning, or wire tail plug pins crimping

  • Applicable wires: H03VVH2-F, H05VVH2-F, SPT1/2, RVV VFF

Specifications:

ModelWL-780
Capacity900-1,100 PCS/Hour
Force4T
Yield rate≥99%
Wire tail stripping length20mm-500mm
VoltageAC220V/AC380V 50Hz
Working air pressure0.5-0.8MPa
Power4.5KW
Weight2000KG
DimensionL3100mm*W5000mm*H1850mm

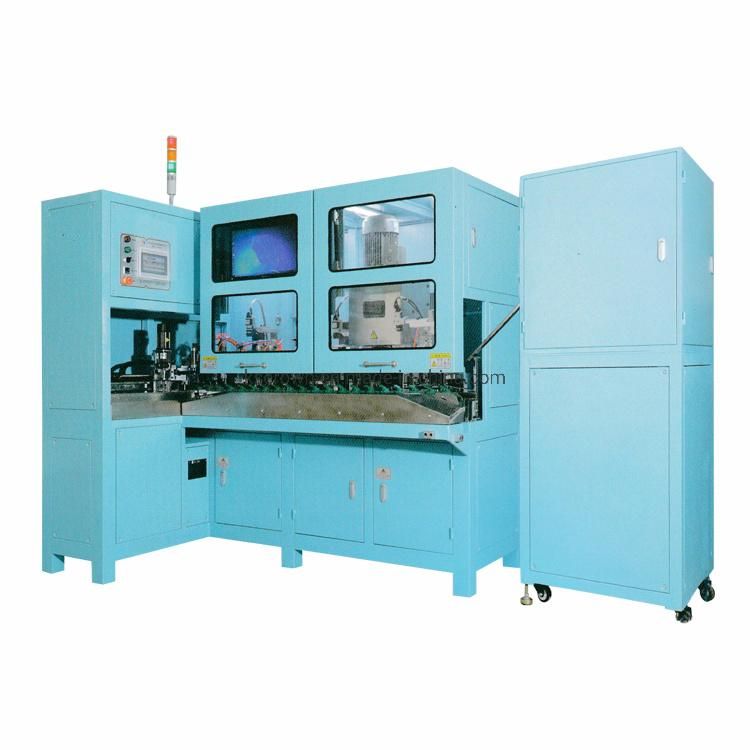

 Product Show:

Full Automatic 2 Pin Plug Inserting Crimipng Machine Power Cord Line Cable Cutting Stripping and Euro Plug Crimping Machine

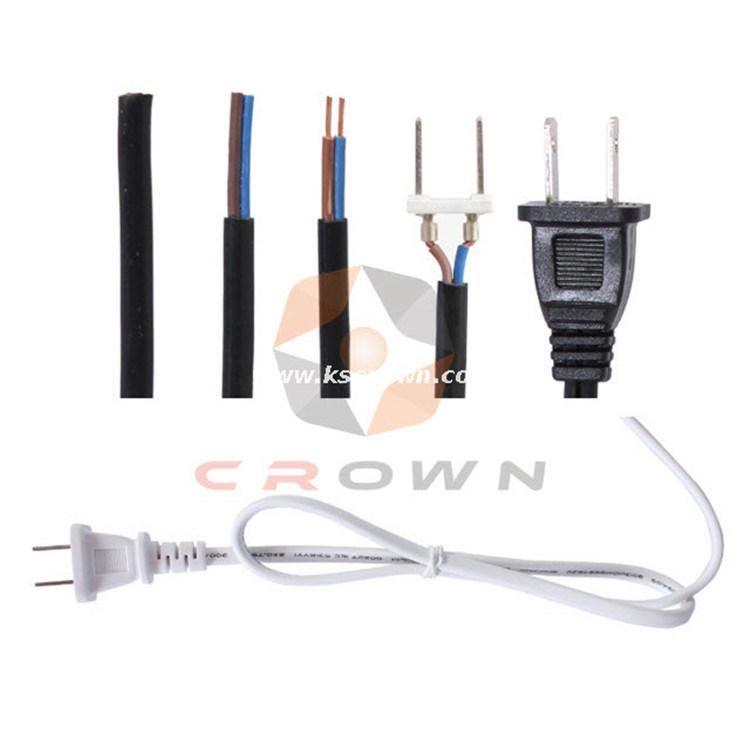

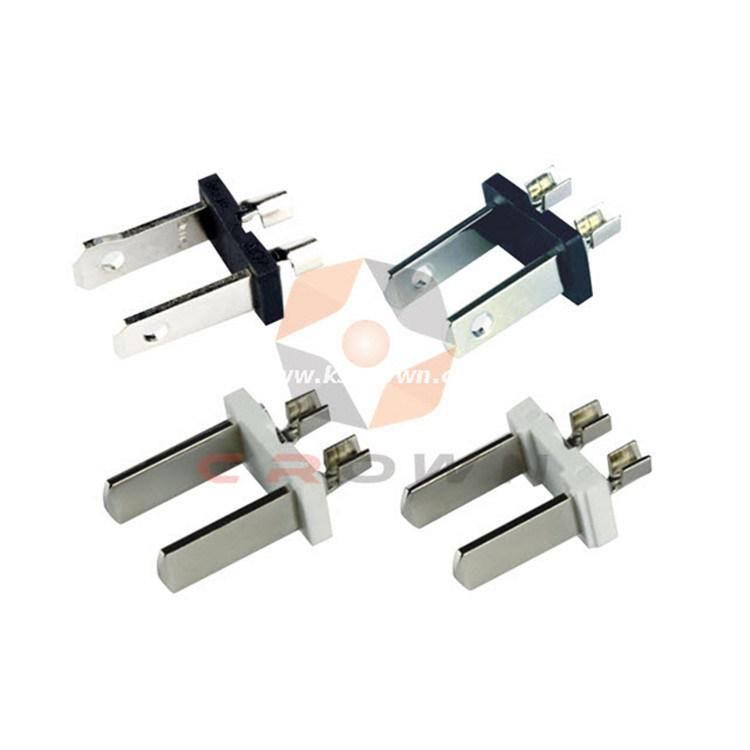

Application Terminal:

Full Automatic 2 Pin Plug Inserting Crimipng Machine Power Cord Line Cable Cutting Stripping and Euro Plug Crimping MachineFull Automatic 2 Pin Plug Inserting Crimipng Machine Power Cord Line Cable Cutting Stripping and Euro Plug Crimping Machine


Certification below

Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

Full Automatic 2 Pin Plug Inserting Crimipng Machine Power Cord Line Cable Cutting Stripping and Euro Plug Crimping Machine



Company Information

Full Automatic 2 Pin Plug Inserting Crimipng Machine Power Cord Line Cable Cutting Stripping and Euro Plug Crimping Machine

 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance

If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.

Contact:
Pls contact Suzhou Crown Kitty for price inquiry or any other questions/doubt.
