Russia Market PFA/FEP/ETFE Wire Extruding Machine
HOOHA Co., LIMITED- After-sales Service：Installation and Training
- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
Base Info
- Model NO.：45,65
- Usage：Extruding
- Material：Fluoroplastic
- Motor：Germany-Siemens
- Conductor：Copper Wire, Tin-Plated Wire
- Inverter：Siemens
- Electric Element：Siemens and Omron
- Control Box：PLC Siemens
- Transport Package：Wood Package
- Specification：45mm
- Trademark：HOOHA
- Origin：Dongguan
- HS Code：8479400000
- Production Capacity：3 Sets,Month
Description
Model
30mm
45mm
65mm
Screw L/D ratio
25:1
25:1
25:1
Temperature control
6 Segment
6 Segment
7 Segment
Main motor power
10HP
15HP
30HP
Extrusion output
20kg/hr
45kg/hr
100kg/hr
Conductor diameter
0.2-1.8mm
0.4-6.0mm
0.6-8.0mm
Insulation back outer diameter
0.4-2.0mm
0.6-8.0mm
1.0-10.0mm
Electric control
PLC SIEMENS

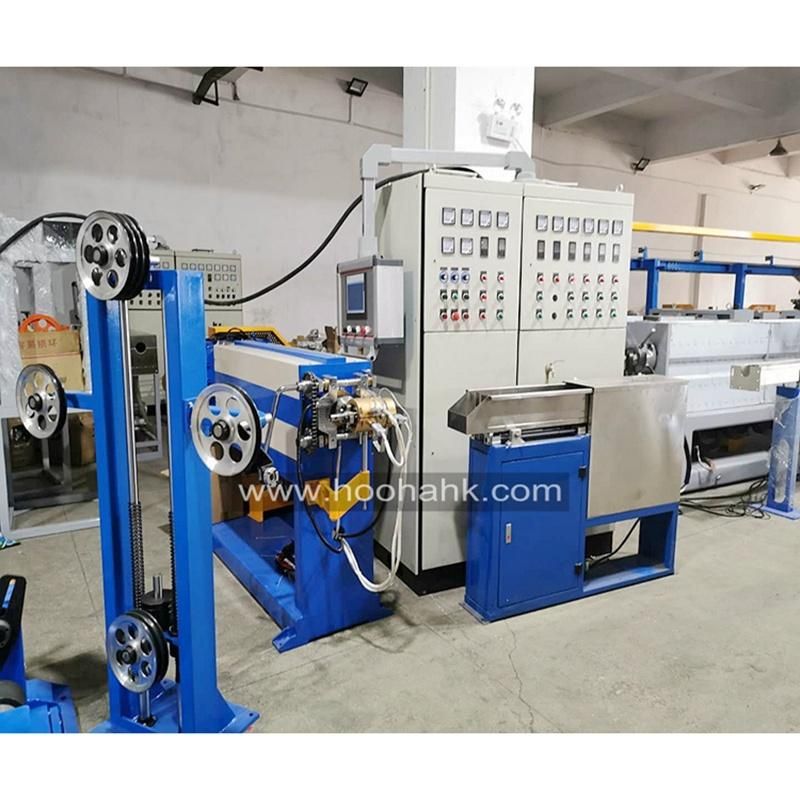

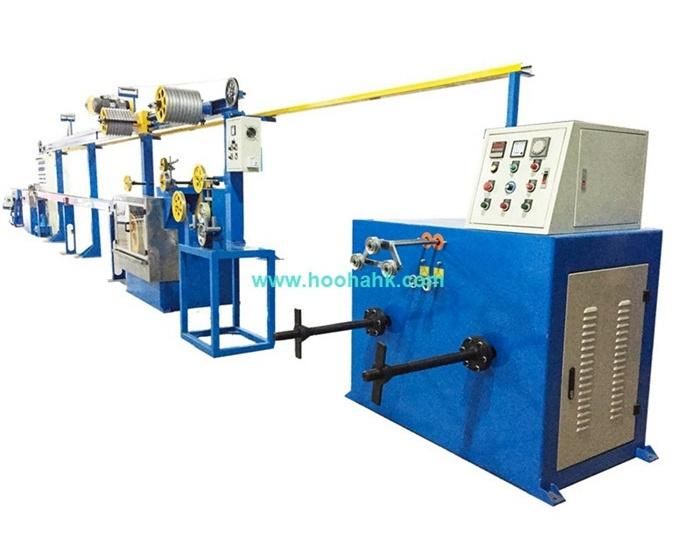

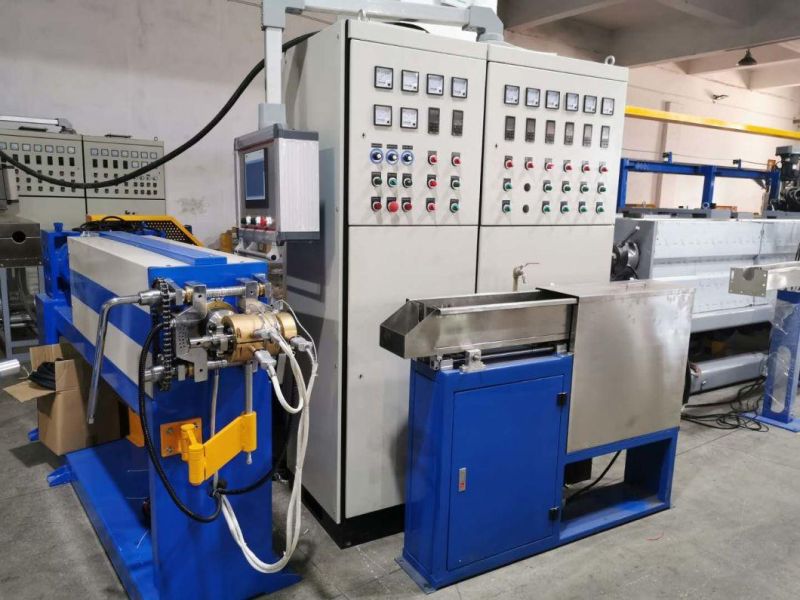

Teflon cable machine Consisting Components:
1,pay-off rack
2,straightener platform/dancer
3,45 Teflon main extruder(with pump)
4,automatic dryer and hopper
5,PLC Siemens main control cabinet
6,Double layer movable trough
7,laser diameter gauge or Digital Diameter controller
8,high speed printing machine
9,double-wheels capstan/caterpillar
10,Meter counter
11,horizontal type wire-accumulator
12,power frequency sparker
13,double-shaft take-up machine
2.cable machine Spare Parts Brands:
Motor : Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF
3.cable machine Afetr service
4.FAQ
Q1:What is your main brand for the electrical and mechanical parts?
A:China famous brand and taiwan brand
Q2:Could we appoint the parts brand?
A: Yes,SIEMENS, Danfoss,Yaskawa, or theirs that you like
Q3:Could you please arrange the installation and commissioning?
A: Yes,we could and the buyer pay the charge
Q4:Could you arrange the production education?
A:Yes,we could and the buyer pay the charge
Q5:Could you do the design for the whole plant
A: Yes , we can.
Q6:What is the difference with other supplier?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .
Q7:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
Q8:How long the guarantee ?
A: one year and charge for repair the whole life.
Q9: Do you have any video for the machine running to get more details ?
A: Yes , we have . our yoube channel is : tiezhong chi OR HOOHA CO.,LTD
5.We focuses on wire and cable making solution:
1)The overall operation suggestions of the cable factory
2)Installation and debugging of overall machinery and accessories of the cable factory
3)Cost accounting service of overall mechanical equipment and components
4)Cost accounting service of raw materials and accessories
5)Cost accounting service of overall operation.
6)Talent delivery and training service.
7)Overseas on-site guidance and consulting services for equipment installation.
8)Maintenance,reconstruction and upgrade services of the overall equipment.
