Electric Cable Sheath Extrusion Machine, Power Cable Insulation and Sheathing%

Wuxi Longterm Machinery Technologies Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, ISO, CE, CCC, PSE, UL, FDA, RoHS, ISO, CE
  • Warranty：12 Months
  • Screw：Single-Screw
  • Product Name：Electric Cable Sheath Extrusion Line

Base Info

  • Model NO.：CF19-08635
  • Working Temperature：0-45degrees
  • Power：Three-Phase 380 Plus or Minus 10%
  • Application：Extruder Compound of PVC, PE, Lshf
  • Nitrogen Depth：0.5~0.7mm
  • Screw & Barrel Surface：Nitrogen Treated
  • Oversea Installation：Available
  • Transport Package：Standard Seaworthy Package
  • Trademark：HLT
  • Origin：China, Jiangsu
  • HS Code：84772090
  • Production Capacity：500,Year

Description

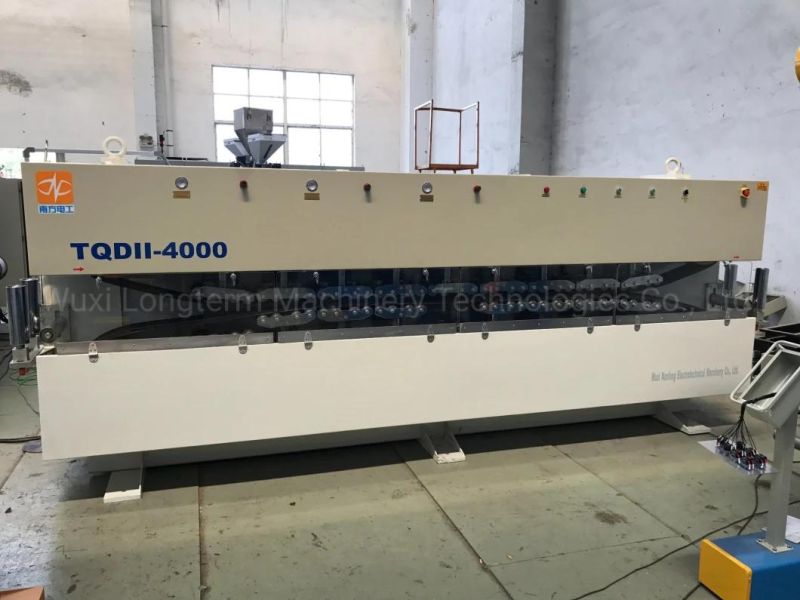

ModelType 200Type 300Type 500Type 800Type 1250Type 1600Type 2000Cable through the outer diameter(mm)2~205~255~408~6010~8015~10020~120Max. traction force(kg)200300500800125016002000Speed(m/min)150150100100808060Track contact length(mm)5206207501200150019002100Track width(mm)707080100120120135Number of cylinder(pair)3335567Motor power(kw)345.57.57.51111Motor speed(rpm)1500150015001500150015001500Center height(mm)1000100010001000100010001000Overall dimension (LxWxH)1450x720x15001500x720x15001800x1000x16002500x1150x16502750x1150x17003100x1150x17003450x1200x1750ModelType 2500Type 3200Type 4000Type 5000Type 6000Type 10000Type 15000Cable through the outer diameter(mm)20~13025~15030~18050~20060~20080~30080~300Max. traction force(kg)250032004000500060001000015000Speed(m/min)60454030252520Track contact length(mm)2400270029003250360048005000Track width(mm)140145165165170240180x2articale/90x2articaleNumber of cylinder(pair)89910111414+14Motor power(kw)151518.522303755Motor speed(rpm)1500150015001500150015001500Center height(mm)1000100010001000100010001000Overall dimension (LxWxH)3800x1200x17504500x1280x18204600x1300x19005000x1350x19505350x1400x19507400x1630x21007500x2800x2200
Electric Cable Sheath Extrusion Machine, Power Cable Insulation and Sheathing%
Pay-off & take-up
A.Equipment Application:
Mainly used for winding various signal cables and optical cables.

B.Structure Characteristics:


1.The mechanism is made of high-quality rectangular steel pipe and steel plate. The beam adopts two large I-beam interconnection structures, which are beautiful in appearance, good in steel and high in strength.
2.Adopts the way of walking beam, the whole cable tray for wiring,implementation of pay-off and take-off.
3.The cable adopts the AC variable frequency motor to adjust the speed line, with high precision and uniform cable.
4.PLC programmable controller can be controlled with various types of hosts.
5.Take-up primary motor
Line the main motor adopts DC motor,controller for European series products.
Line the main motor adopts frequency conversion motor,controller for Siemens or Danfoss products.


4.Company
We are specialized in manufacturer extrusion products. It has professional and independent research and development center, products are widely used in optical fiber cable, wire and cable industry, cable rope industry, etc.
Electric Cable Sheath Extrusion Machine, Power Cable Insulation and Sheathing%

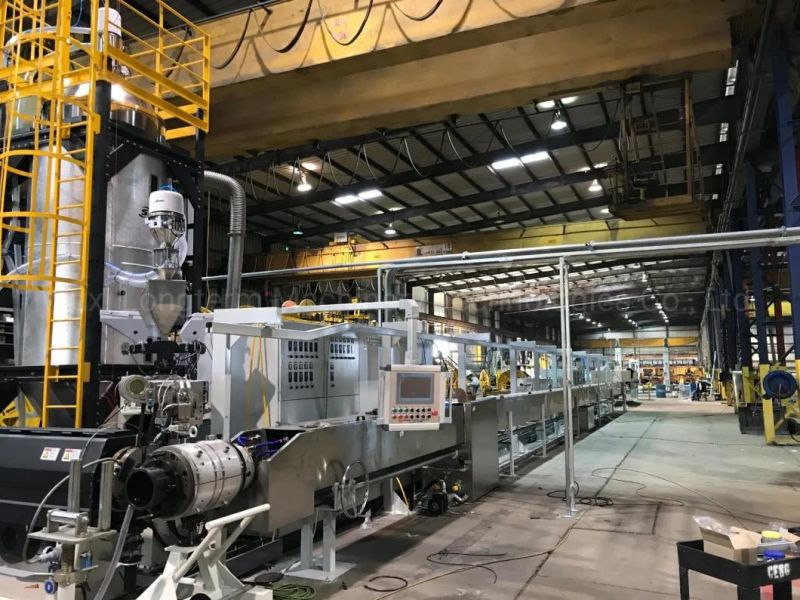

5.Successful case
Electric Cable Sheath Extrusion Machine, Power Cable Insulation and Sheathing%
Electric Cable Sheath Extrusion Machine, Power Cable Insulation and Sheathing%

6. To give you an accurate quotation, please kindly inform us the following information:
 1. How many kgs/meters to extrusion per hour?
 2. Reel/Flange Diameter, we need to quote correct take-up and pay off machine
 3..Could you please send us your cable structure like below picture?
 4.Extrusion material, I mean cable sheath material? Cable sheath thickness
 5.Cable size
 6.Cable pulling speed
