Automatic Cable Wire Measuring Cutting Binding Tying Spool Coil Winding Machine
Sinrad Technology Co., Ltd.- Voltage：220V
- Length of Cable Tie：80kg
- Applicable Cable Diameter：Less Than 10mm
- Winding Diameter：Adjustable
- Counting Meter：Adjustable (1-30 Meters)
- Binding Wire Coil Number：Adjustable (Suggest 3 Circles)
Base Info
- Model NO.：SR-C1100
- Winding Speed：1-13 Circles,Second
- Typing Speeding：0.6 Second,PC
- Safeguard：Fuse, Fault Equipment Alarm Shutdown Function
- Automatic：Semi-Automatic
- Transport Package：Carton
- Specification：830X300X550mm
- Trademark：Sinrad
- Origin：China
- HS Code：8479899990
- Production Capacity：100 Sets,Month
Description
1, Automatic winding machine is suitable for winding data line, security wire, power cable and so on.
2, The winding shape can be circle and 8 shape.
3, The speed and count can be set.
4, This machine is simple operation, widly used, the best choice for wire harness processing.
1. The wire feeding mechanism uses: LR4GN18K motor set
2. Folding and cutting mechanism: LR2GN10K motor set
3. The twisting wire mechanism adopts: a set of stepping motor
4. The winding mechanism adopts: a set of stepping motors (110 stepping)
5. The control system uses: PLC + touch screen (maintenance control)
6. Sliding rail adopts: Japan NSK
7.A set of self-made racks and cases
8.Two sets of relays and one set of Omron sensors
9. A set of power transformer power supply system
10. The meter counting mechanism adopts the principle of pulling a rotary encoder
11. The wiring mechanism adopts: reciprocating row rack

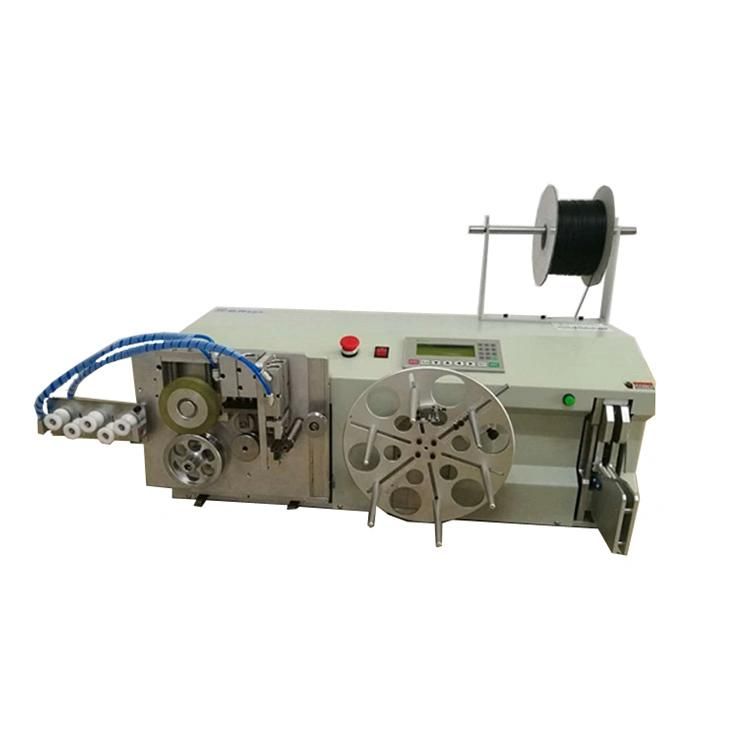

Desktop Automatic Wire Cutting Meter Counting Winding Tying Machine

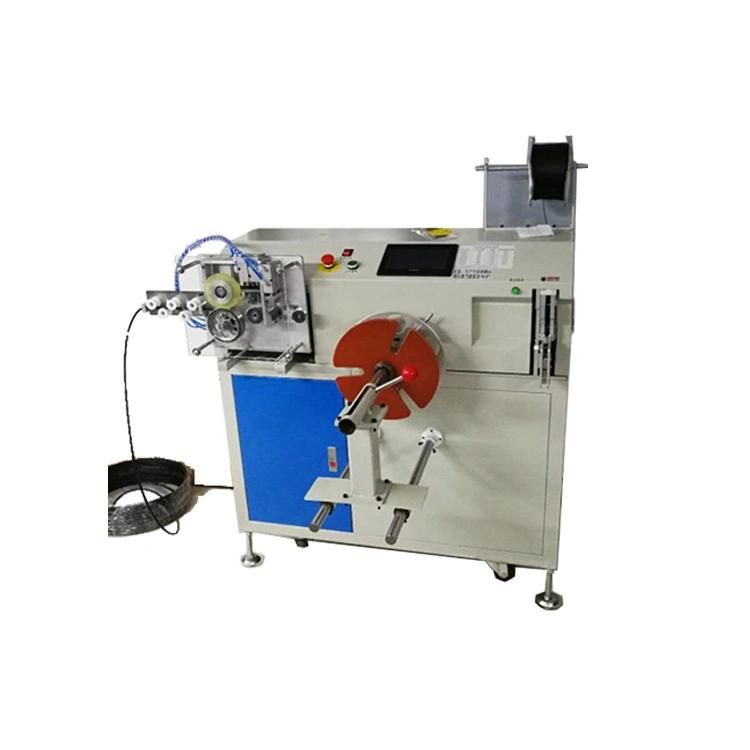

Floor-standing Automatic Wire Cutting Meter Counting Winding Tying Machine With Sorting Function
1 Price terms
The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.
2 Can I send samples to check the machine quality.
Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.
3 How to learn the machine?
1) Offer free technology learning support in our factory
2) Provide detail user manual with detail video illustration
3) Support engineer service at site if clients asking for
4 How about the lead time and delivery time of order?
Standard model, can be ship out within 3~7days after confirmed order and deposit.
Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
