• Model NO.：WL-CP01
• Stripping Length：0.1-15mm on One End
• Cutting Lenght：45-99999mm
• Productivity：4000PCS,Hour
• Air Pressure：0.4-0.6MPa
• Cutting Wire Accuracy：0.01*Lmm (L =Cutting Length )
• Transport Package：Wooden Carton
• Specification：1600*900*750mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-CP01 Stripping Length 0.1-15mm on One End Cutting Lenght 45-99999mm Productivity 4000PCS/Hour Air Pressure 0.4-0.6MPa Cutting Wire Accuracy 0.01*Lmm (L =Cutting Length ) Transport Package Wooden Carton Specification 1600*900*750mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

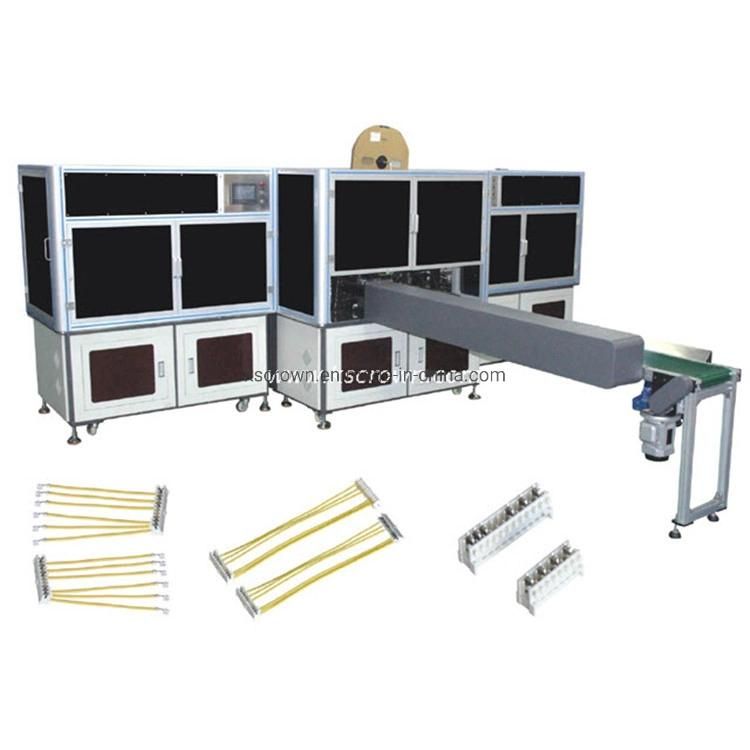

 Fully Automatic Double Head IDC connector Piercing Terminal Crimping Housing Connector Inserting Machine



This fully automatic housing IDC connector piercing crimping machine is designed for crimping the wires to IDC piercing terminals/connectors like JST SUR housing connectors. It is widely used in automotive industry, new energy industry, PCB board industry, medical industry, unmanned aerial vehicles industry, communications industry, home appliances industry, etc.



Specifications:

Model	WL-CP012
Power supply	AC200V 50/60Hz, 2500W
Crimping force	2.0T
Production efficiency	about 600 cycles (different products will have different crimping numbers at a time)
Wire processing length	600mm-2500mm
Stripping length	0-10mm
Stripping accuracy	0.01mm
Cutting accuracy	0.01mm
Air pressure	4-7Kgf (need to use clean and dry air)
Detection device	detection of wire presence, terminal presence detection, air pressure detection, terminal pressure detection
Number of Pins	2Pin-11Pin
Pin distance	2.5mm
Dimensions	L4500×W4000×H1700mm
Weight	about 1200KG

Detail image:




Machine function: front end: stripping, terminal crimping, piercing; rear end: piercing (support positive and negative piercing)
Applicable connector: IDC type piercing terminal/connector, 2Pin-11Pin
Widely used in automotive industry, new energy industry, PCB board industry, medical industry, unmanned aerial vehicles industry, communications industry, home appliances industry, etc.

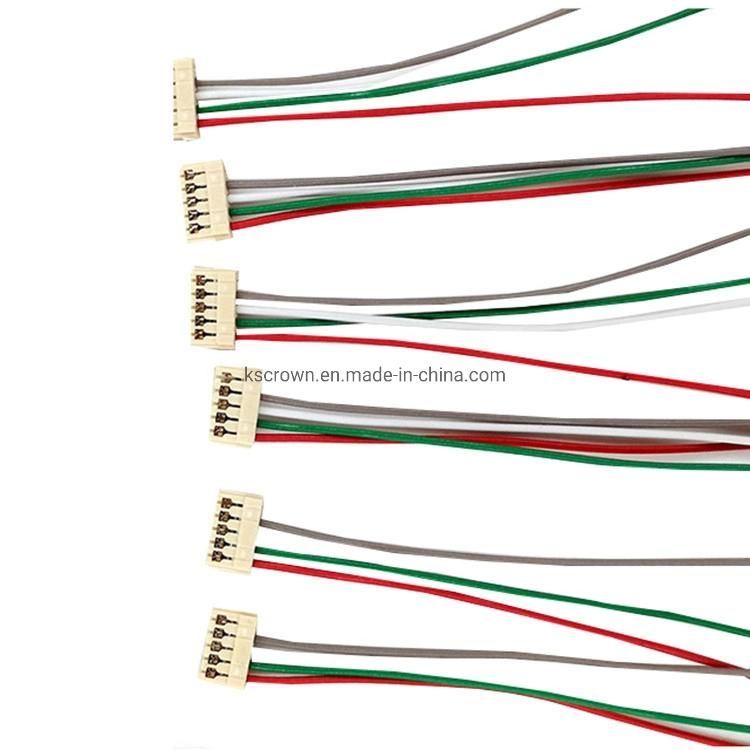

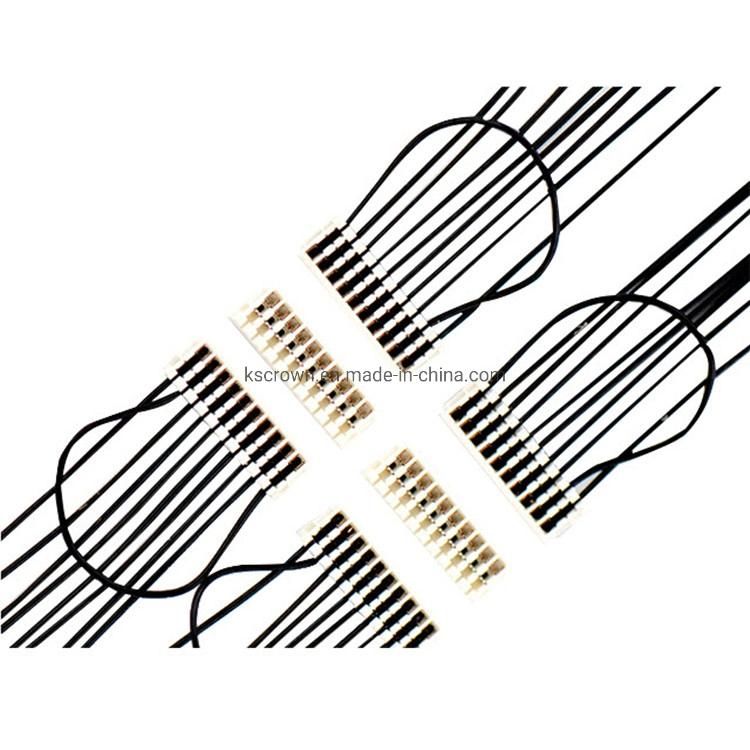

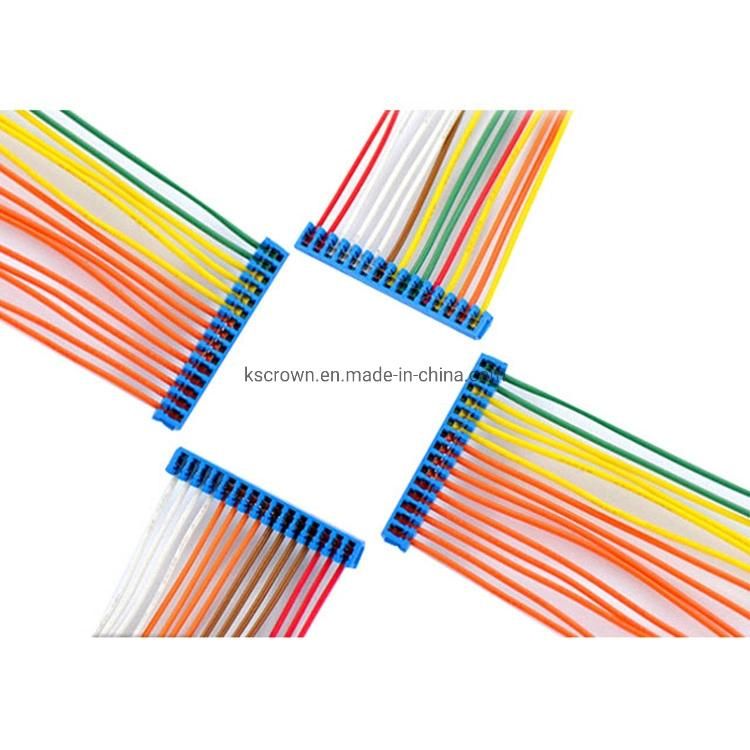

Finished products of this machine below:

Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

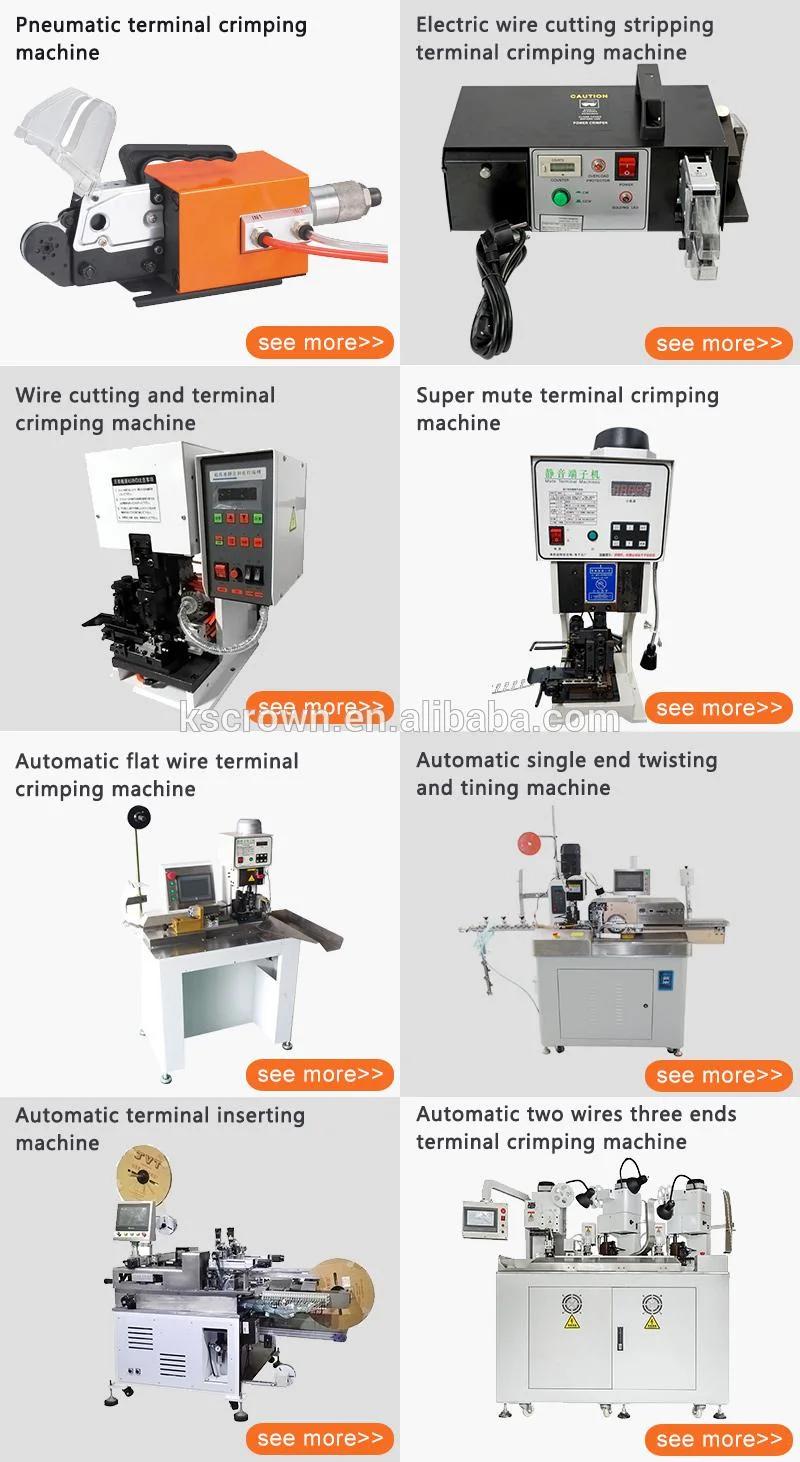

ALso there are many models for your reference.

You may also like

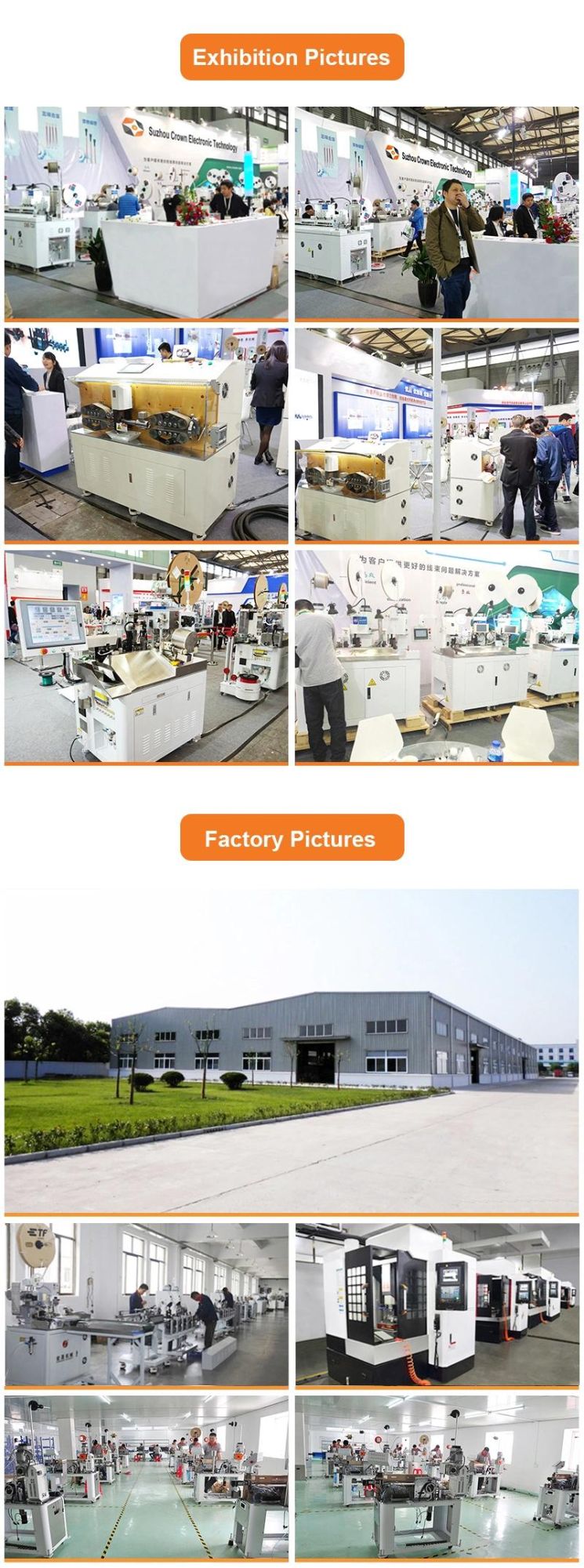

Company Information
