• Model NO.：GEM-OFADDS
• Origin：Dongguan
• HS Code：8479400000
• Production Capacity：5 Sets,Month

GEM YOUNG R&D TEAMNamePositionworking experienceMain research successful projectzanyang XieGeneral engineer10 yearsDrawing and designerpower cable machinexiaohua HuVice general engineer8 yearsDesignercate5 cable machinejingxin Liucable technology engineer15 yearscable making designerteflon cable machineweihua Lielectrical engineer7 yearselectrical researchover seas machine installkangyou Wuproduce manager6 yearsproduct producecar cable machineJacksells manager5 yearsexport service 3 times overseas after service
-Specifications
1,aluminum-plastic belt sheath
2,tube bundling type optic-fiber cable
3,machine for optical fiber
4,ADSS fiber line

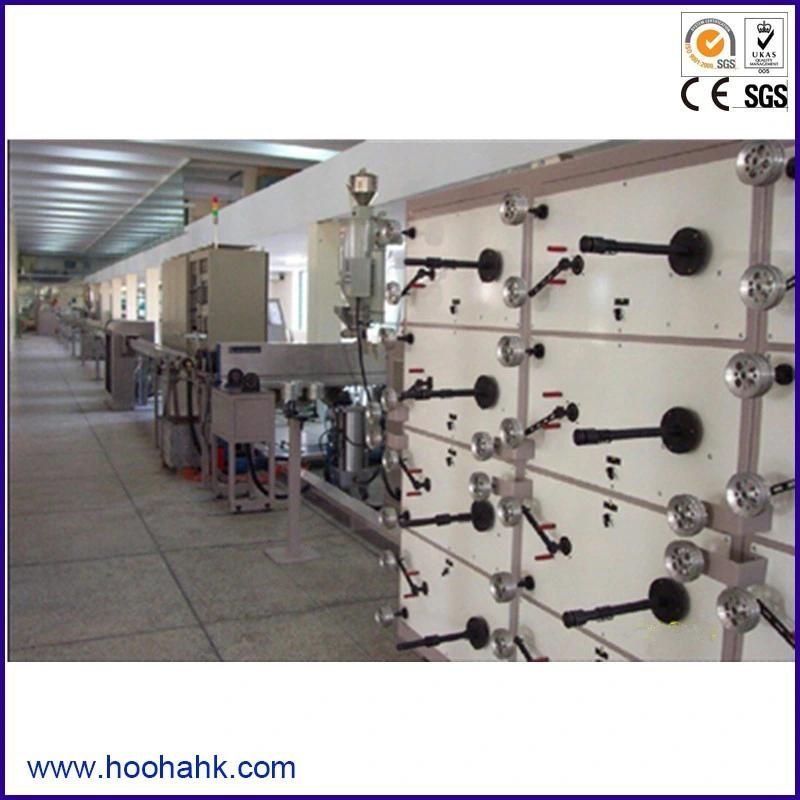

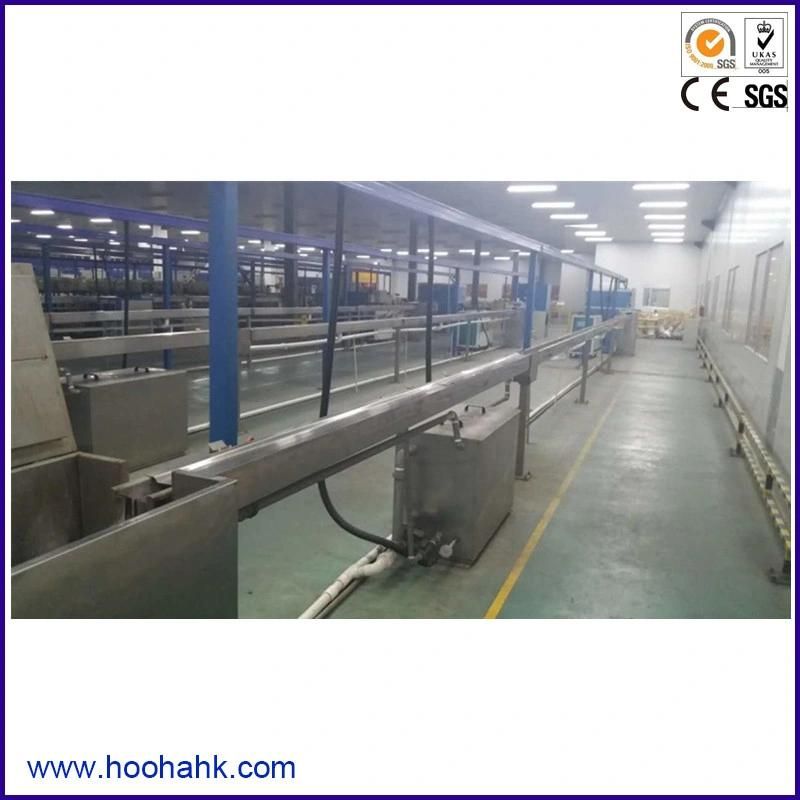

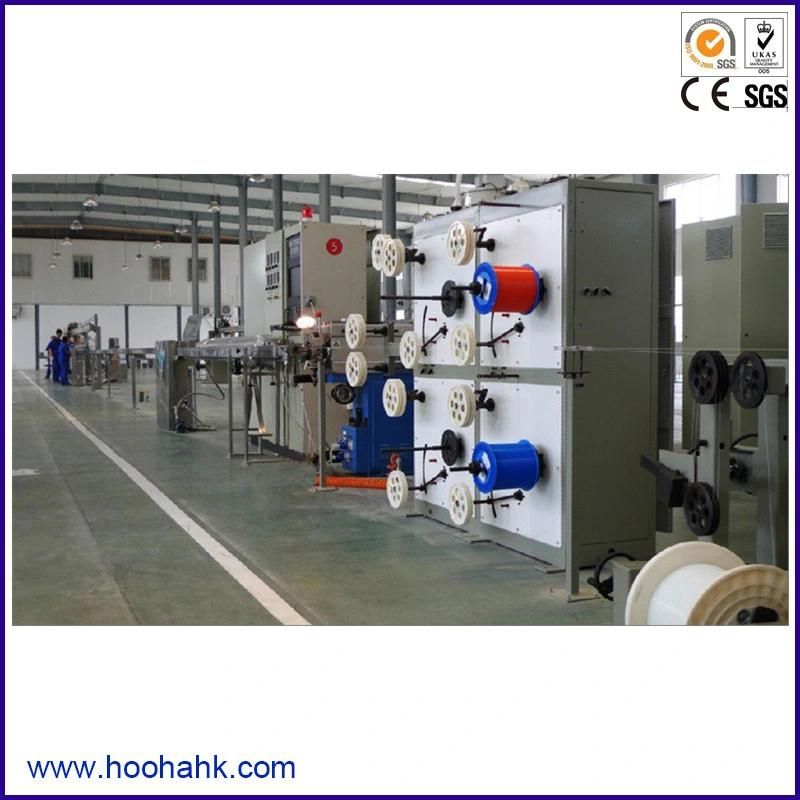

A, ADSS fiber production line  Equipment application :
1,the cable machinery is Suitable for optical cable outer sheath and core strengthening comprehensive production, can also be used for inner protection layer production
2,PE inner sheath,aluminum-plastic compound belt and PE inner sheath.
3,PE outer sheath,aluminum-plastic compound belt,PE composite outer sheath,steel-  plastic compound belt,PE composite outer sheath.
4,Parallel double steel wire tube bundling type optic-fibet cable.

B,Features:
1,main electric parts  are importing,screw adopt the modern latest technology,Gear tooth surface abrasion resistance.
2,Low energy consumption of the equipment,a large quantity of extrusion, high production efficiency, high gloss surface,small temperature difference,low noise, good stability, strong continuity of working, convenient operation, long service life.

C,Technical parameters of ADSS fiber production line :Extrusion materialLDPE,MDPE,HDPE,PA12Max extrusion output250Kg/h(PE)Extrusion outer diameterØ5-Ø35mmProduction speedmax.60m/minPay-off reel specificationPN1000-PN1800mmTake-up rell specificationPN1000-PN2000mmCenter height of production line1000mm

D,Our  main products
Optical fiber cable equipment series:
1. Optical fiber high speed coloring and rewinding machine;
2. FTTH terminal optical fiber drop cable production line;
3. Tight buffered fiber production line;
4.Soft optical cable(jump wire) production line;
5. Optical fiber secondary coating production line;
6. SZ stranding machine;
7. Aramid yarn stranding machine;
8. Optical fiber sheath and ADSS fiber production line;
9. Outside device and Auxiliary machinery

E.Electric Wire and Cable equipment series:
1.25~150mm extruding machine (extruder);
 2. 250~630mm high speed twisting machine(bunching machine);
 3. 630~1000mm Hanging framed type single stranding machine;
 4. 630~1250mm Cantilever type single stranding machine;
 5. 400~1250mm high speed double twisting machine;
 6. High speed cutting machine;
 7. High spooler back twist;
 8. Single-layer,Double-layer,Triple-layer wrapping machine;
 9.Small/Middle/large cross-section automatic traverse coiling machine;
10. Outside device and Auxiliary machinery

F.GEM Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF

G.Afetr service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

K.Contact information:



Http//:hoohaco.en.made-in-china.com
http://hoohaco.en.made-in-china.com/
Add:No. Beice District, Humen Town,
Dongguan  City, Guangdong Province,China

L.Where are we:
Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
