Core Cable Wire Coiling Winding Cutting Twisting Extrusion Bunching Buncher Extruder Coiling Machine

Kunshan Fuchuan Electrical and Mechanical Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Mould Life：>1,000,000 Shots

Base Info

  • Model NO.：FC-630
  • Type：High-speed Stranding Machine
  • Color：Sky Blue or Apple Green
  • Usage：Core Wire Pay off 1.5-4.0mm
  • Bobbin Size：630*56*475,630*127*475
  • Shaft：Shaftless
  • Transport Package：Common
  • Specification：ISO9001
  • Trademark：FC
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：500PCS,Month

Description

Basic Info.

Model NO. FC-630 Type High-speed Stranding Machine Color Sky Blue or Apple Green Usage Core Wire Pay off 1.5-4.0mm Bobbin Size 630*56*475/630*127*475 Shaft Shaftless Transport Package Common Specification ISO9001 Trademark FC Origin China HS Code 8479811000 Production Capacity 500PCS/Month

Product Description

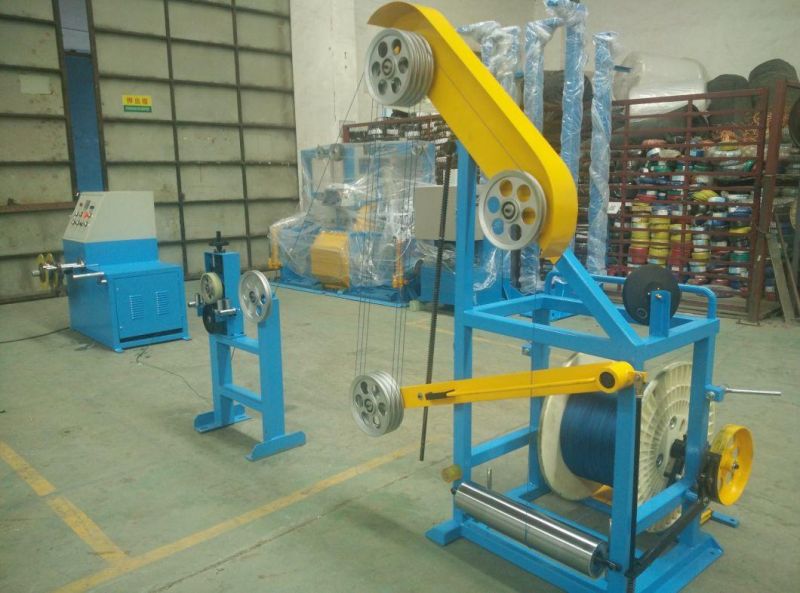

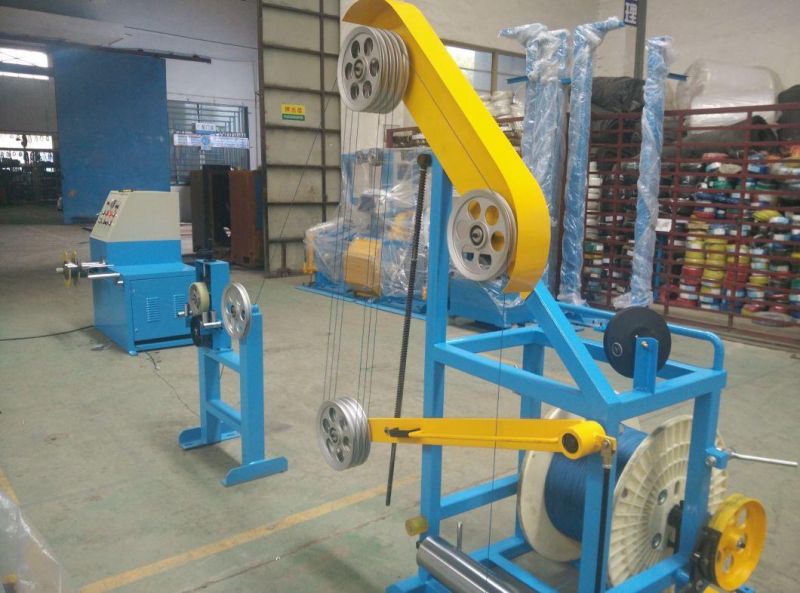

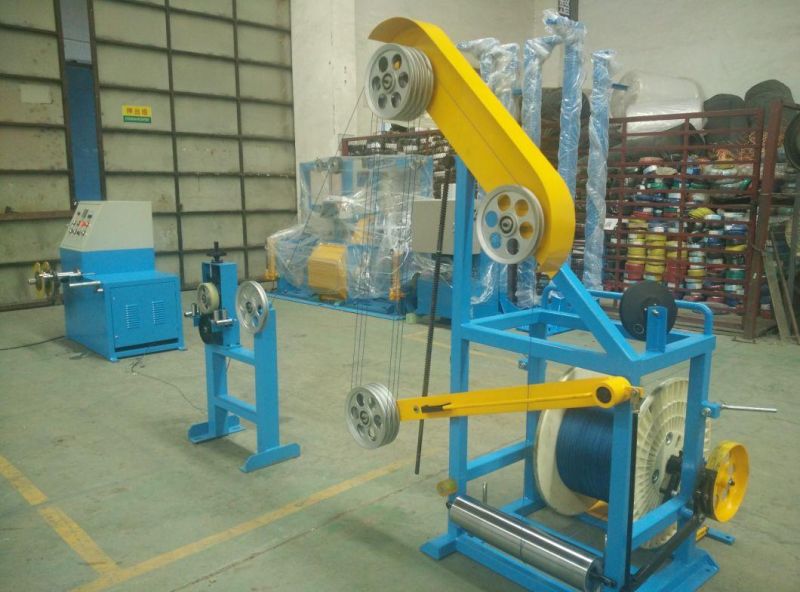

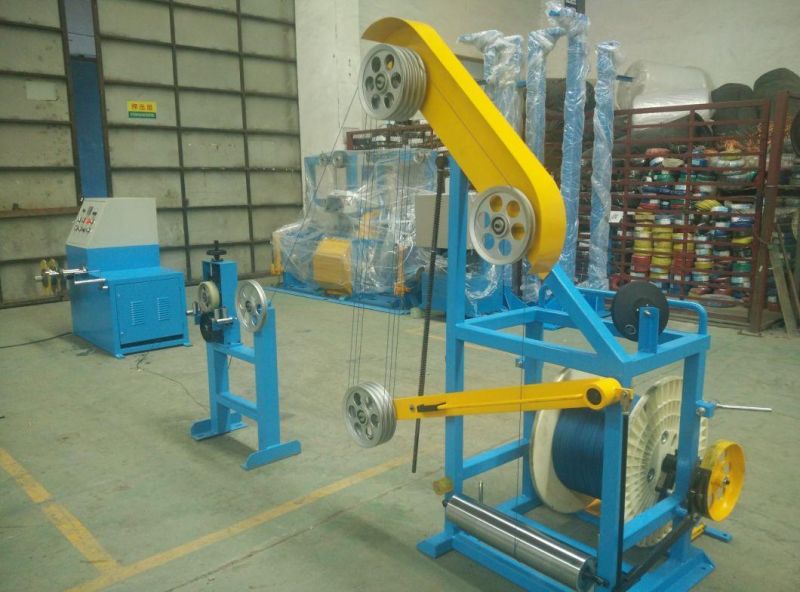

FC-630 shaftless coiling machine

Parameters of FC-630automatic coiling machine:
   A.FC-630passive tension pay off
 1)Fit for bobbin:φ500*φ56*475,fixed holeφ16 PCD142
 2) Fit for wire:Maxφ1mm---φ6mm
 3) Fit for speed:Max300m/min
 4) Tension control:mechanical tension,tension can adjustable
B.Meter counter
  1)Type:single way break
  2) Meter counter wheel:φ159
  3)500mm/r

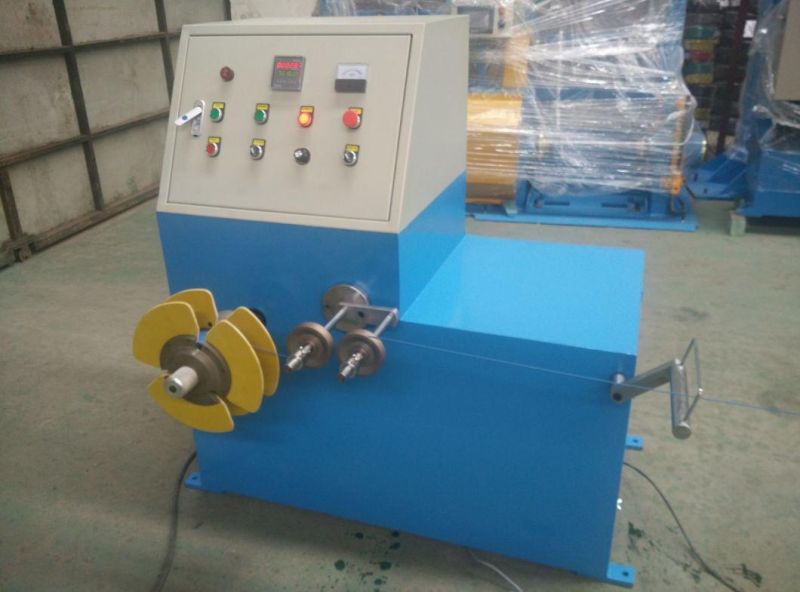

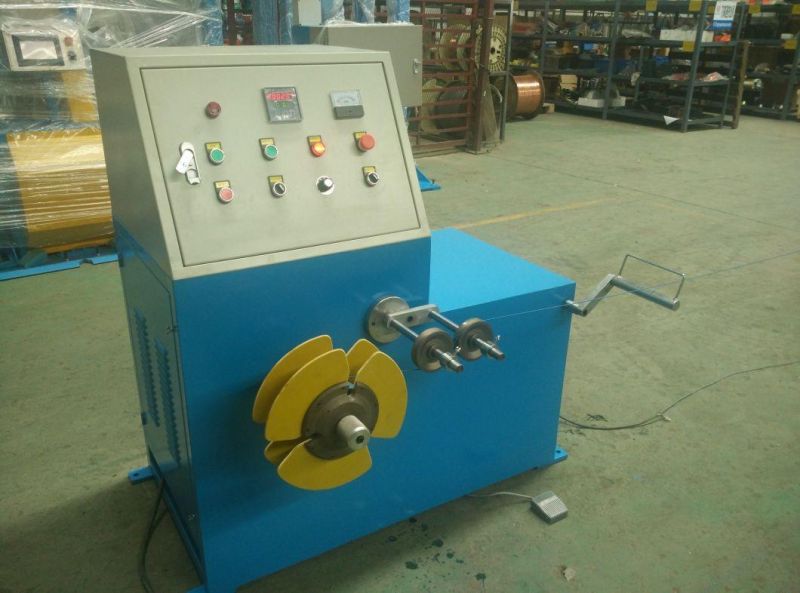

C.Little wire coiling(mainly produce BV wire)
 1.Type:single shaft take up,slot
 2.Motive:3HP motor
 3.Traverse:automatic winding wire
 4.Max speed 300m/min
 5.Slot internal diaφ120*φ300*(50-100adjustable)
Core Cable Wire Coiling Winding Cutting Twisting Extrusion Bunching Buncher Extruder Coiling Machine
Core Cable Wire Coiling Winding Cutting Twisting Extrusion Bunching Buncher Extruder Coiling Machine
Core Cable Wire Coiling Winding Cutting Twisting Extrusion Bunching Buncher Extruder Coiling Machine
Core Cable Wire Coiling Winding Cutting Twisting Extrusion Bunching Buncher Extruder Coiling Machine
Core Cable Wire Coiling Winding Cutting Twisting Extrusion Bunching Buncher Extruder Coiling Machine
Core Cable Wire Coiling Winding Cutting Twisting Extrusion Bunching Buncher Extruder Coiling Machine

For more details, please feel free to contact me.
