• Model NO.：WL-ZW16
• Maximum Stripping Length：47mm
• Cutting Depth Unit：0.01mm
• Max. Stripping Layers：9 Layers
• Weight：24kg
• Power Supply：110V,220V,50Hz
• Transport Package：Wooden Case Package
• Specification：600x185x280 mm
• Trademark：Dimension
• Origin：Kunshan City
• HS Code：8479811000
• Production Capacity：10000

Basic Info.

Model NO. WL-ZW16 Maximum Stripping Length 47mm Cutting Depth Unit 0.01mm Max. Stripping Layers 9 Layers Weight 24kg Power Supply 110V/220V/50Hz Transport Package Wooden Case Package Specification 600x185x280 mm Trademark Dimension Origin Kunshan City HS Code 8479811000 Production Capacity 10000

Product Description

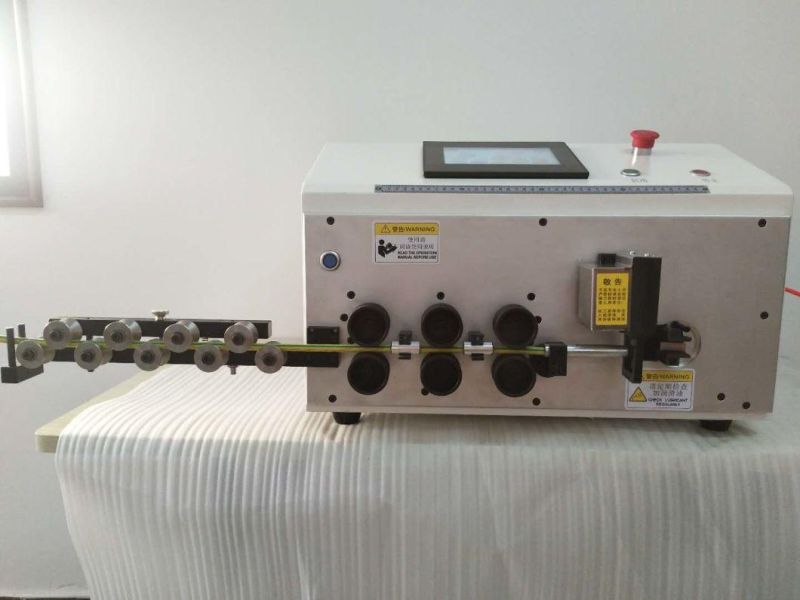

Semi automatic cable wire stripping wire cable stripper machine

Product Description:

The WL-BNX2 main functions: full-automatic one core wire cutting, two heads stripping and two heads twisting, conductor cross-section 0.1-4.5mm².
1. Fully automatic cutting, stripping and twisting, high cost performance
2. Adopts LCD screen dialogue mode, simple operation and maintenance, stable performance
3. Integrated electromechanical, microcomputer, work fast speed and high precision 4. Length can be set in a large range
5. Simple operation and convenient maintenance
Features:
1.  Chinese and English switching display
2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.
4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Specification:

Model	WL-ZW16
Type	Wire stripping cutting bending machine
Input Voltage	AC220/ 50HZ
Power	650W
Display method	English/Chinese LCD
Cutting Length	1mm~100mm
Stripping length	Head 0.1-20mm,                     Tail 0.1-20mm
Cutting Tolerances	± (0.001xL)mm
Stripping Length	1-16mm2
Feed roller size	Dia 10mm
Applicable wire	PVC, teflong, glass wire etc
Tool material	hard tungsten steel
Stripping speed	2000-3000pcs/H (L=100mm)
Drive method	two-wheel drive





Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

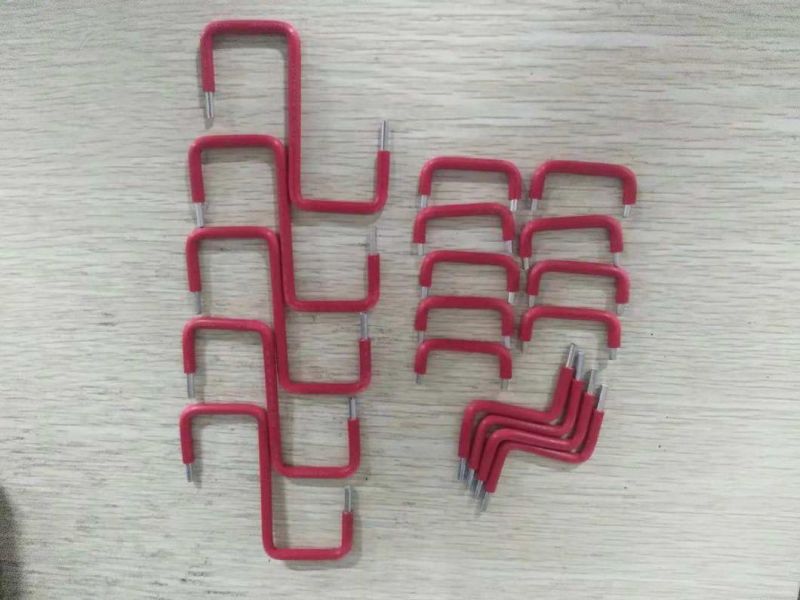

Sample: cut and strip wire automatically

Application
