• Model NO.：KDEQ-01-520
• Specification：size: 11000mm*800mm*1500mm
• Trademark：Kiande
• Origin：Suzhou, China
• HS Code：847740900
• Production Capacity：100set,Month

Dynamic power:three phase 380V±10%,50Hz(can be customized)Air pressure:0.6MpaEnvironmental condition:humidity 60%Temperature:-10ºC~40ºCShaped width after being formed:30mm~250mmChannelsone channel or two channels
Advantages of digital polyester film machine:
1) Adopt the heater for heating procedure: Power: 6kW. The max temperature of outgoing position is ≤350°. Temperature can be adjusted.
2) The mold's width can be adjusted. No sharp angle or other defects after formed.

Configurations:Touch screenReducer motorElectrical partsPLC


We are the company specialized in busbar machine.Busbar machine means busbar production machine or busbar processing machine including mylar sleeve forming machine, busbar assembly machine, busbar riveting machine, busbar testing & inspection machine, busbar packing machine and busbar conveying machine. If you want to know how we use the machine to assemble the busbar, please kindly get the referenced pictures as below.

Step 1 Prepare all busbar finished components

Step 2 Use related busbar machines to process the busbar

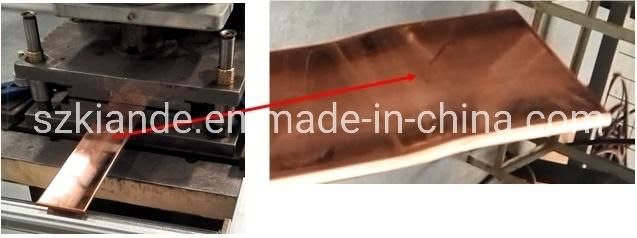

Busbar machine copper processing
Need Kiande's busbar gas-hydraulic copper bar punching machine(This is one-time punching forming. In the market, some busbar manufacturer buys three-in-one busbar machine to bend and punch copper or aluminum bar. As the bar experiences many procedures, the accuracy is not good which will cause the phase distance too small to cause the short circuit.)

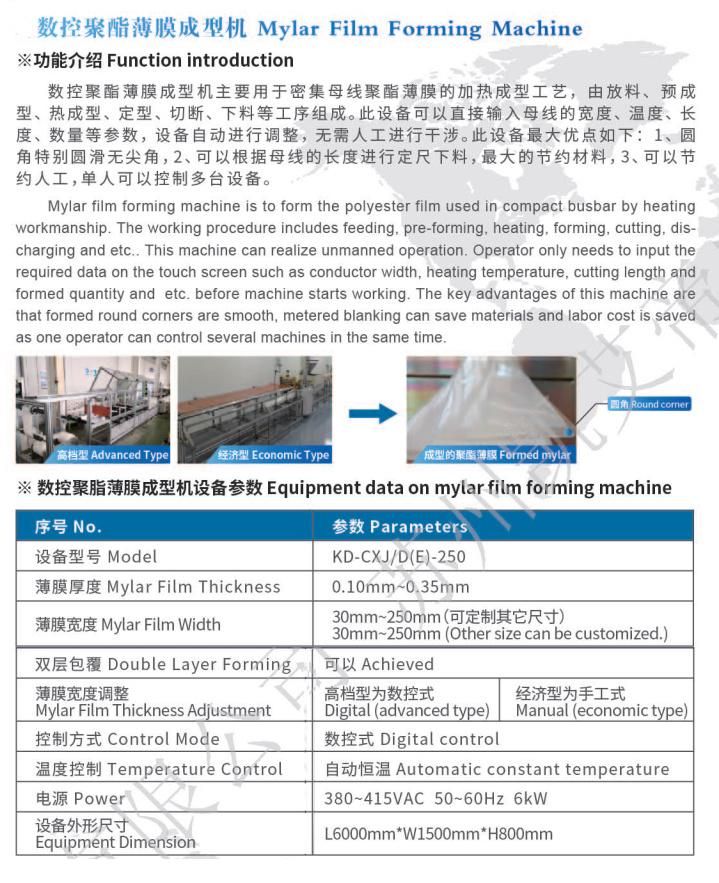

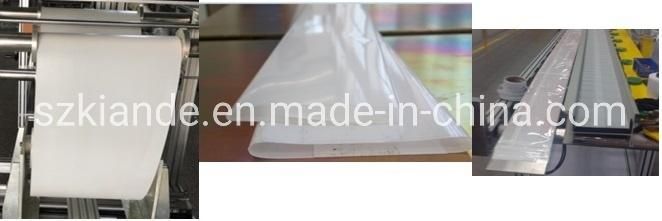

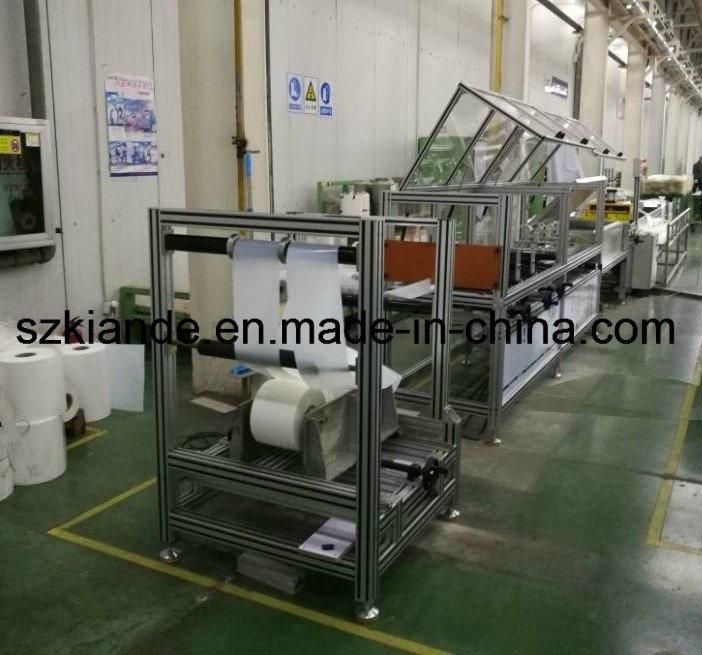

Busbar machine mylar sleeve processing machine polyester film forming machine
Need Kiande's mylar/polyester film forming machine. In the market, some busbar manufacturer requests workers to wrap the bar manually. Different workers have different workmanship. If employer meets the inexperienced workers, the wrapping part will have some gaps which will cause the short circuit.

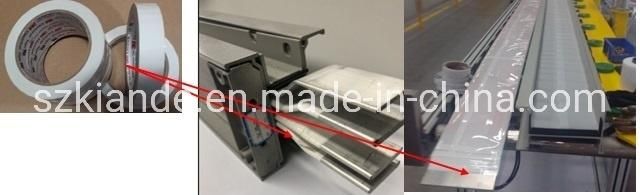

Busbar machine busbar accessory 3M insulation film Conductor(Copper bar/Aluminum bar) end wrapping

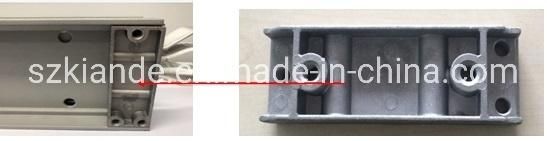

Busbar machine busbar accessory Aluminum profile capped casting capped end

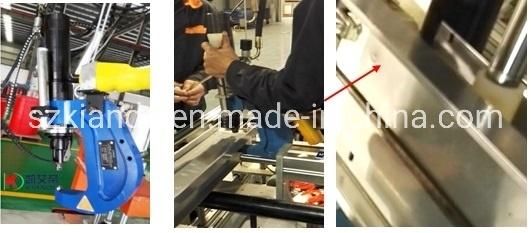

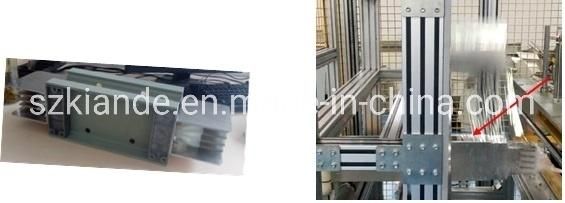

Busbar machine Busbar riveting machine

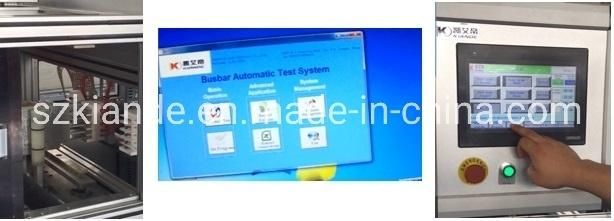

Busbar machine busbar inspection machine busbar testing machine




Busbar machine busbar packing machine busbar packaging machine



Busbar machine busbar accessory rivet the rivet is to connect the profiles instead of bolts more stable and strengthen

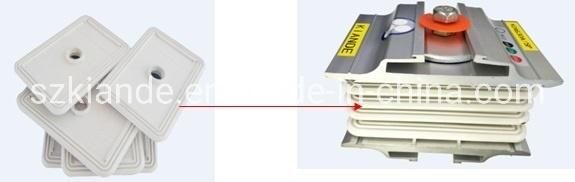

Busbar machine busbar accessory joint isolator
