• Model NO.：WG-9001D
• Power Consumption：Min.20W-Max.380W
• Funtaion：Stripping & Crimping
• Air Pressure：0.3~0.4 MPa
• Wire Diameter：0.8-2.0mm(0.81,1.13,1.37,1.37,178)
• Strip Length：1.0-5.0 mm
• Crimp Stroke：50mm
• Crimp Force：2.0 T
• Transport Package：Wooden Case
• Specification：3800*1100*1950mm
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-9001D Power Consumption Min.20W-Max.380W Funtaion Stripping & Crimping Air Pressure 0.3~0.4 MPa Wire Diameter 0.8-2.0mm(0.81/1.13/1.37/1.37/178) Strip Length 1.0-5.0 mm Crimp Stroke 50mm Crimp Force 2.0 T Transport Package Wooden Case Specification 3800*1100*1950mm Trademark wingud Origin China Production Capacity 120/Month

Product Description

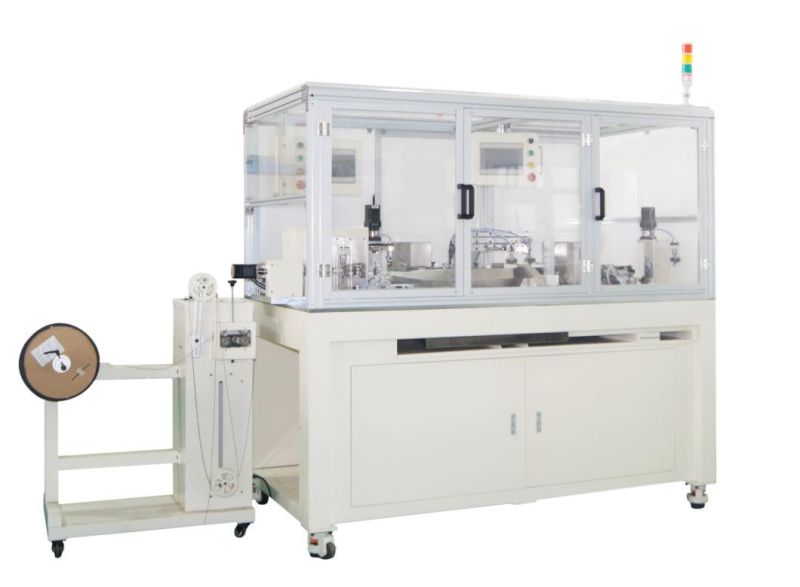

          WG-9001D  Automatic Double-end Stripping and Tinning Machine

Functional characteristics:

• Mainly used for large square multi-core wire, multi-layer wire and other wire harness processing
• Double rotating blades head design for simultaneous stripping of both ends of the thread
• Can stripping different specifications of the wire processing without replace the blades.
• 100 set data storage, reservation of multiple external ports for easy signal transmission
• High performance and short setup times
• Simple operation with state-of-the-art software and touchscreen
• Easy network integration
• Wide range of options and accessories available

Technical Parameters:

     •  Application range 0.8-2.0mm
    •  Processing length 49-999mm
    •  Cutting precision ±0.25mm
    •  Stripping precision ±0.1mm
    •  Single cycle time 3.2S/PCS Every 100mm increases 0.1S
    •  Product pass rate 99.6%
    •  Power supply220V 50/60Hz
    •  Weight1050kg
    •  Dimensions3800*1100*1950mm
