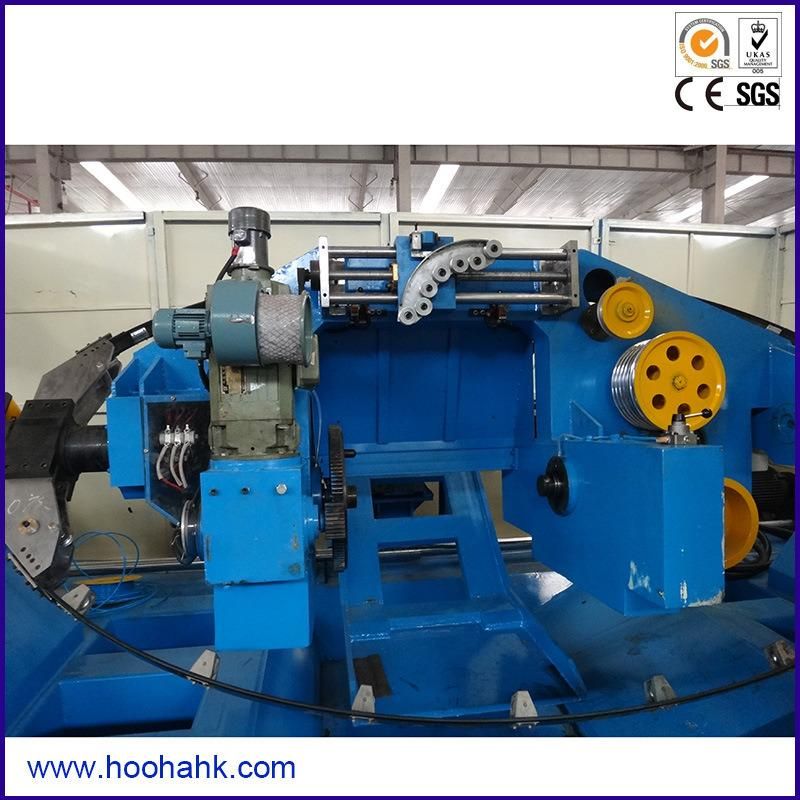

• Model NO.：HH-1000,1250mm
• Type：Single Stranding Machine
• Usage：Wire Twisting
• Bearing Lubricative Type：Oiling Regularly
• Noise Level：80dB
• Cooper Wire Individual：1.5~4.8
• Voltage：380V 50Hz
• Electric Element：Siemens and Omron
• Weight：12500kg
• Model Number：Hh-90,100,110,120,150,180,200mm
• Transport Package：Plastic Packing
• Specification：CE ISO
• Trademark：HOOHA
• Origin：Dongguan China
• HS Code：8479400000
• Production Capacity：10 Sets,Month

Machine typeHOOHA -φ1250DWire product of standSpecial use twist aluminum and copper round press dowm the conductorCooper wire individualΦ1.5-4.8Finish standed wire/max.10 mm φ/maxFinish standed wire/Max.15mm φ/maxSection of strand-twisting(Flexible strand)3.5÷70mm2(6AWG÷450MCM)Section of strand-twisting(Semi-frametwisting1+6)3.5÷50mm2(6÷1/0AWG)Section of compaction Cu3.5÷50mm2(6AWG÷300MCM)Section of compaction Al3.5÷70mm2(6AWG÷301MCM)Line speed/Max.150mpm/maxStand pitch(mm)40-350mm608000rpm/max.(1600TPM)Load weight/Max.3000KGMax.compaction angle13%Traction pulley2×φ600mmStanding DirectionS,Z DirectionMain motor(DC/AC/HP)55kw D.C. motorDrive of Capstan(DC/AC/HP)30kw D.C. motorDrive of take-up unit(DC/AC/HP)7.5kw D.C. motorDrive of traverser0.75kw Inverter motorDrive of liading&unloading1.5kw Inverter motorPower controlDigital type DC controlRevise systemLine speed synchronous auto controlSpool bobbin size ODOD:φ1250 mm/MaxSpooler size OW950×800×80(mm)Control systemPLC man-machine interfaceTension controlCoiling motor indicates tension controlLay stranding pitchPLC digitization settingOperating directionLeft/ right hand machineTraversing width1000mm/MaxTraversing unitWire diameter setting by digital typeTake-up typeReel taken between pneumatic pintlesReel loading & unloadingLiquefaction automatic positioningBrake systemDisc brakeBearing lubricative typeOiling regularlyAir pressure6kg/cm2Vogtage380V 50HzNoise level80dbMachine size(L)6030×(W)2280×(H)2280mmWeight12500kg


HOOHA Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF


After Service:

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.

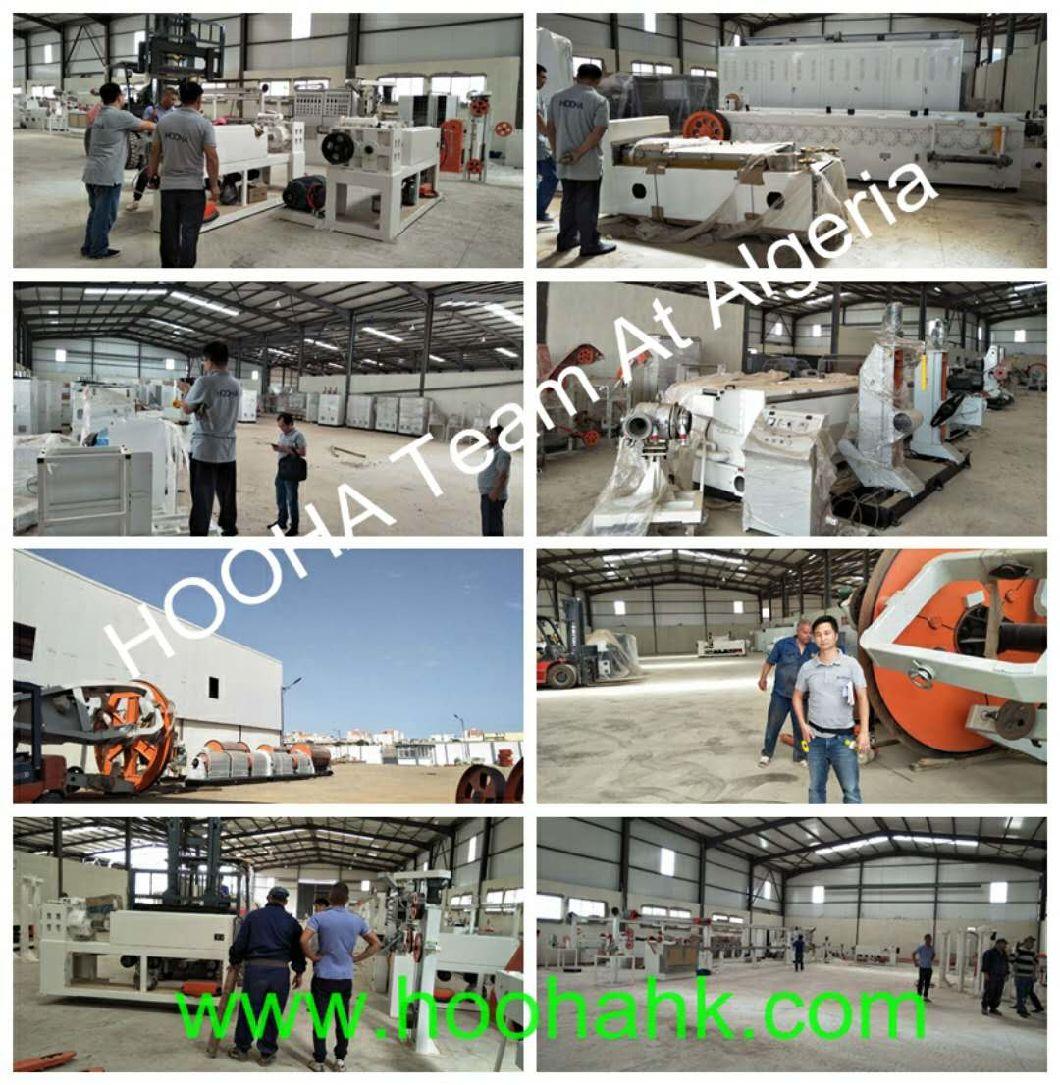

4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

Contact Information:

Facebook: https://hoohaco.en.made-in-china.com
Http:hoohaco.en.made-in-china.com
http:hoohaco.en.made-in-china.com
Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan  City, Guangdong Province,China

If the machine is not suitable for your wire spec., please contact me.


Why Choose Us?

1.We are the cable equipment manufacturer.
2.Professional engineer,long term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like Siemens ,Omron,NSK,LG etc.
5.Install and training service.Guarantee overseas install and cable manufacture training experience.
6.Technical support and spare parts service.



Professional and Strong Manufacture and Sales Team:
