Desktop Wave Soldering Machine/Mini Type Wave Soldering

Termway (Beijing) Precision Technology Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • Warranty:24 Months
  • Automatic Grade:Automatic
  • Installation:Desktop
  • PCB Width (L× W)(Mm):Max: 200*270mm

Base Info

  • Model NO.:TB680
  • Spray Work Mode:Froth
  • Packing Size:90*60*46cm
  • Transport Package:Wooden Case
  • Specification:90*60*46cm
  • Trademark:Torch
  • Origin:Beijing
  • HS Code:8515800090
  • Production Capacity:10set,Month


Basic Info.

Model NO. TB680 Spray Work Mode Froth Packing Size 90*60*46cm Transport Package Wooden Case Specification 90*60*46cm Trademark Torch Origin Beijing HS Code 8515800090 Production Capacity 10set/Month

Product Description

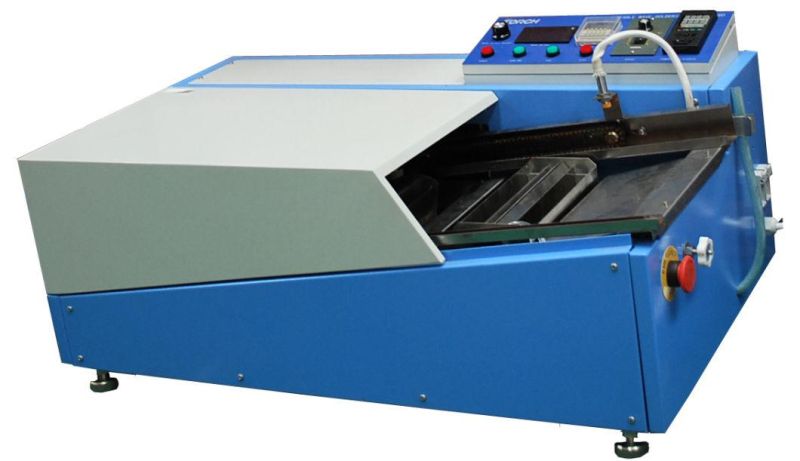

                                                               Desktop Wave Soldering Machine/Mini Type Wave Soldering

Desktop Wave Soldering Machine/Mini Type Wave Soldering

TB680 has been developed by Torch, aiming at the practical status of the current soldering technology inland. It occupies the vacancy of the small automatic wave soldering inland. It adapts to the research and production in research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. The whole machine is a desk-type. The reasonable frame takes up little room. It has complete functions and it is cheap, however energy-saving with high efficiency. Besides TB680 is easy to operate and reliable in soldering so that it could be widely used, especially suitable for small and middle amount of production. TB680 could be the best device to replace the soldering iron by hand and the dip-soldering with tin pan.

Compared with bigger ones, TB680consumes less energy. Quickly tin melting, easy to operate, simple to repair as well as maintain, automatic self-protection.



1.High agility: it is convenient for TB680 to control every soldering technical parameter and a high quality could be ensured.
2. Digital display of soldering temperature.
3. High reliability: high temperature sintering heating element make the machine perform steady and reliable.
4. Widely used: TB680 can replace brand iron soldering and soldering device in middle and little batch of production. It can satisfy every requirement of soldering production.
5. High efficiency: Productivity would be advanced.
6. Reasonable price, long life
7.Small size and power consumption. It meets the requirements for the production in the laboratory and factory.


The max power consumption3Kw
Solder pot capacity37Kg
PCB width (L×W)(mm)200 X 270mm (Max)
Temperature range200~300
Preheating temperature90~130
Wave height adjust range5~ 10mm
Melt time60min
Spray work modefroth
Power supply220v 50Hz
Conveyor speed0.5~ 2m /min CTV
Dimension840 X 540 X 380mm
