• Model NO.：WIND-100-VW
• Automatic：Automatic
• Transport Package：Wooden Case
• Specification：Middle Size
• Trademark：Wind Automation
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. WIND-100-VW Automatic Automatic Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/Year

Product Description

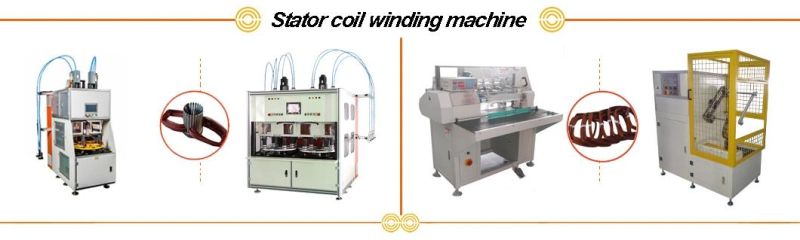

High Slot Filling Rate Stator Coil Automatic Winding Machine

This coil winding machine is of high efficiency, suitable for small slot opening stator with high filling rate.

(1) Feature
Manual unloading coils after winding
Single winding head two working stations
All winding parameter programmable on touch screen
Rotation and indexing controlled by servo system
Tooling change and software adjustment within 15min
No distinct vibration or noise during winding
Automatically stop if wire is run out

(2) Application
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(3) Specification

Wire diameter	0.2~1.2mm
Min stator ID	40mm
Max stator OD	175mm
Core length	40-130mm
Power supply	380V  50/60KW
Weight	About 1100kgs
Dimension	1900x850x3200mm

(4)Operation step
Thread wire into the machine
Connect the power and air source
Turn on the machine, and press "reset" button to reset the machine
Put the winding form on the indexing plate
Press "cut wire"
Press "start" button by two hands, machine will automatically wind the stator.
