• Model NO.：YH-6PC
• Transport Package：Wooden Case
• Specification：L430mmx W505 mm x H425mm
• Trademark：YH
• Origin：China, Kunshan
• HS Code：8479819000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. YH-6PC Transport Package Wooden Case Specification L430mmx W505 mm x H425mm Trademark YH Origin China, Kunshan HS Code 8479819000 Production Capacity 1000PCS/Month

Product Description

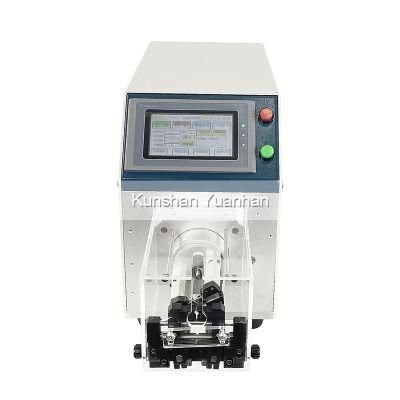

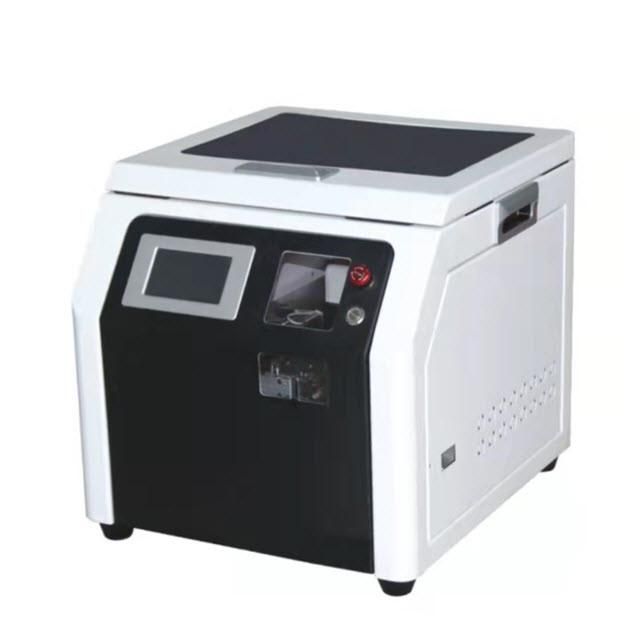

Loose Tubular Terminal Crimping Machine

This E tube type insulated terminal crimping machine can complete rotary stripping, twisting, terminal threading, and crimping in 2.5 seconds.


○ Main function: wire stripping, twisting, terminal threading and crimping

○ Crimping range: 0.3 - 4 mm² / 2.5 - 6 mm²

○ Crimping length: max. 12mm

○ Stripping length: min. 40mm for sheathed cable

○ Crimping shape: four-side crimping, hex-side crimping, single-side crimping, double-side crimping

○ Capacity: 1000-1300pcs/hour. Rotary stripping, twisting, threading, and crimping are completed in 2.5 seconds.


Model	WL-6PC

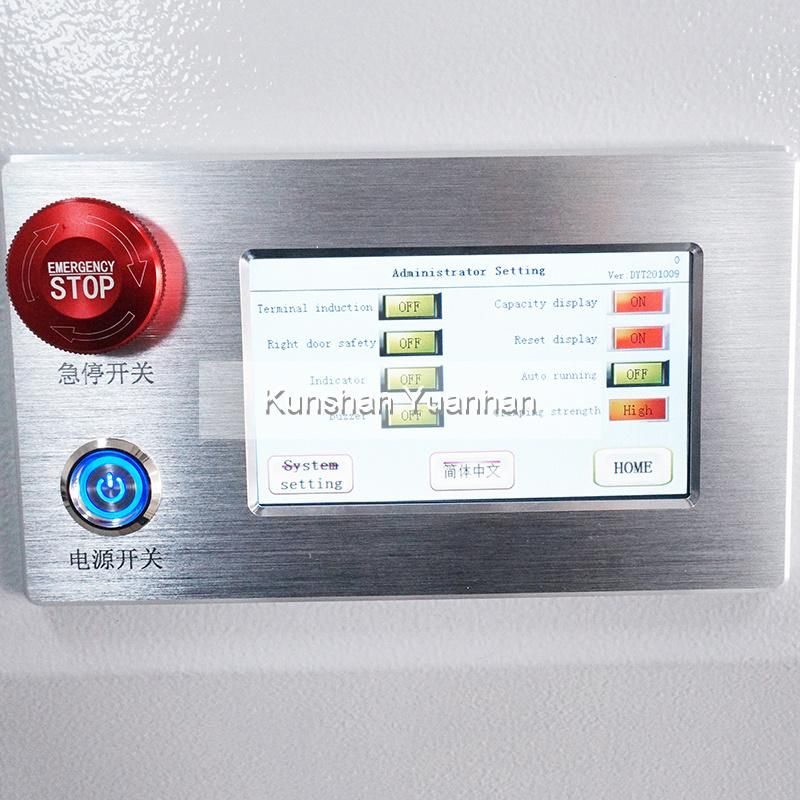

Control method	touch screen and programmable controller, MOONS drive
Drive mode	motor/imported ball screw

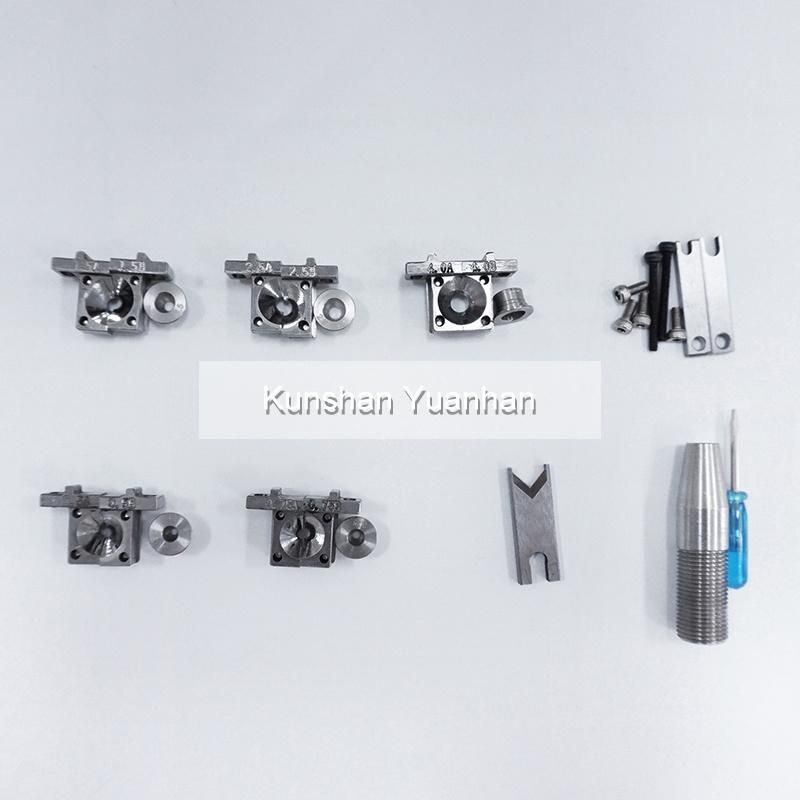

Rotary cutting blade	2 pieces, material: imported tungsten steel
Clamping device	motor driven, clamping force program control
Crimping device	motor driven, program control of crimping force
Storage capacity	100 sets of cable crimping data
Power supply	AC220V/50/60HZ 400W
DC power	MEAN WELL switching power supply
Working environment	0-50 degrees, moderate dryness (please use clean and dry air source)
Pneumatic device	SMC solenoid valve, SMC cylinder
Detection device	terminal supply detection

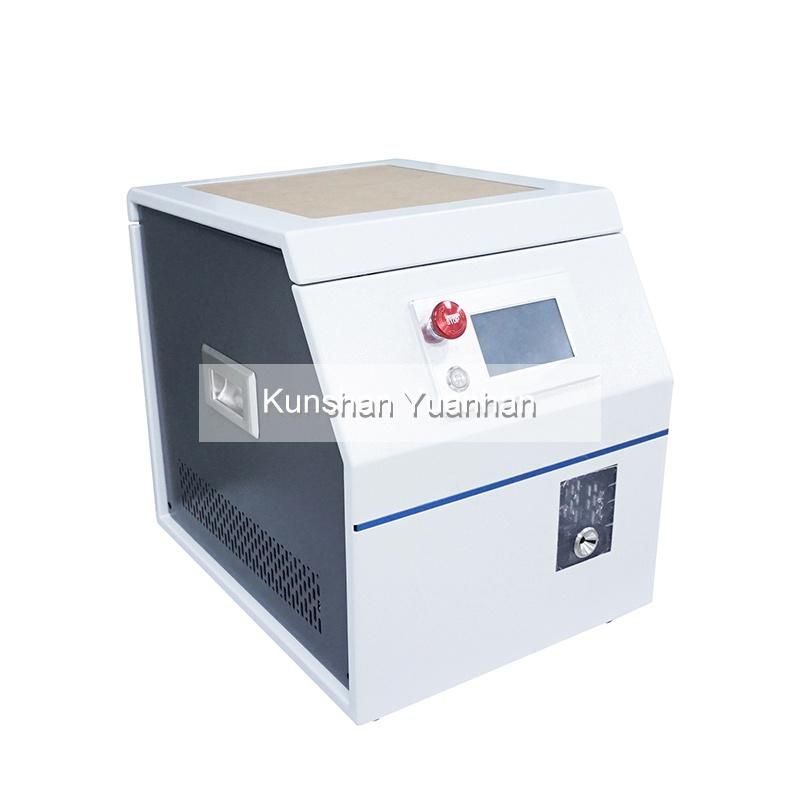

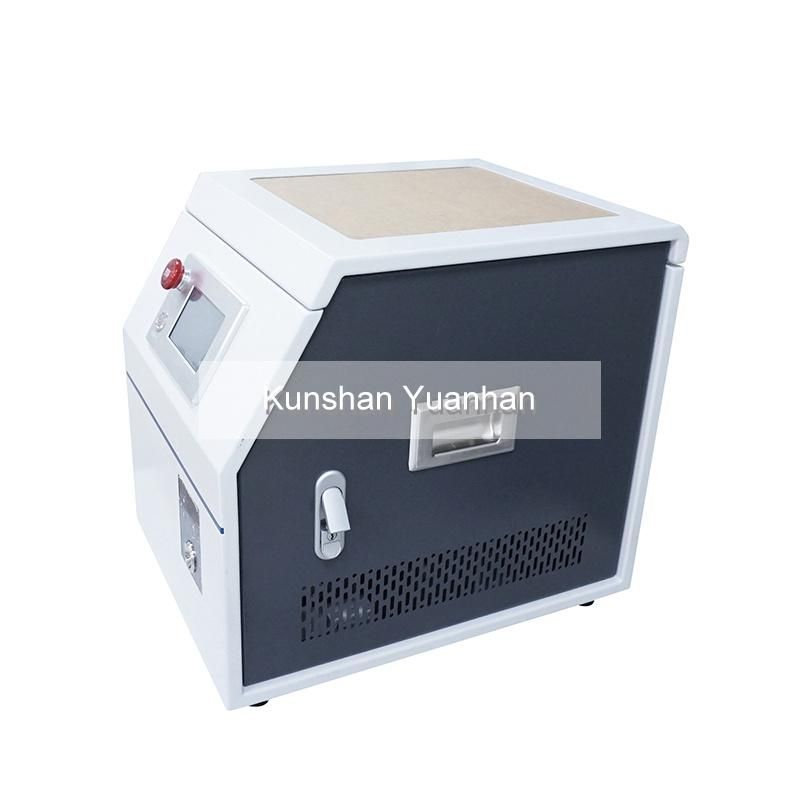

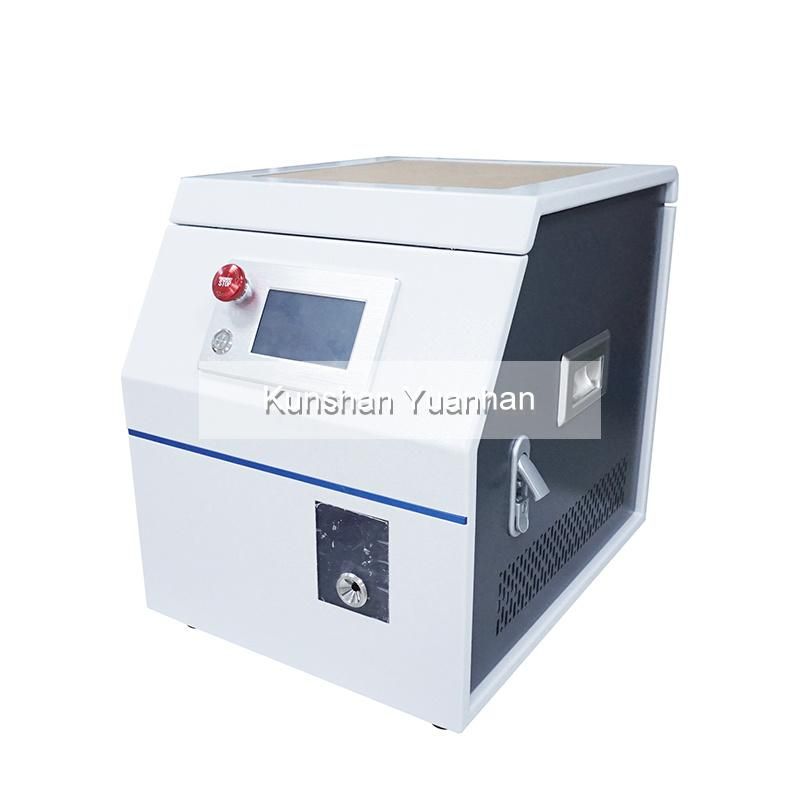

Dimensions	L430mmx W505 mm x H425mm (length, width and height)
Overall weight	68kg

6PC--Max.6mm2 cable strip crimp

Similar model 3PC--Max.4.5mm2

Pls contact us for price request, or any quesitons or concern.
