High Productivity Enamelled Wire Bunching Buncher Strander Stranding Machine 18.5kw with Touch Screen Operation
Kunshan Fuchuan Electrical and Mechanical Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Mould Life：>1,000,000 Shots
Base Info
- Model NO.：FC-1000B
- Type：High-speed Stranding Machine
- Color：Sky Blue or Apple Green Buncher
- Usage：Bare Copper Wires, Tinned Wires, Silver Jacketed W
- Single Wire Diameter：0.12mm-0.52mm
- Stranding Section Area：0.30mm2-4.0mm2
- Core Wire Single Wire Dia：0.5mm-2.0mm
- Core Wire Stranding Outer Dia：1.0mm-4.0mm
- Pitch：11.6-100mm(34zones)
- Max Rotating Speed：2400rpm(4800twist)
- Brake Mode：Electromagnetic Break
- Protection：Machine Will Automaticlly Brake When Wire Break
- Transport Package：Seaworthy Wooden Packaging Buncher
- Specification：ISO9001 Copper Wire cable buncher machine
- Trademark：FC buncher
- Origin：China Buncher
- HS Code：8479811000
- Production Capacity：100sets,Month Copper Aluminum Wire Cable Buncher
Description
2300*1100*1330
Model FC-1000B large wire high speed bunching machine and double twist bunching machine
1.1 Japanese Technology, product in China
1.2 Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Characteristics:
2.1 Latest developed machine.
2.2 This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),
2.3 low power, small floor place ,low noise and other merits.
Specification:
Equipment models
FC-1000B
Twisting usage
Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Single wire dia(mm)
φ0.30-φ1.7
Stranding section area(mm²)
6.0-35.0
Core wire single wire dia
φ2.0-φ5.0
Core wire stranding outer dia
φ4.0-φ10
Pitch(mm)
35-200(12zones)
Direction of lay
Optional for right or left
Take up bobbin Outer dia*bore*outer width
φ1000*φ80*750
Max rotating speed
1000(2000twist)
Main motor power
18.5KW
Inverter power
18.5KW
Tension control method
Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch
20kgf
Protection
Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode
Electromagnetic brake
Traversing method
Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode
Touch screen operation
Dimension(mm)
4000L*2200W*2100H
Model FC-1600B large wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
Equipment models
FC-1600B
Twisting usage
It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Single wire dia(mm)
φ0.50-φ2.52
Stranding section area(mm²)
16.0-95
Core wire single wire dia
φ3.0-φ10.0
Core wire stranding outer dia
φ8.0-φ20.0
Pitch(mm)
80-350(12zones)
Direction of lay
Optional for right or left
Take up bobbin Outer dia*bore*outer width
φ1600*φ80*1180
Max rotating speed
600(1200twist)
Main motor power
30KW
Inverter power
30KW
Tension control method
Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch
40kgf
Protection
Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode
Electromagnetic brake
Traversing method
Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode
Touch screen operation
Dimension(mm)
5000L*3000w*3000H

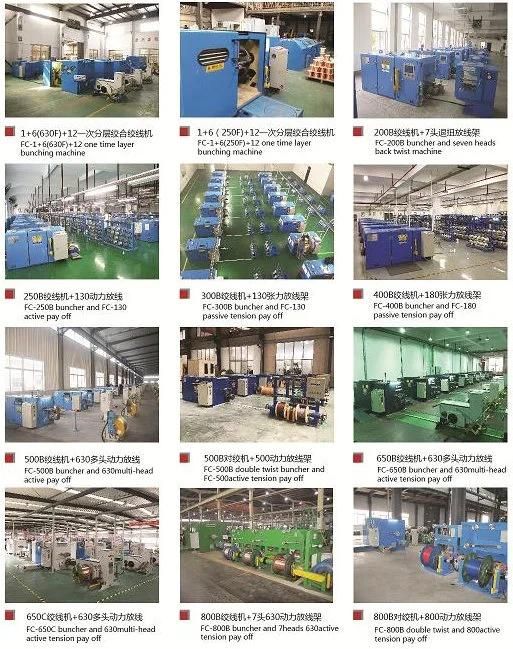

4. Machine Show

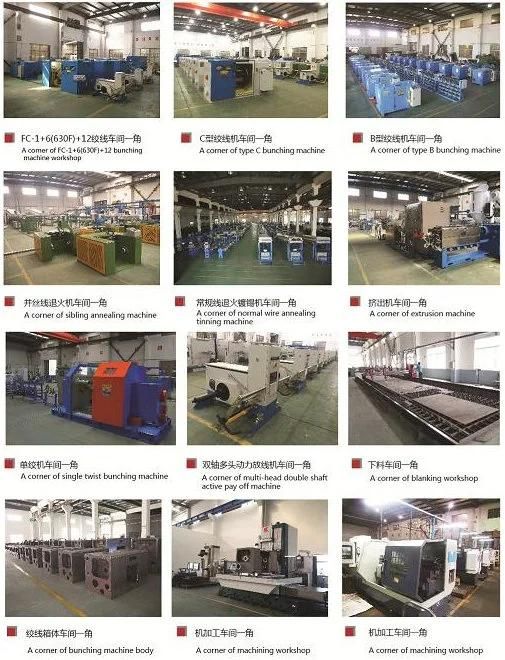

5. Cornor of Workshop
6. Customer Show
6. Fair Show
6. Certificates & Honor & Patents
7. For more details, please feel free to contact with me in any time:
And FUCHUAN always sincerely welcome for your visit and cooperation.
