Low Cost Cable Tensile Strength Force Tester 500n Pull Force Strength Tester

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-TT05
  • Model：Yh-Tt05
  • Testing Range：0~500(N),0~50(Kg), 1000n Can Be Customized
  • Tolerance：0.04n
  • Speed：10-800mm,Min
  • Program Storage：16 Groups
  • Dimension：430×180×210mm
  • Weight：10kg
  • Transport Package：Double-Layer Export Carton
  • Specification：390*350*255mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000

Description

Basic Info.

Model NO. YH-TT05 Model Yh-Tt05 Testing Range 0~500(N)/0~50(Kg), 1000n Can Be Customized Tolerance 0.04n Speed 10-800mm/Min Program Storage 16 Groups Dimension 430×180×210mm Weight 10kg Transport Package Double-Layer Export Carton Specification 390*350*255mm Trademark yuanhan Origin China HS Code 8479819000

Product Description

 Low cost cable tensile strength force tester 500N Pull force strength tester

This is an automatic wire crimp pull tester, which is designed to measure tensile strength of components up to 500N/1000N.




Features

  • Function: peak force, non-destructive test, UL test values for pull out.

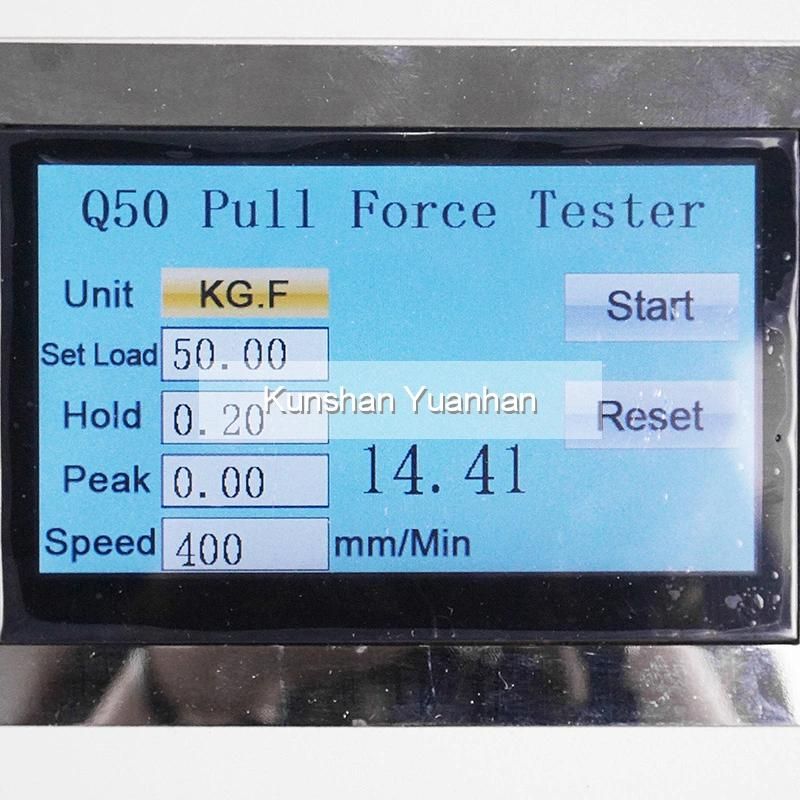

  • Motor driven, color touch screen operation, automatic measurement and display of the tension value, simple operation and accurate measurement.

  • It can test the peak tensile force, and can also set the upper limit of tensile force and test time for non-destructive tensile test.

  • With the self-developed test software, the peak graph displays the test process, communicates with the computer and printer, and prints in real time.

  • The data center can store 16 programs to meet the testing requirements of commonly used wires.

  • The chuck can accommodate various sizes of wires and terminals, and special wire specifications can be customized.




Specifications

Model YH-TT05
Test range0~500(N)/0~50(Kg), 1000N can be customized
Test accuracy±0.04N
Test speed10-800mm/min
Test tolerance0.04N
Power100W
Program storage16 groups
Power supplyAC220V, 50/60Hz
Dimensions(L×W×H) 430×180×210mm
Net weight10KG

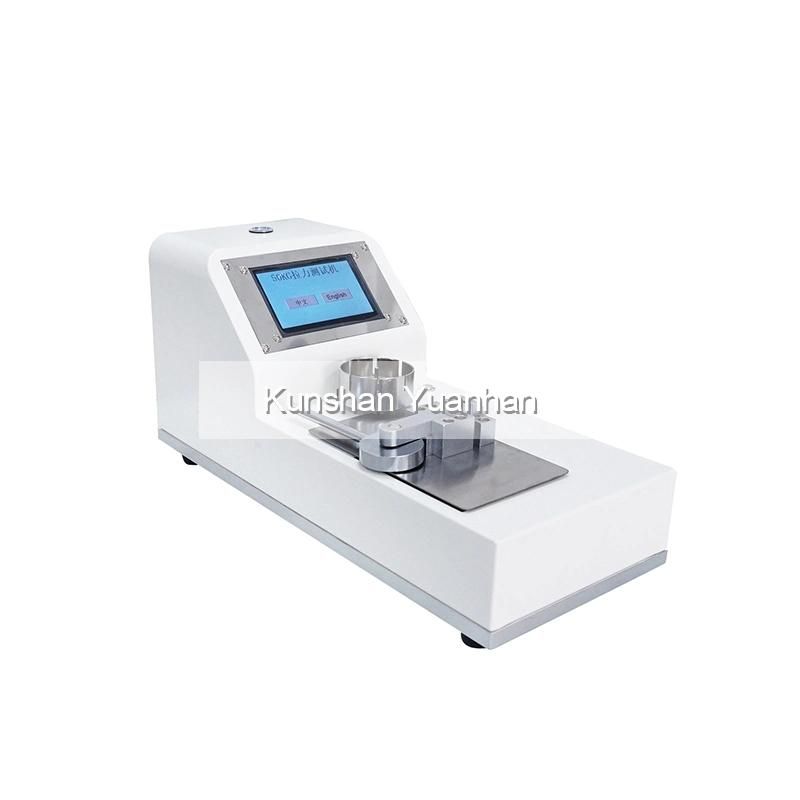

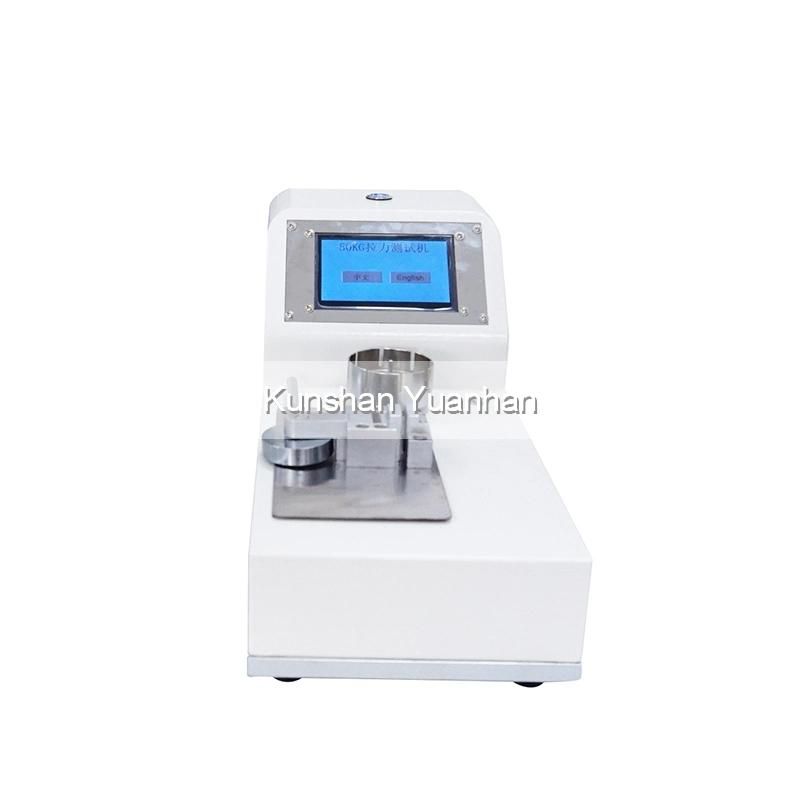

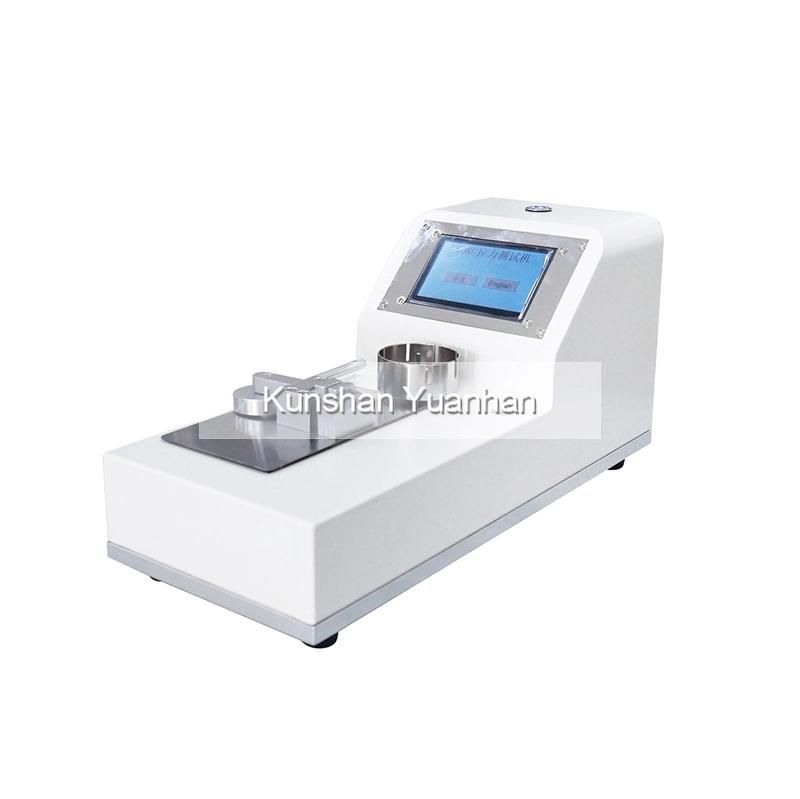

Machine Shows

Low Cost Cable Tensile Strength Force Tester 500n Pull Force Strength TesterLow Cost Cable Tensile Strength Force Tester 500n Pull Force Strength TesterLow Cost Cable Tensile Strength Force Tester 500n Pull Force Strength Tester
Low Cost Cable Tensile Strength Force Tester 500n Pull Force Strength TesterLow Cost Cable Tensile Strength Force Tester 500n Pull Force Strength Tester
Low Cost Cable Tensile Strength Force Tester 500n Pull Force Strength Tester

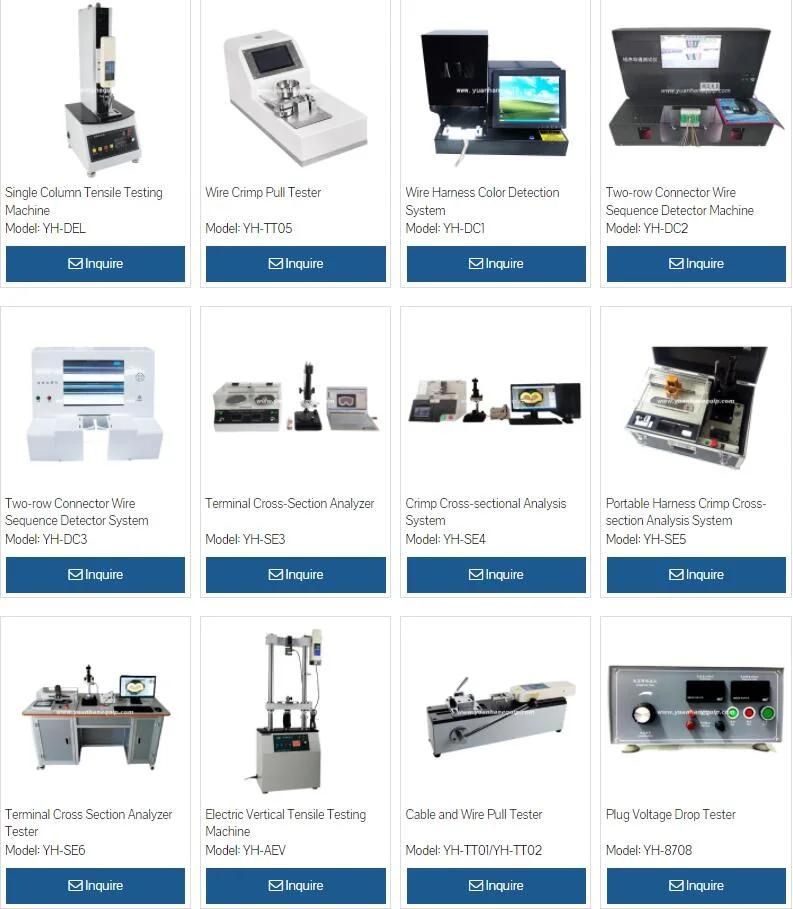

Other Models

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
Low Cost Cable Tensile Strength Force Tester 500n Pull Force Strength Tester

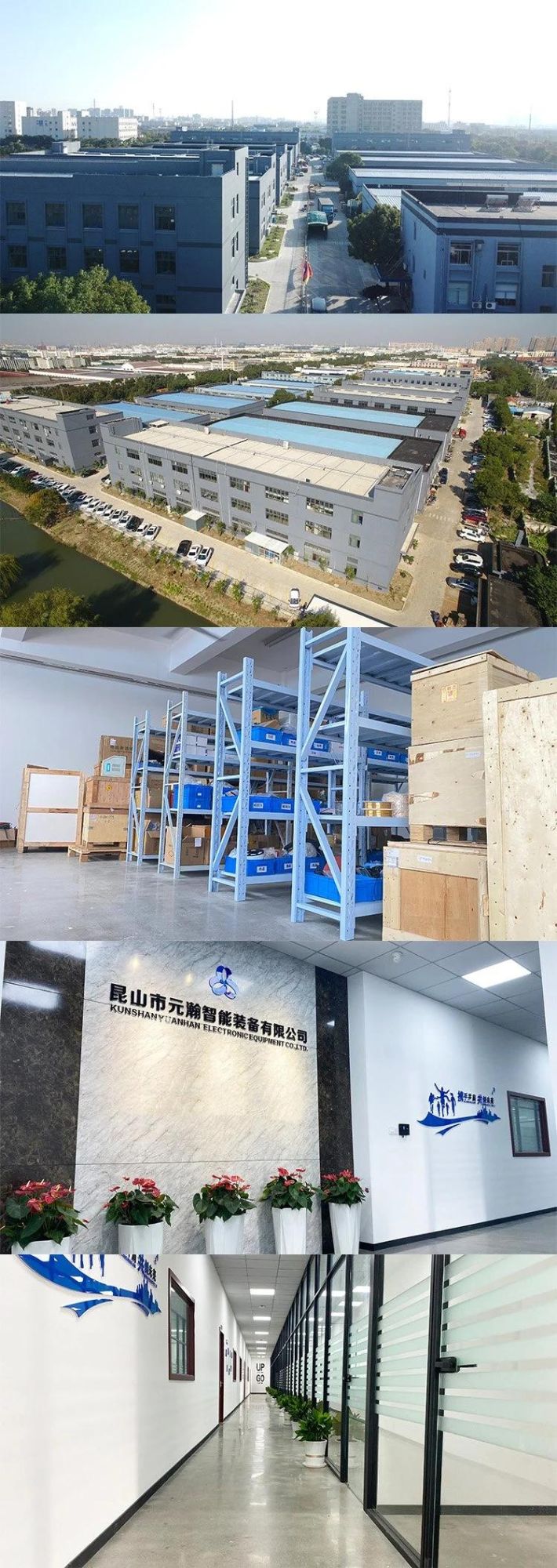

Our Company
Low Cost Cable Tensile Strength Force Tester 500n Pull Force Strength TesterLow Cost Cable Tensile Strength Force Tester 500n Pull Force Strength Tester



Packing & Shipping

For small and light products packed by cartons,for large and heavy products packed by wooden
