Yh-S100 Automatic Coil Winding Measuring Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • Voltage：220V
  • Warranty：1year
  • Model：Yh-S100
  • Function：Wire Cutting, Winding, Tying
  • Applicable Wires：USB,DC,AC Wires
  • Air Pressure：0.4-0.6MPa

Base Info

  • Model NO.：YH-S100
  • Winding Cycle：1-999 Cycle
  • Winding Speed：1-4 Cycle,S
  • Available Wire Size：2-7mm or 6-10mm
  • Winding Inner Diameter：Adjustable From 80 to 250mm
  • Winding Outer Diameter：Max 300mm
  • Available Wire Width：10-70mm
  • Suitable Wire Shape：Round Wire, Flat,Ribbon Wire, 2-Pin Double Wires
  • Power：AC220V 50Hz,110V 60Hz
  • Transport Package：Wooden Box
  • Specification：94*50*50cm
  • Trademark：YUANHAN
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Month

Description

Ø2-7mm or Ø 6-10mmWinding inner diameterAdjustable from 80 to 250mmWinding outer diameterMax 300mmAvailable wire width10-70mmSuitable wire shapeRound wire, flat/ribbon wire, 2-pin double wires, etc.Dimension1100*1150*430mmNet weight60KGPowerAC220V 50hz/110v 60HZPower RatingMax 1000W

Yh-S100 Automatic Coil Winding Measuring MachineYh-S100 Automatic Coil Winding Measuring MachineYh-S100 Automatic Coil Winding Measuring Machine

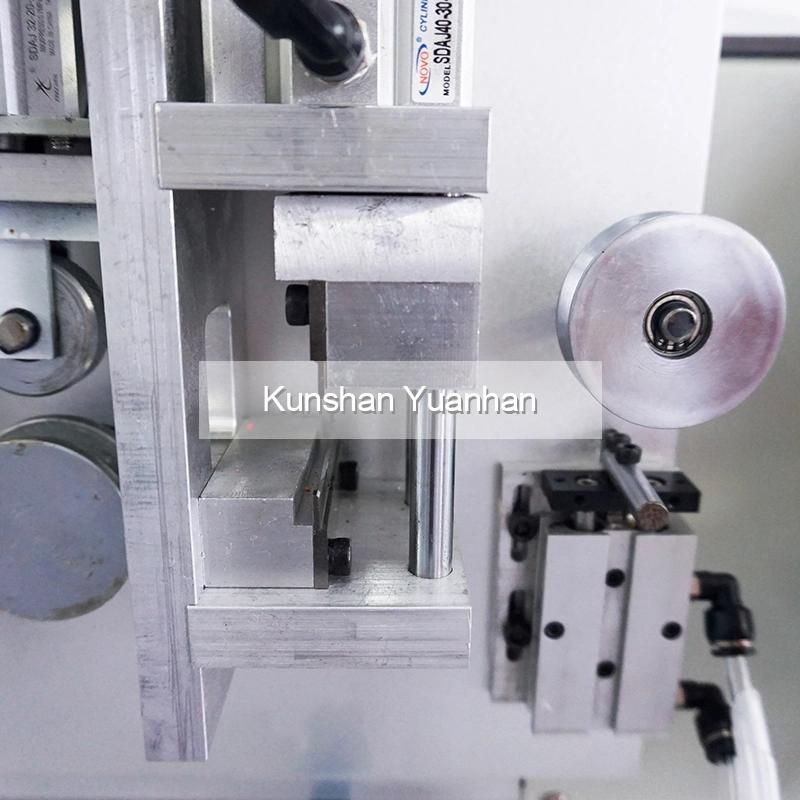

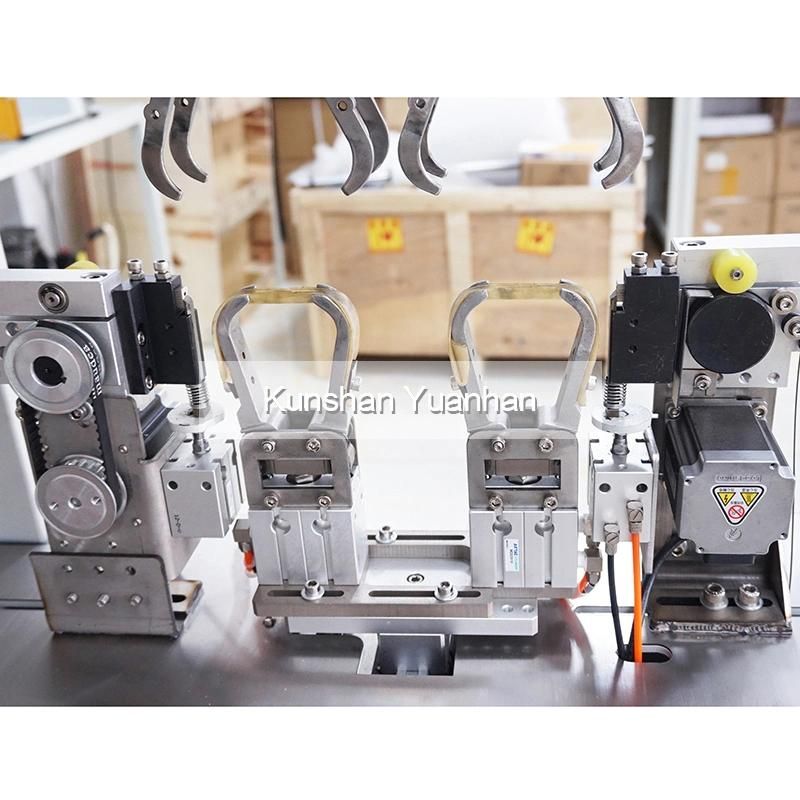

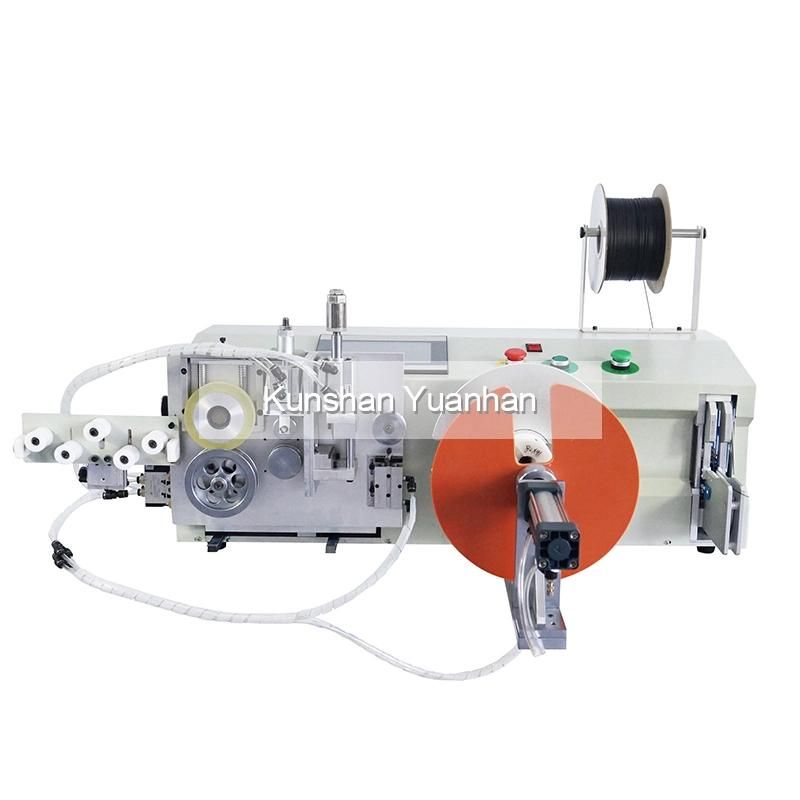

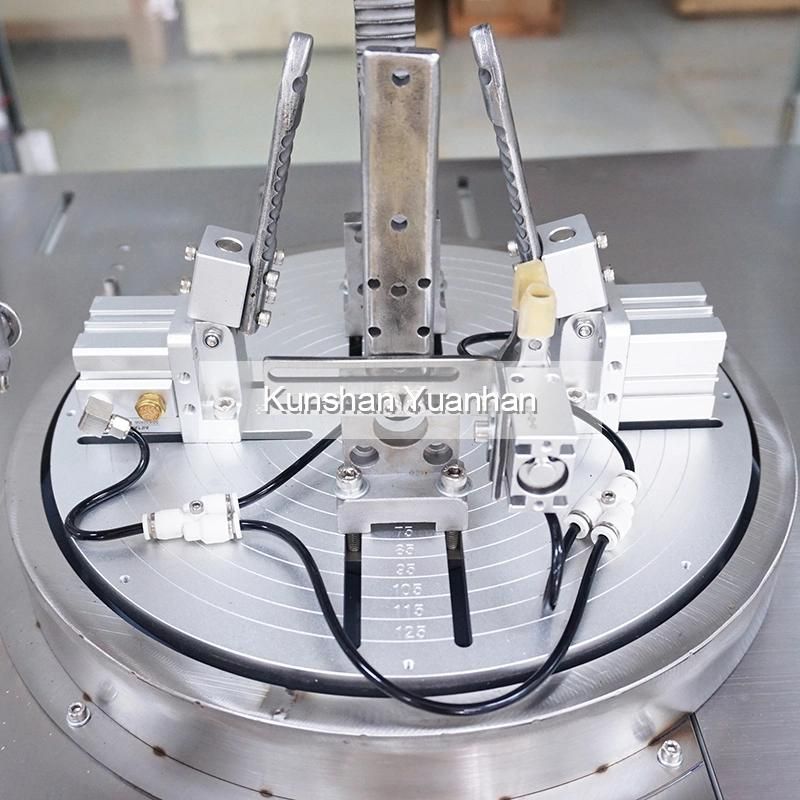

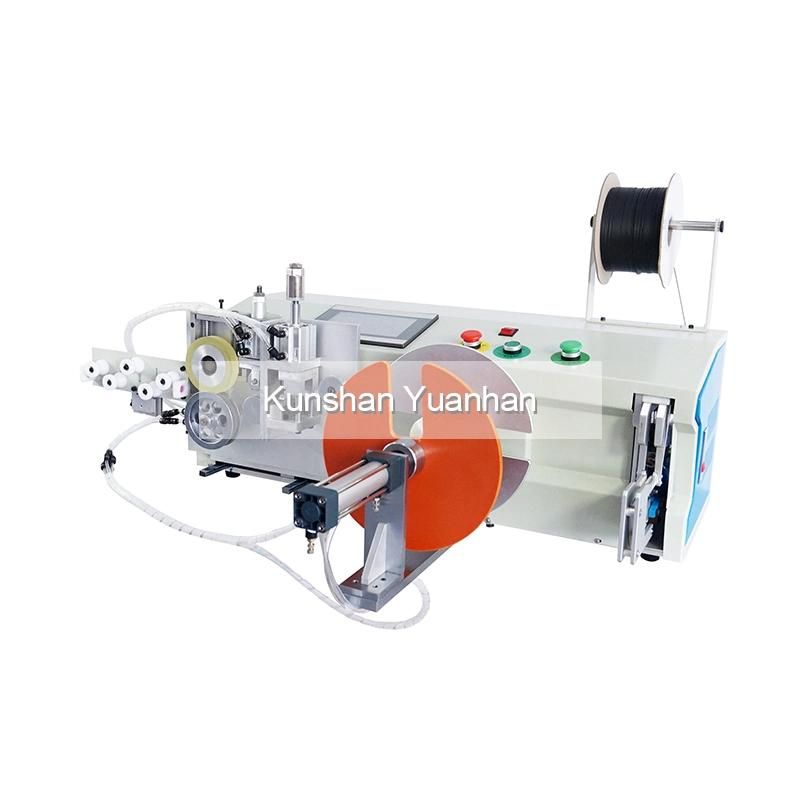

Product pictures :

Yh-S100 Automatic Coil Winding Measuring Machine
Yh-S100 Automatic Coil Winding Measuring MachineYh-S100 Automatic Coil Winding Measuring Machine

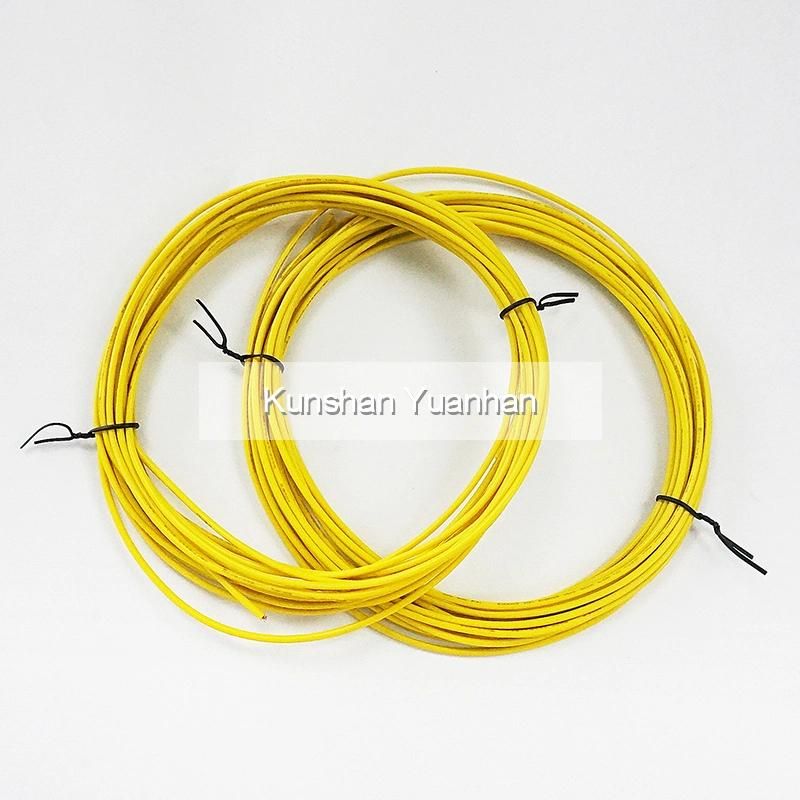

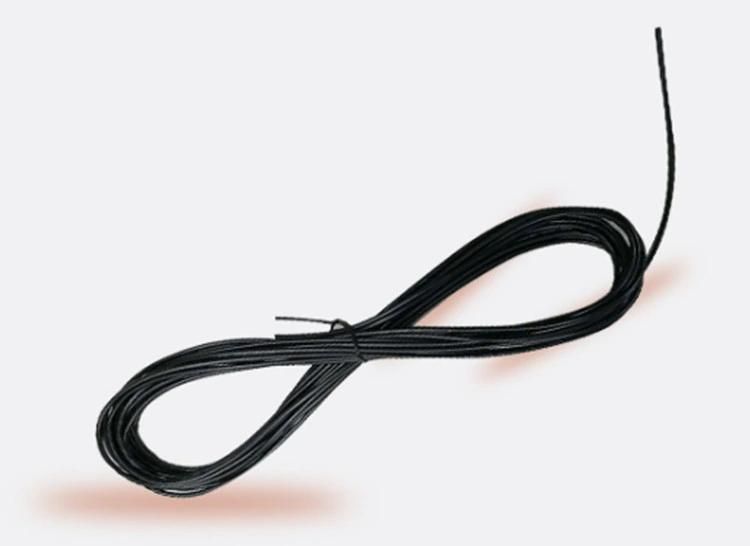

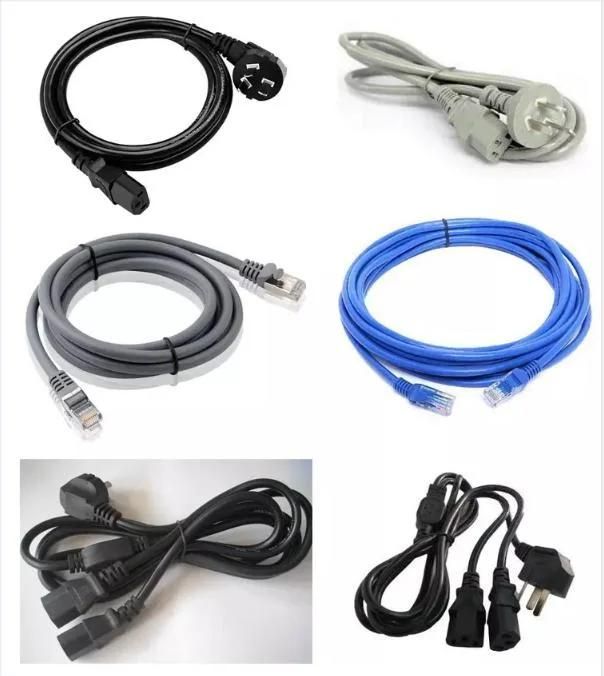

Processing Sample:
Yh-S100 Automatic Coil Winding Measuring Machine


Yh-S100 Automatic Coil Winding Measuring Machine
Yh-S100 Automatic Coil Winding Measuring Machine

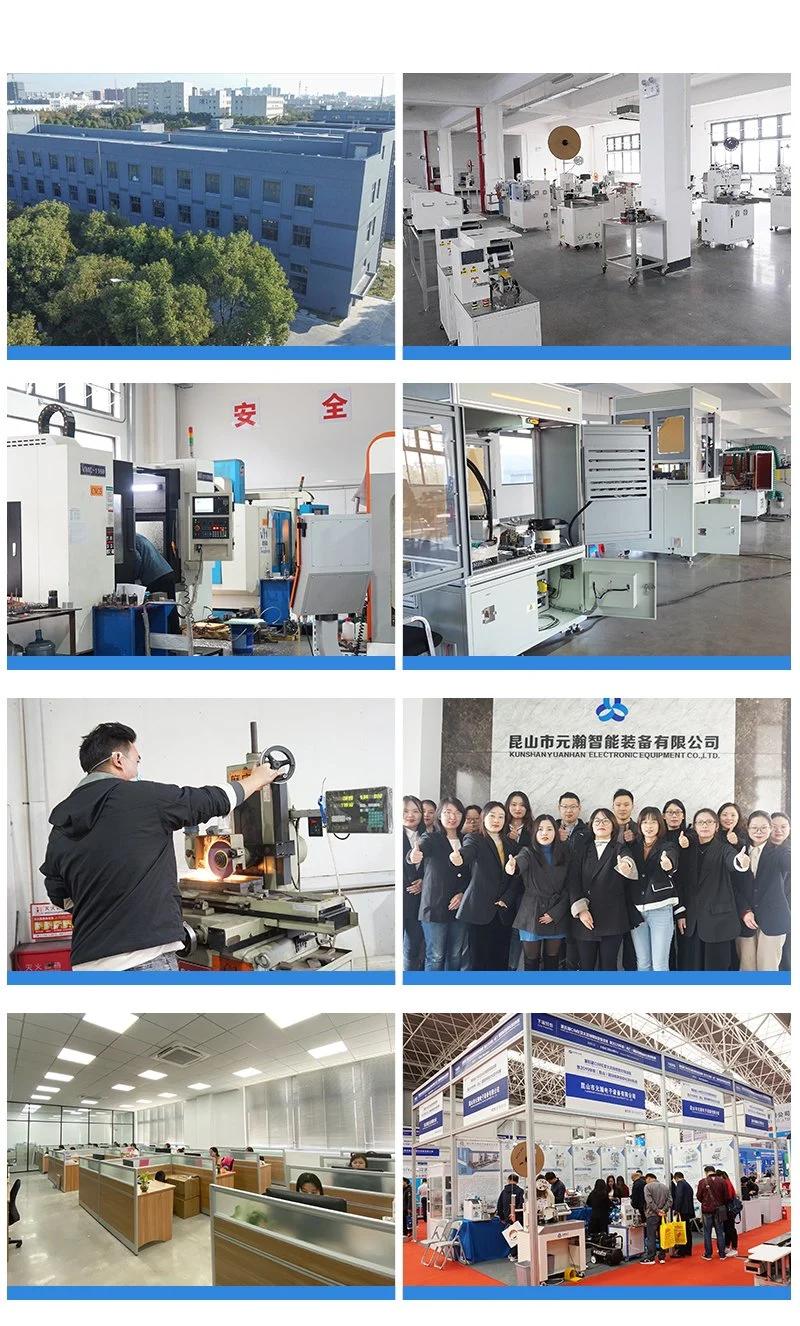

Company Information:
Yh-S100 Automatic Coil Winding Measuring Machine
Certificate:
Yh-S100 Automatic Coil Winding Measuring Machine
Any question, please contact Yuanhan
