• Model NO.：QX1-150,160
• Power Source：380V,50Hz
• Air Source：0.5-0.8MPa
• Machine Productivity：400PCS, 8 Hours
• Machine Dimension：1800mm × 650mm × 1700 mm
• Weight：About 1000kg
• Automatic：Semi-Automatic
• Certification：CE

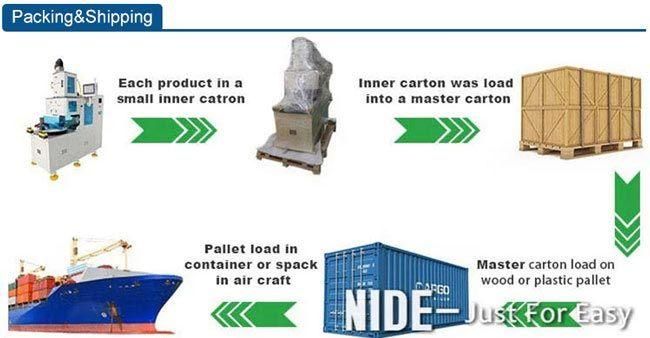

• Transport Package：Pallet
• Specification：ISO9001
• Trademark：NIDE
• Origin：China
• HS Code：8479819000
• Production Capacity：150set,Year

Max stator O.D.160mmStator I.D20~100mmMax stator stack length120mmSlot number range8~48 slotsMax winding feeding rate80%Appropriate wireCopper wire/Aluminum wirePower source380V/50HzAir source0.5-0.8MPaMachine productivity400pcs/ 8 hoursMachine Dimension1800mm × 650mm × 1700 mmWeightabout 1000Kg
Machine video link
https://youtu.be/83uO0pT-tj4

Application:
This Stator coil inserting machines apply to micro induction motors such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.This machine is controlled by PLC. All the parameter could be set on the touch screen,

Machine main function and characteristic
l. The machine inserts coil and wedge simultaneously, coil insertion is controlled by servo motor system , and wedge insertion by variable frequency motor.
2. It is controlled by HMI, and machine can diagnose breakdown automatically.
3. This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
4. The wedge feeding is by stepping motor. feeding length, cutting, forming, inserting slot number could be set.
5. Both copper wire and aluminium wire are appliable.
6. Production capacity ≤25s/set (exclude the man-hours for auxiliary work)
7. This machine is controlled by PLC. All the parameter could be set on the touch screen,

Information needed for stator winding inserting machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Wire connection drawing
4. Stator application
5 Required productivity
6 Other technical requirement

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

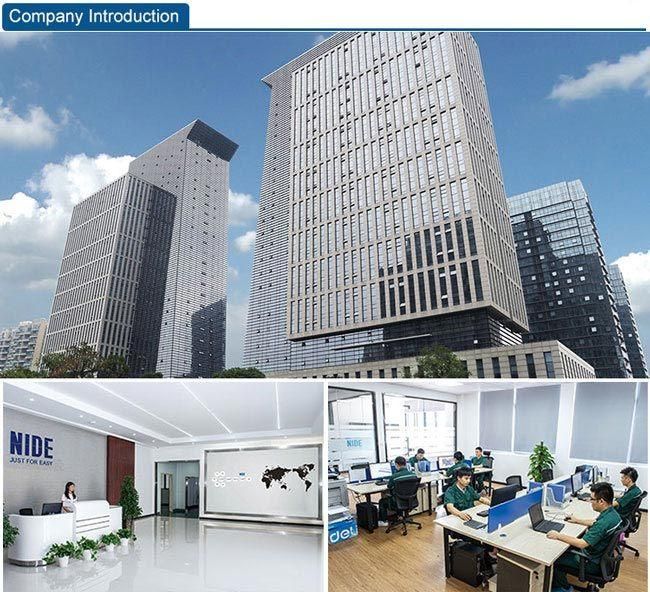

Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

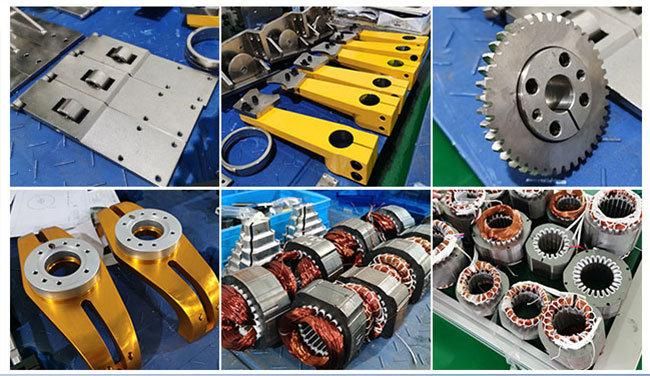

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
