USB3.1 Planetary Type Stranding Machine with Back-Twist
Dongguan Newtopp Electrical Machinery Co., Ltd.- Certification：CE, ISO, FDA, CCC, FCC, VDE, IEC60898, CCS, LR, ABS, Semko, CB
- Warranty：12 Months
- Automatic Grade：Automatic
- Mould Life：<300,000 Shots
- Purpose：Apply to USB3.1,Qsfp Wire& Cable
- Wire Specification：0.5-2.0
Base Info
- Model NO.：XJ4+4+8,XJ6+6+6
- Rotate Speed：Max200mm
- Power：10,15HP
- Traversing Type：Servo Traversing
- Twisted Od：Diameter 2-10mm,2-15mm
- Pitch Range：20-300mm,20-500mm
- Pay-off Type：4+4,6+6 Heads Equal Proportion Layout
- Back-Twist Rate：0-100% No Class Adjsutment
- Back Twist Heads：4+4,6+6+6
- Precision：High Precision
- Demoulding：Automatic
- Heating System：Electric
- Function：High Temperature Resistance
- Condition：New
- Customized：Customized
- Transport Package：PE Film + Wooden Box
- Specification：XJ300
- Trademark：NEWTOPP
- Origin：Dongguan City, Guangdong Province, China
- HS Code：8479400000
- Production Capacity：20 Sets,Month
Description
0-100% no class adjustmentBack-twist heads 4+4 6+6+6 Wrapping Tesion Axisrow type takeup, no damage during the traversing process, traversing space and pitch can be adjusted according
to the wire specification.

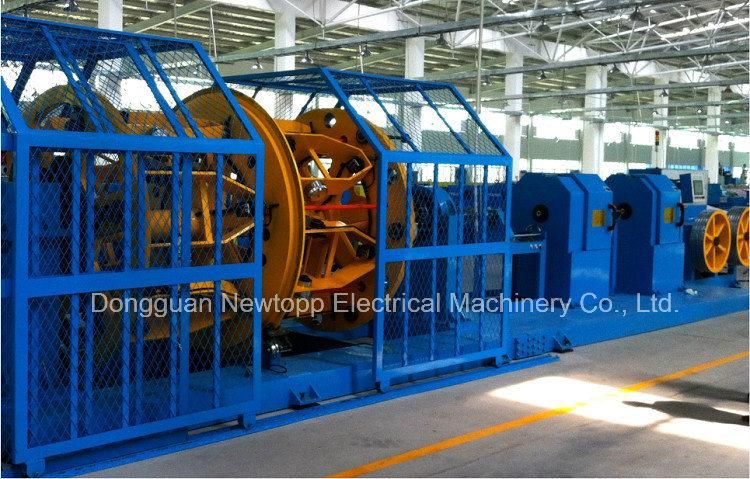

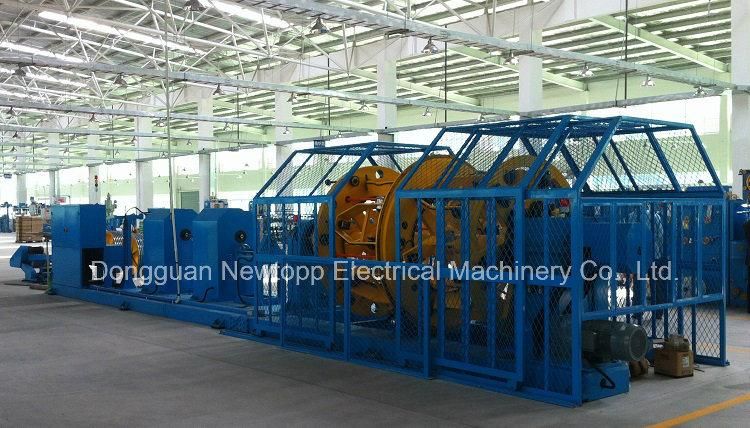

4. Products Show:
