Jacket Wire Cut Strip Crimp Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24h
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Semiautomatic

Base Info

  • Model：Yh-68211
  • Function：Inner Core Wire Cutting, Stripping and Terminal C
  • Power Supply：110,220VAC,50,60Hz
  • Power：750W
  • Speed：700-800 Pieces,Hour (6 Cores)
  • Jacket Strip Length：Shortest 40mm (8 Cores)
  • Strip Length of Inner Core：1-7mm (7-10mm Customizable)
  • Number of Inner Conductors：1-12 Cores
  • Inner Core Single Wire Diameter：5 Cores:Min.0.75mm; 8 Cores:Min.0.5mm;
  • Pressure：200kn,2t
  • Weight：85kg
  • Dimension：40*60*135mm
  • Mold Type：Horizontal Die Continuous Terminal (Straight Mold
  • Remark：Cannot Process Teflon and Silicon Wires
  • Transport Package：Carton,Wooden Case
  • Specification：22*25*60cm
  • Trademark：YH
  • Origin：China
  • HS Code：8479819000

Description

1-12 coresInner core single wire diameter

5 cores:min.0.75mm;

8 cores:min.0.5mm;

12 cores:min.0.3mm;

Pressure200KN/2TWeight85kgDimension40*60*135mmMold typeHorizontal die continuous terminal (straight mold customizable)RemarkCannot process teflon and silicon wires

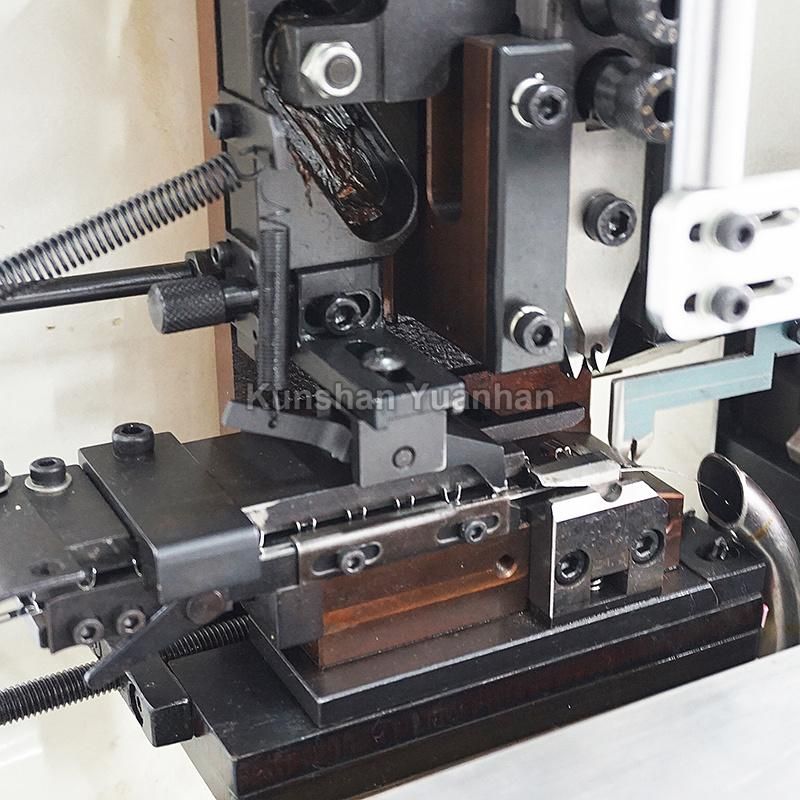

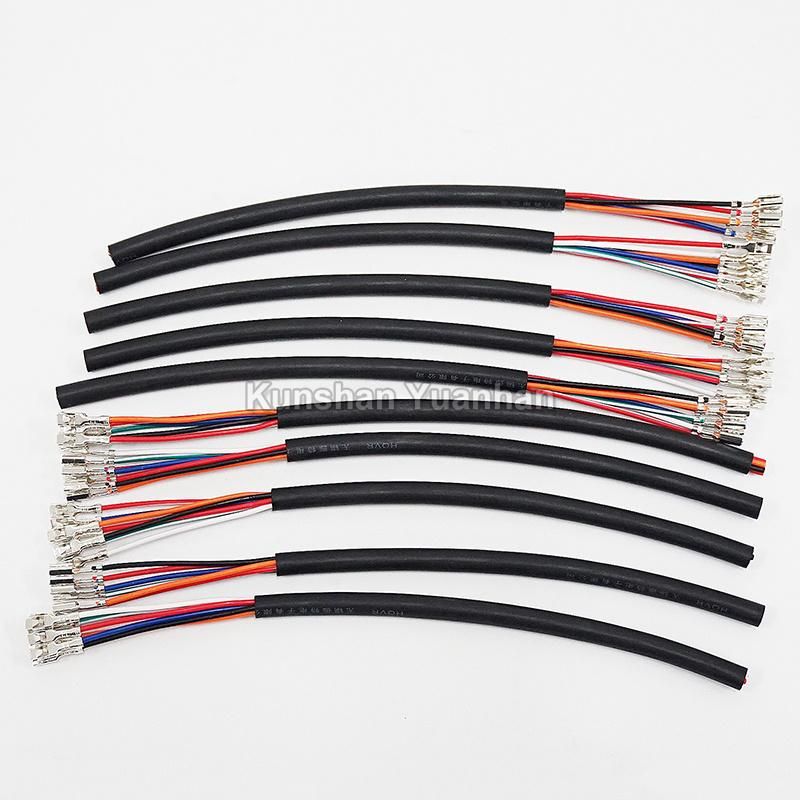

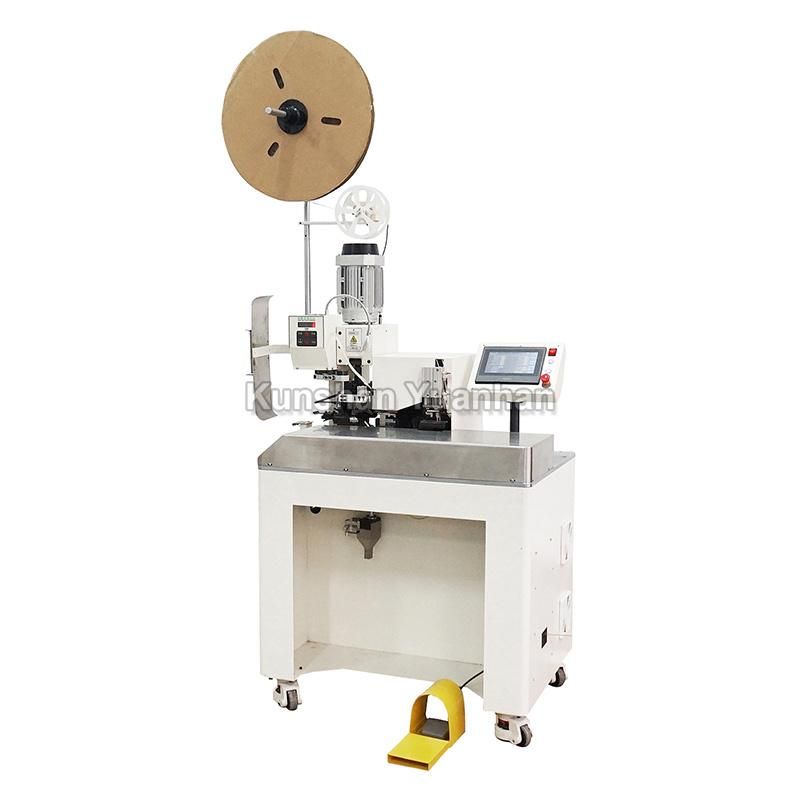

Machine shows

Jacket Wire Cut Strip Crimp MachineJacket Wire Cut Strip Crimp Machine
Jacket Wire Cut Strip Crimp MachineJacket Wire Cut Strip Crimp MachineJacket Wire Cut Strip Crimp Machine
Jacket Wire Cut Strip Crimp MachineJacket Wire Cut Strip Crimp Machine

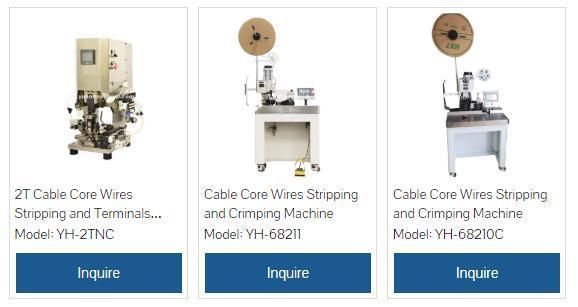

More models

Jacket Wire Cut Strip Crimp Machine



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden
