Power Wire Cable Manufacturing Machine

Guangdong Chipeng Electrical Technology Co., Ltd.
  • Condition：New
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Single Strand Diameter：6.0~45.0mm
  • Maximum Stranding Diameter：100mm
  • Cage Speed：4.3~9.6r,Min

Base Info

  • Model NO.：CLY630-CLY1600
  • Stranding Pitch：447~7604mm
  • Traction Speed：4.3~32.7m,Min
  • Speed Changer：36 Stages
  • Pay-off Bobbin：Pn1600
  • Take-up Bobbin：Pn1250~Pn2500
  • Central Height：1000mm
  • Precision：Precision
  • Customized：Customized
  • Transport Package：Standard International Shipment Packing
  • Trademark：CP
  • Origin：Foshan
  • HS Code：8479400000
  • Production Capacity：3 Sets,Month for Cable Machine

Description

No.Parameter nameUnitCLY630 TypeCLY1000 TypeCLY1250 TypeCLY1400 TypeCLY1600 Type1Wire-core cross section areamm22.5-1610-12016-18525-24050-4002Max cabling diametermm405060801003Cage speedr/min24.6-56.5
(6 stage)11.1-25.1
(6 stage)9.5-21.5
(6 stage)6.8-15.5
(6 stage)4.3-9.6
(6 stage)4Cabling pitchmm90-288990-2889180-3095278-4766448-76055Cable speedm/min2.4-33.1
(16 stage)2.2-32.7
(32 stage)3.87-29.4
(36 stage)4.3-32.7
(36 stage)4.3-32.7
(36 stage)6Pay-off bobbinmmPN630PN1000PN1250PN1400PN16007Take-up bobbinmmPN100-PN1600PN100-PN2000PN100-PN2000PN125-PN2500PN140-PN28008Armoring head speedr/min191-781
(9 stage)108-444
(9 stage)108-444
(9 stage)108-444
(9 stage)108-444
(9 stage)9Armoring pitchmm3-1735-3028-2729-3029-30210Taping head speedr/min139-568
(9 stage)81-323
(9 stage)81-323
(9 stage)81-323
(9 stage)81-323
(9 stage)11Taping pitchmm4-2386-40312-36213-40313-40312Central heightmm10001000100010001000

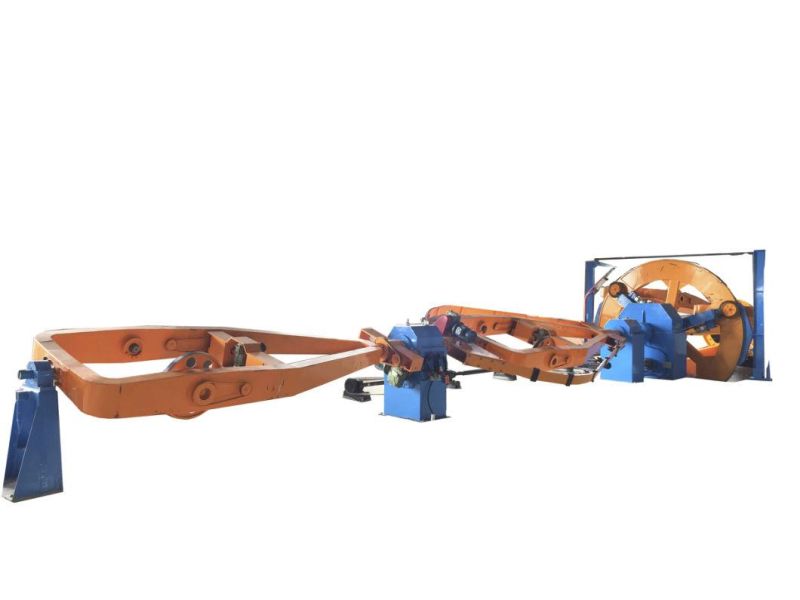

3.    Photos

Power Wire Cable Manufacturing Machine

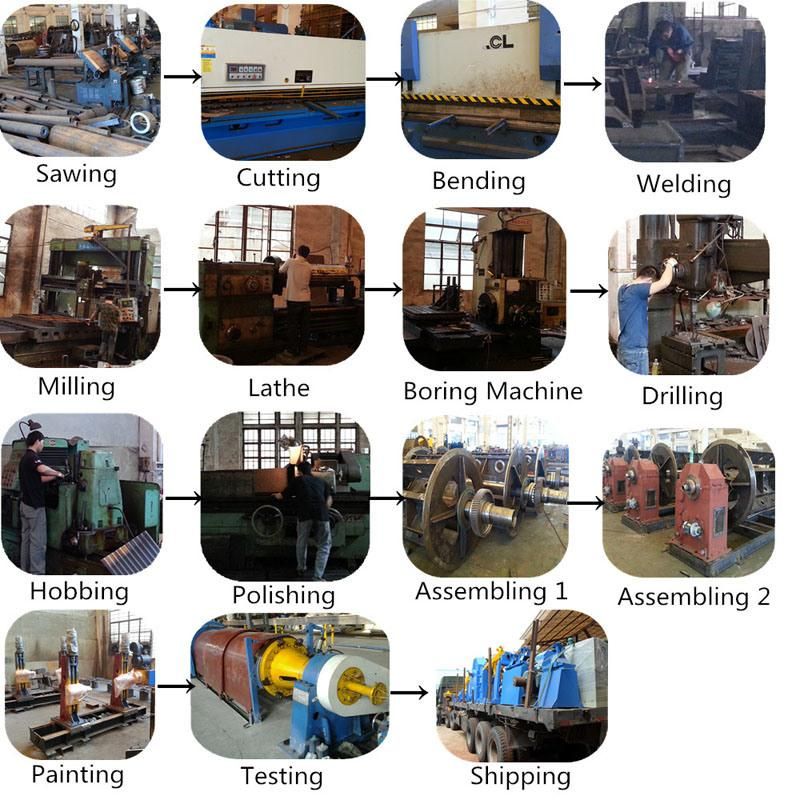

4.    Producing Process
Power Wire Cable Manufacturing Machine
5.    Cables and wires which our machines can make
Power Wire Cable Manufacturing Machine

Power Wire Cable Manufacturing Machine
