Automatic Cable Seal Insertion Machine Seal Plug Insert Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：All Life
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Model：Yh-300fs
  • Size of Seals：Max: 9X10mm (Outer Diameter X Length)

Base Info

  • Model NO.：YH-300FS
  • The Inner Diameter of Seals：0.6-3.0mm
  • Max. Insertion Length：10mm
  • The Length of The Inner Sheath of The Mu：Over 38mm
  • Working Efficiency：50 Times,Min (Not Counting Manual Speed)
  • Accuracy：±0. 3mm
  • Power Supply：200V 50Hz, <150W
  • Transport Package：Wooden Case Package
  • Specification：22*25*60cm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：50

Description

ModelYH-300FSSize of seals

MAX: 9x10mm (outer diameter x length)

The inner diameter of seals0.6-3.0mmMax. insertion length10mmThe outer diameter of the wire1-3.5mmThe length of the inner sheath of the multi-core wire> 38mmWorking efficiency50 times/min (not counting manual speed)Accuracy±0. 3mmPower supply200V 50HZ, <150W

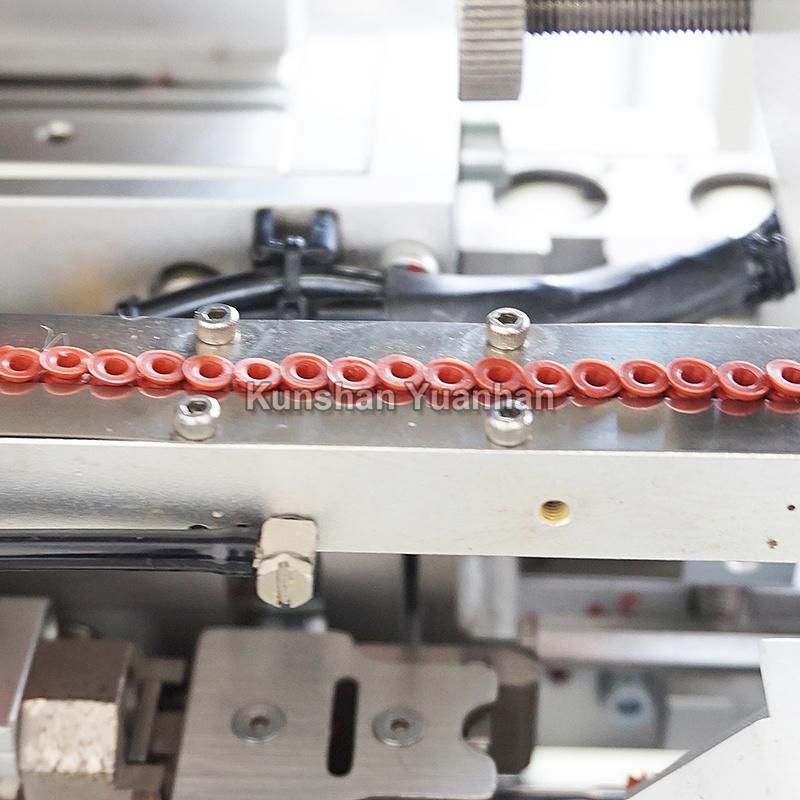

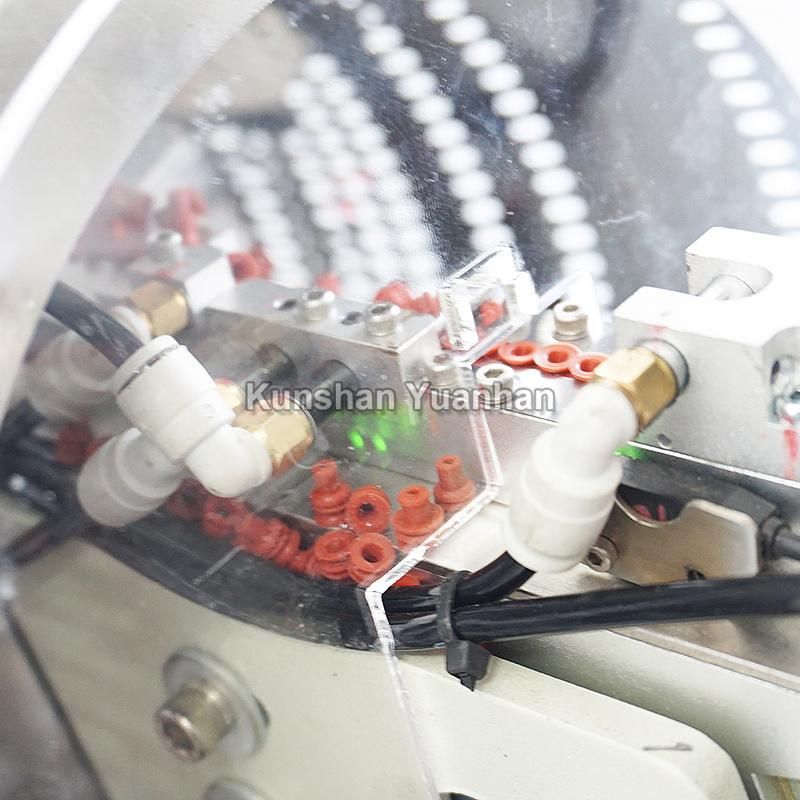

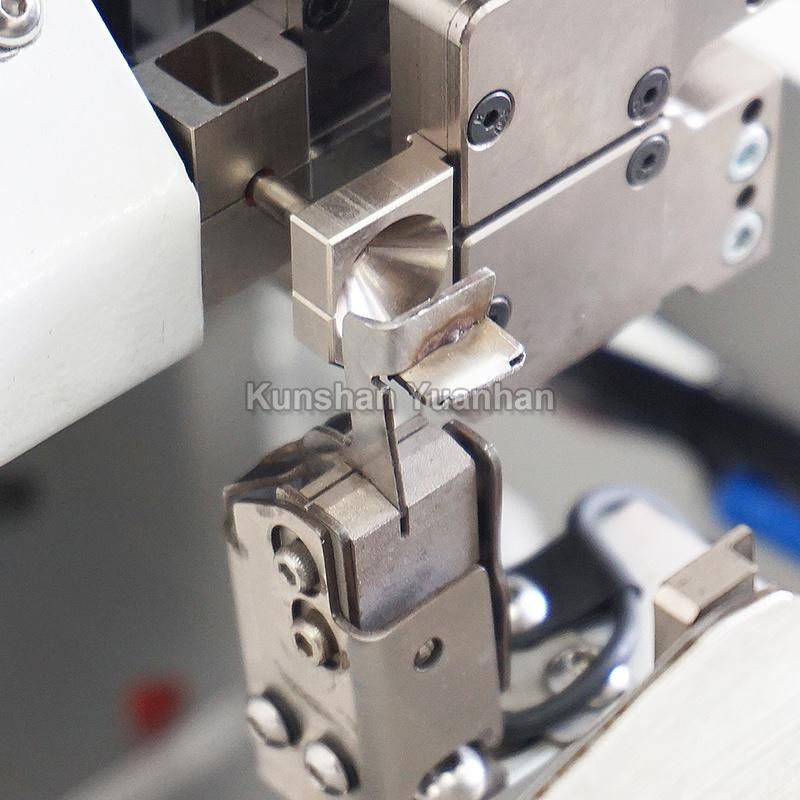

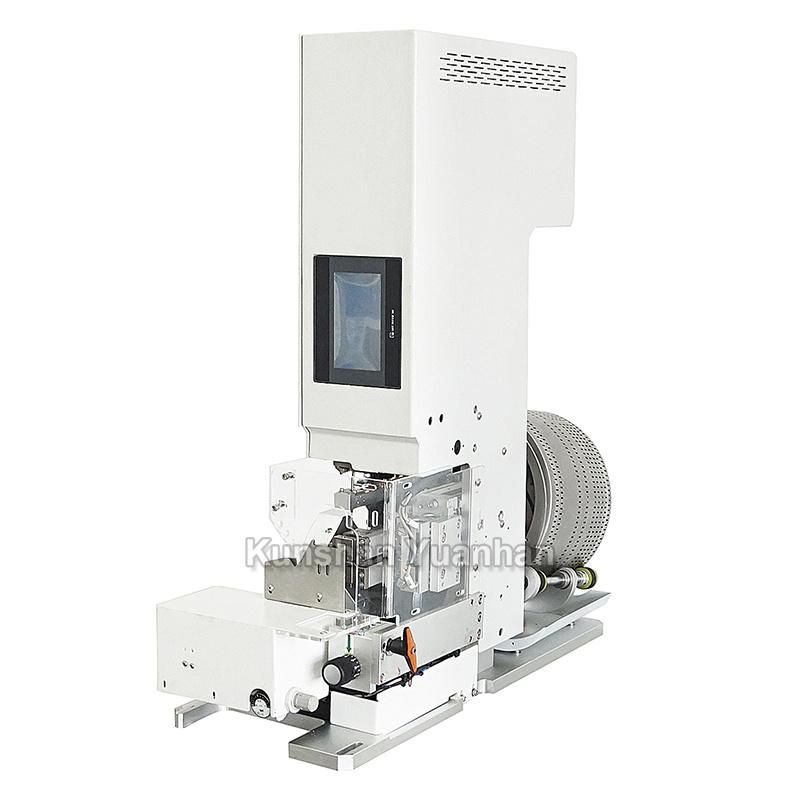

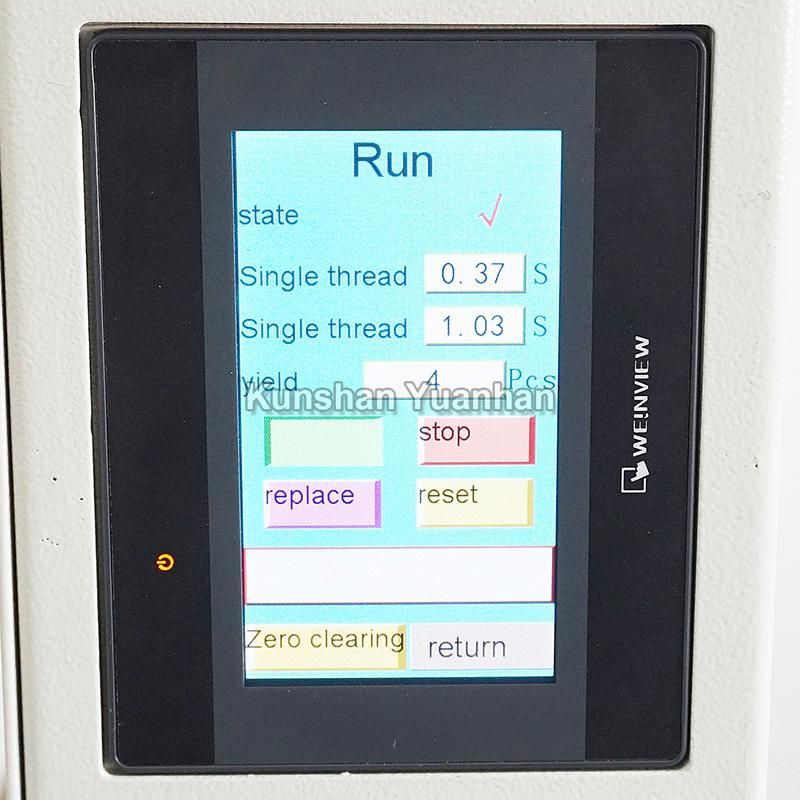

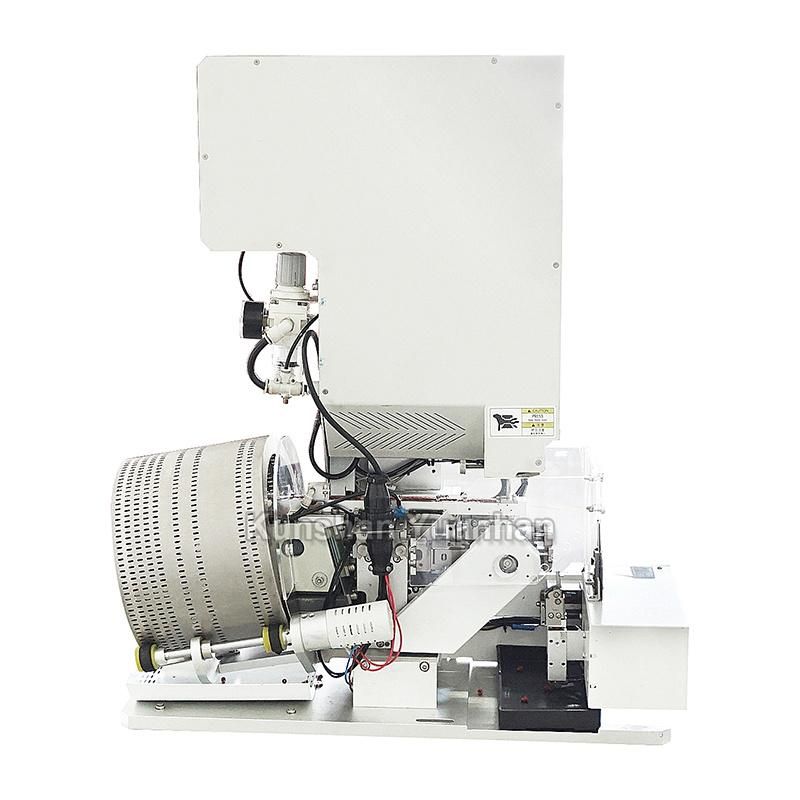

MACHINE SHOWS
Automatic Cable Seal Insertion Machine Seal Plug Insert MachineAutomatic Cable Seal Insertion Machine Seal Plug Insert MachineAutomatic Cable Seal Insertion Machine Seal Plug Insert MachineAutomatic Cable Seal Insertion Machine Seal Plug Insert MachineAutomatic Cable Seal Insertion Machine Seal Plug Insert MachineAutomatic Cable Seal Insertion Machine Seal Plug Insert MachineAutomatic Cable Seal Insertion Machine Seal Plug Insert MachineAutomatic Cable Seal Insertion Machine Seal Plug Insert Machine
Automatic Cable Seal Insertion Machine Seal Plug Insert Machine
