• Model NO.：YH-2017C
• Model：Yh-2017c
• Processing Range：AWG30-AWG4 (0.04-20 Square mm)
• Function：Half Strip, Full Strip, Double-Layer Strip, etc.
• Capacity：1800-2000 Pieces,Hour (Depending on Operating Prof
• Stripping Length：1mm-40mm
• Adjustment Accuracy：0.05mm
• Working Voltage：AC220V 50,60Hz
• Dimensions：500mm*620mm*300mm
• Weight：20kg
• Transport Package：Double-Layer Export Carton
• Specification：390*350*255mm
• Trademark：YH
• Origin：China
• HS Code：8479819000
• Production Capacity：L=100mm, 3000-7000PCS,H

Basic Info.

Model NO. YH-2017C Model Yh-2017c Processing Range AWG30-AWG4 (0.04-20 Square mm) Function Half Strip, Full Strip, Double-Layer Strip, etc. Capacity 1800-2000 Pieces/Hour (Depending on Operating Prof Stripping Length 1mm-40mm Adjustment Accuracy 0.05mm Working Voltage AC220V 50/60Hz Dimensions 500mm*620mm*300mm Weight 20kg Transport Package Double-Layer Export Carton Specification 390*350*255mm Trademark YH Origin China HS Code 8479819000 Production Capacity L=100mm, 3000-7000PCS/H

Product Description

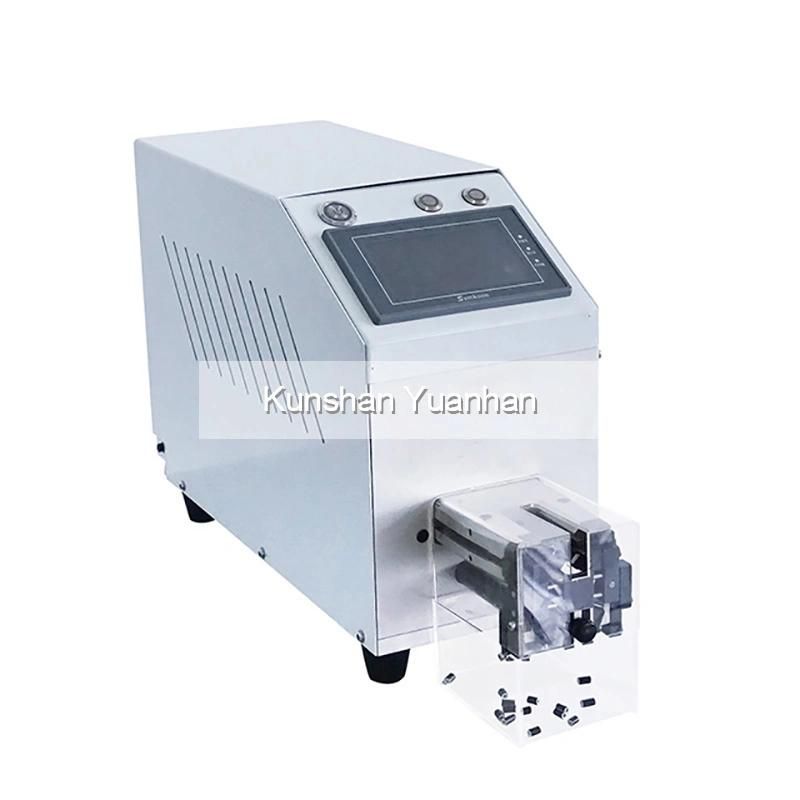

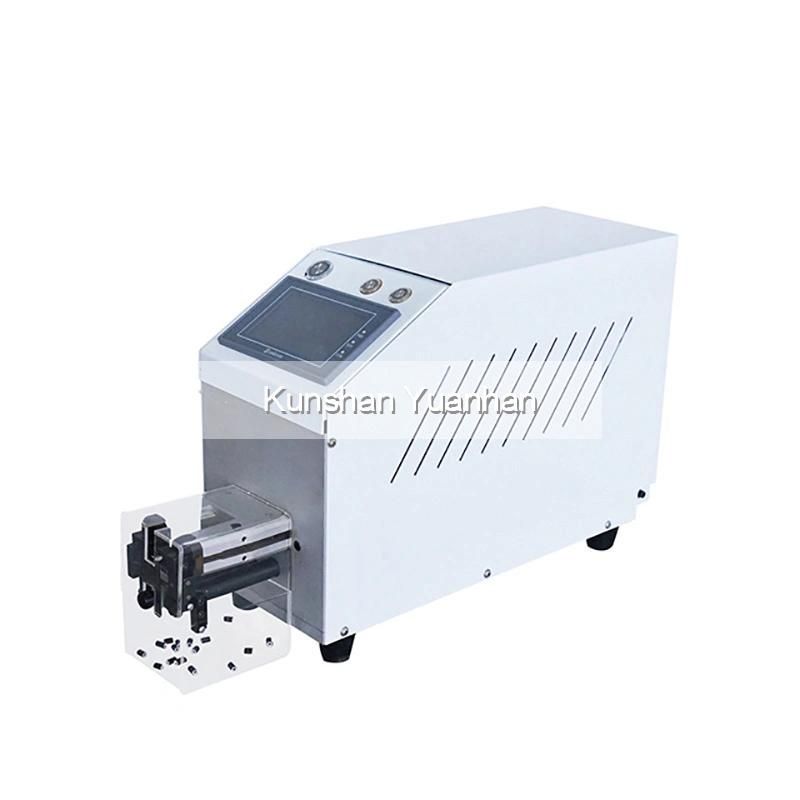

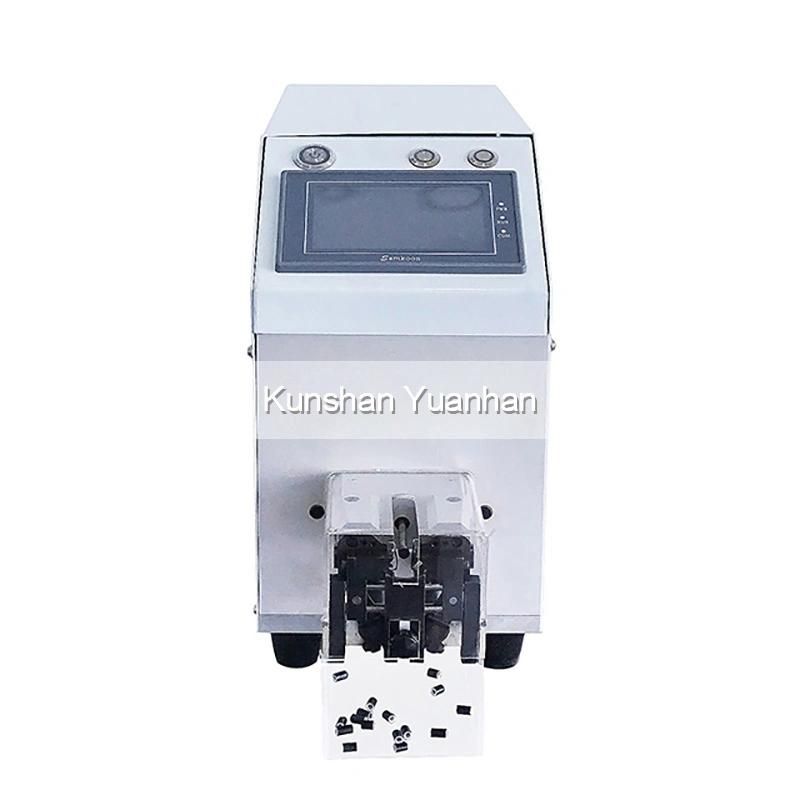

Inductive Electric Wire Stripping Machine

The YH-2017C is a pure electric wire stripping machine, which comes with multiple cable processing modes: half strip, full strip, double-layer strip and more. Processing range: AWG30-AWG4 (0.04-20 square mm).

• Pure electric wire stripping machine, high precision, simple and convenient debugging

• High accuracy, no need for foot switch

• Multiple processing modes meet different types of wire processing. (half strip, full strip, double-layer strip, etc.)

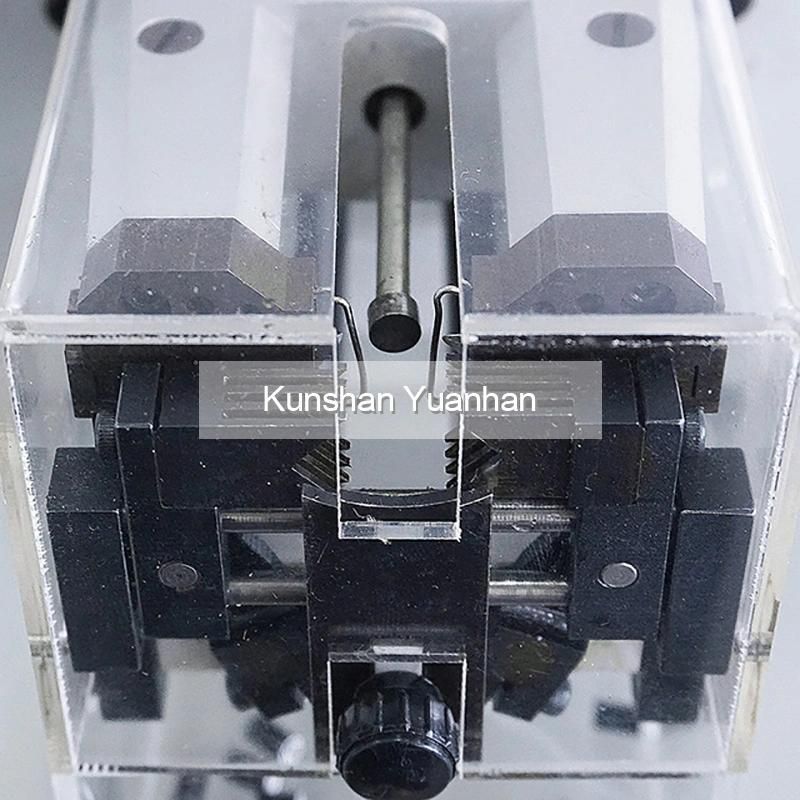

• It adopts a 90-degree V-shaped knife edge design, which has strong versatility and does not need to change the blade when processing different wires.

• Both the gripper and the knife edge adopt the translation principle to ensure that the center height remains the same when processing different wire diameters

• Up to 30 sets of processing parameters can be stored

• Processing range: AWG30-AWG4 (0.04-20 square millimeters), stripping length 1mm-40mm

Specifications:

Model	YH-2017C
Processing range	AWG30-AWG4 (0.04-20 square mm)
Function	half strip, full strip, double-layer strip, etc.
Production capacity	1800-2000 pieces/hour (depending on operating proficiency)
Stripping length	1mm-40mm
Adjustment accuracy	0.05mm
Working voltage	AC220V 50/60Hz
Dimensions	500mm*620mm*300mm
Weight	20kg



Features:

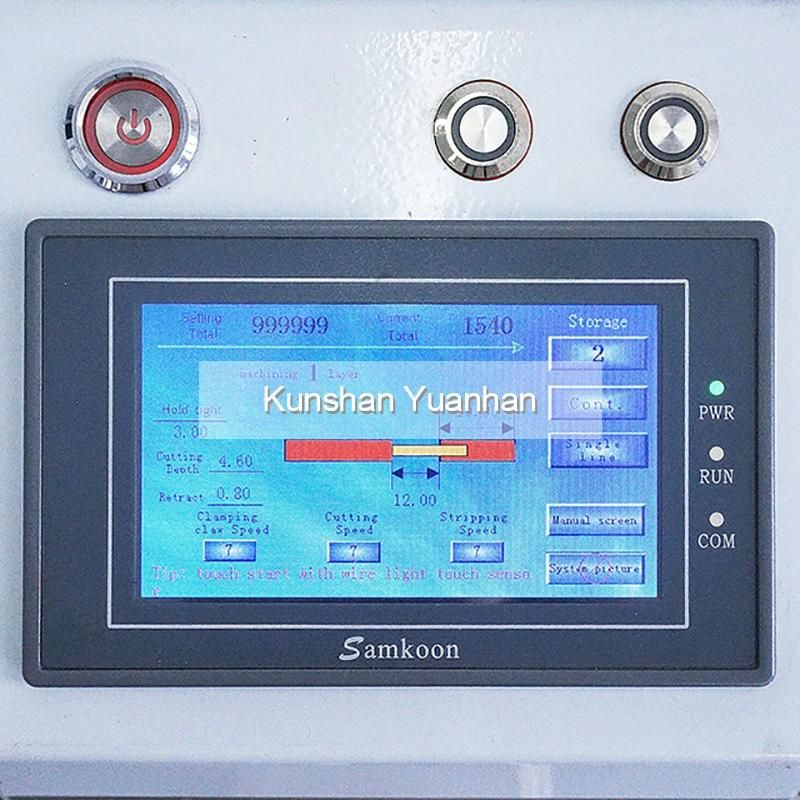

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

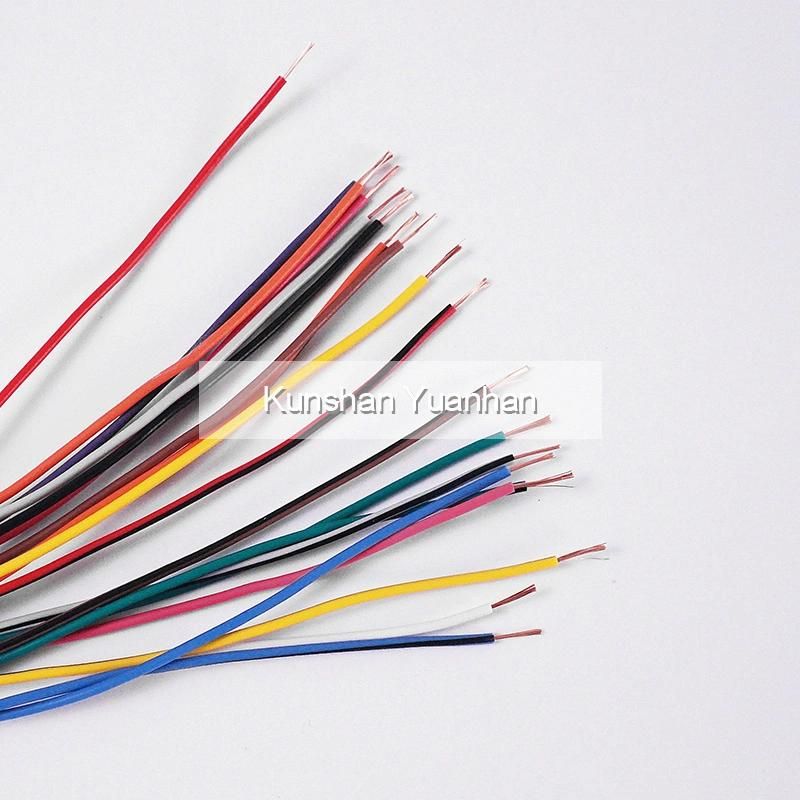

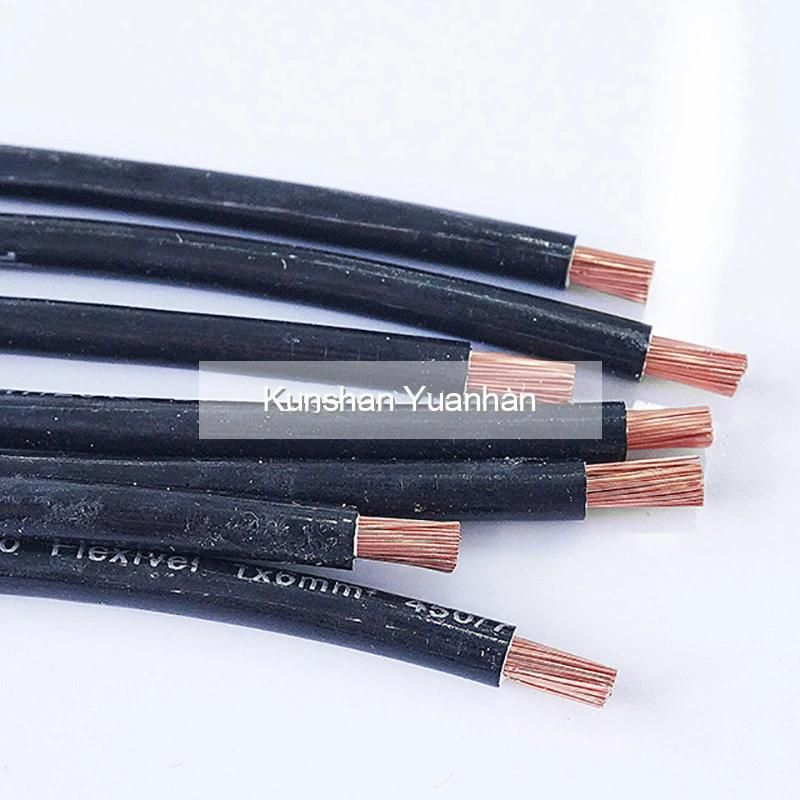

Sample: cut and strip wire automatically
