• Wire Specification：2-20mm
• Extrusion Material：PVC,PE
• Power：50HP
• Highest Output：180kg,H
• Highest Wire Speed：300m,Min
• Capstan Power：7.5HP
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Customized：Customized
• Transport Package：Wooden Box,Pallet
• Specification：cable machine
• Trademark：Newtopp
• Origin：Chinese Mainland
• HS Code：8479400000
• Production Capacity：10 Sets,Month

Equipment modelsXJ-300AXJ-500AXJ-630AXJ-800ATwisting usageit is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires,double twisting for core wires.Single wire dia(mm)φ0.08~φ0.28φ0.10~φ0.64φ0.15~φ1.04φ0.2~φ1.7Stranding section area (square milimeter)0.035~0.45 square milimeter0.05~2.5mm20.5~6mm21.0~16mm2Core wire single wire diaφ0.25~φ0.8mmφ0.75~φ1.5mmφ1.0~φ3.0mmφ1.0~φ4.0mmCore wire stranding outer diaφ0.5~φ1.6mmφ1.5~φ3.0mmφ2.0~φ6.0mmφ2.0~φ8.0mmPitch(mm)4.5-17.5(10 kinds)5.82-53.73(34 kinds)11.48-100(36 kinds)19.8-200(30 kinds)Direction of layOptional for right or leftOuter dia*bore*outer widthφ300*φ30*160Φ400*φ56*300
φ500*φ70*320φ630*φ80*360φ800*φ80*600Max rotating speed3000(6000/twist)2200(4400/twist)1600(3200/twist)1200(2400/twist)Main motor power3.7KW5.5KW7.5KW11KWInverter power3.7KW5.5KW7.5KW11KWtension control method(Mechanism friction)protectionMachine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.Brake modeElectromagnetic brakeTraversing method,Rolling ring drive units, winding pitch and breadth are adjustableoperation modePush-button controlDimension (L*W*H)2300*1000*11502800*1280*13003280*1600*16003600*1850*180

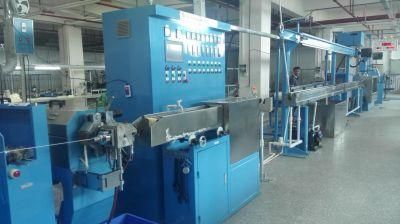

B. 70-120mm insulation extruderEquipment modelXJ-70XJ-80XJ-90XJ-120Usage:Power Wire/ computer wire/ building wire/data wire/ high frequency wire insulation/jacket sheath extrusionWire specification1.5-12mm2-20mm3-25mm10-50mmExtrusion materialPVC/SRPVC/LHNF/PE/PP/PU etcScrew parameterL/D ratio:26:1, compression ratio: 2.7-3.2, Screw material:38CrMoAIA, Vacuum heating treatment, Surface Grinding Polishing chromium platingTemperature control segments (body+head)5+35+36+36+3Power40HP50HP60HP100HPThe highest output140KG/H180KG/H240KG/H360KG/HThe highest wire speed400M/min300M/min250M/min180m/minMovable water tankExtension type movable tank, movable lenth is 300mm, over length 1.5m with single segment water dryer. Or as requirementLength of U type cooling tank7.5M7.5M10M15MAccumulate wheel parameter(11+10 grooves)250300400500Capstan power5HP7.5HP7.5HP15HPpay off typeHow may shafts, active with moter and passive without moter just as requestTake up TypeAs request

C. Cantilever single twisting machineEquipment modelXJ-630XJ-800XJ-1000XJ1250UsagePower cable, computer cable, building cable, data/high frequency cable muiti group twistingWire specification0.6-3.0mm0.6-5.0mm1.0-8mm3-10mmTwisted OD15mm20mm25mm30mmpitch rangeSet pitch on touch screen:20-250mm. PLC control, pitch is stable when it is accelerate and decelerateRotate speedMAX900RPMMAX800RPMMAX600RPMMAX400RPMPower(Motor+differential mechanism)15HP20HP25HP40HPTaping typeSingle-head gorizontal type high speed centering taping device+ double head longitudinal taping deviceTaping tensionAdopt Magnetic Clutch+PLC automatic caculation. Taping tension keep constant from start to the end, need not adjustment.Take upMovable shaft type take up, No damage during the traversing process, traversing space and distance can be set freely according to the wire specification

D. 120-150mm jacket sheath extruder (bigger machine can be made also)50+35 core wire extruderExtruder material: PVC/PE/SRPVCWire specification:AWG30-AWG24,0.8-2.8The highest wire speed:1000m/min Semi-auto take up(depends on wire dia);Use for high-speed insulation extrusion for PVC/PE/secondary colour wire and Lan cable(CAT5, CAT5E, CAT6, CAT6A, CAT7) insulation extruderOperating Direction:left or right is allowed (For example:if the take up direction is right, it will call"right hand machine" when face electric box.);Dosage of air-pressure:18m³/HrScrew parameter: L/D ratio:26:1, compression ratio: 2.7-3.2, Screw material:38CrMoAIA, Vacuum heating treatment, Surface Grinding Polishing chromium platingPay off type: as requestTake up type: as requestCentre-height:1000mm;ø50mm extruder host+35mm stripping extruderVoltage:Three-phase 410V-450 50HZ or as request

B.Core wire pair twisting

Type A pair twisting machine: XJ-500B double twisting machine with active pay off for CAT5/CAT5E cableEquipment modelsXJ-500B double twisting machineTwisting usageit apply for CAT5/CAT5E core wire pair twistingThe max.size of wire-receiving bobbin (outer diameter×total length)φ500×314Max core wire diameter Φ0.5-1.2mmLay pitch(mm)5.8~ 54.53( can adjustable by customer's need);Direction of intertwist:"S"for left,"Z"for rightRotation speed of intertwist bow(r/min)2500RPM(5000 twist)Material of intertwist bow:spring steel beltMotor4KW, frequency-envarying speed controlWire-receiving stretch force structureMagnetic power clutchThe up-and-down structure of wire-receiving wheel:manual or electricial-hydraulic typeElectrical control typePLCElectrical control operation interfacestandard electric accessoriesachine outside shape size(mm)2560×1350×1400Net weight of machine(kg)2000Main bearingNskPay off:Active pay off with motors, double shafts without back-twist
Type B pair twisting machine: XJ-500C triple twisting machine for CAT5/CAT5E/cat6 cableTriple pitches design, 1.5 times speed than traditional double twisting machine when it is with 33% back twisting rateServo electronic pitch, touch screen setting, PLC controller, accuracy within +-2%Active take up, tension stable from empty to full reel
Type C pair twisting machine: XJ-500D active back twist pay off+XJ-500B double twisting machineUsage: Apply for Lan cable specially, such as CAT5/CAT5E/CAT6/CAT6A/CAT7 and so on data cable back twist and pair twistingFeature: Back twist before pair twisting and reduce wire damaged during twisting process, XJ-500D active back twist pay off and XJ-500B double shafts pair twisting machine are linkage working.


C.Total twisting machine: XJ-630-1250mm Cantilever type single twisting machineEquipment modelXJ-630XJ-800XJ-1000XJ1250UsagePower cable, computer cable, building cable, data/high frequency cable/Lan cable cat5, cat6, cat7 muiti group twistingWire specification0.6-3.0mm0.6-5.0mm1.0-8mm3-10mmTwisted OD15mm20mm25mm30mmpitch rangeSet pitch on touch screen:20-250mm. PLC control, pitch is stable when it is accelerate and decelerateRotate speedMAX900RPMMAX800RPMMAX600RPMMAX400RPMPower(Motor+differential mechanism)15HP20HP25HP40HPTaping typeSingle-head gorizontal type high speed centering taping device+ double head longitudinal taping deviceTaping tensionAdopt Magnetic Clutch+PLC automatic caculation. Taping tension keep constant from start to the end, need not adjustment.Take upMovable shaft type take up, No damage during the traversing process, traversing space and distance can be set freely according to the wire specification
U-UTP do not need taping, but U-FTP/F-UTP/S-STP/F-FTP need taping and the taping machine as below:Model4 longitudinal taping machine for each pair tapingModel1 longitudinal taping machine for total/fully taping  PowerActive power taping,1/2 gear motor+converter, stable tension Taping tensionMagnetic powder clutch control tensionoLongitudinal aluminum foil tapeFull power put aluminum foil, tension can be adjustedSuitable materialAluminum foil tape etc

D. Jacket sheath extruder machine:XJ-70-90mm jacket sheath extruder machinequipment modelXJ-70XJ-80XJ-90Usage:Power Wire/ computer wire/ building wire/data wire/ high frequency wire insulation/ Lan cable jacket sheath extrusionWire specification1.5-12mm2-20mm3-25mmExtrusion materialPVC/SRPVC/LHNF/PE/PP/PU etcScrew parameterL/D ratio:26:1, compression ratio: 2.7-3.2, Screw material:38CrMoAIA, Vacuum heating treatment, Surface Grinding Polishing chromium platingTemperature control segments (body+head)5+35+36+3Power40HP50HP60HPThe highest output140KG/H180KG/H240KG/HThe highest wire speed400M/min300M/min250M/minMovable water tankExtension type movable tank, movable lenth is 300mm, over length 1.5m with single segment water dryer. Or as requirementLength of U type cooling tank7.5M7.5M10MAccumulate wheel parameter(11+10 grooves)250300400Capstan power5HP7.5HP7.5HPpay off typeIn order to do not stop machine and change the bobbin, it can use 2 shafts active pay off with motor, and equip the accumulator to usePrinter machineComputer-controued inkjet machineTake up TypeAs request

E. Coiling machine
 1. Linkage with jacket sheath extruder machine2. Lan cable coiling length normally is 1000 feet (305 meter)3. Coiling with special shape "8"

More cable production line such as data/high frequecy cable USB3.0/3.1, HDMI, DVI, SATA etc, please kindly contact the below information:

Dongguan NewTopp Electric Machinery Co. Ltd



Web Site:  http://dgnewtopp.en.made-in-china.com/    http://dgnewtopp.en.made-in-china.com
Add: No.286 Huaide Road, Humen town, Dongguan City, Guangdong provinc


We are looking forward to hearing from you, dear friend!
