• Model NO.：KTR-800

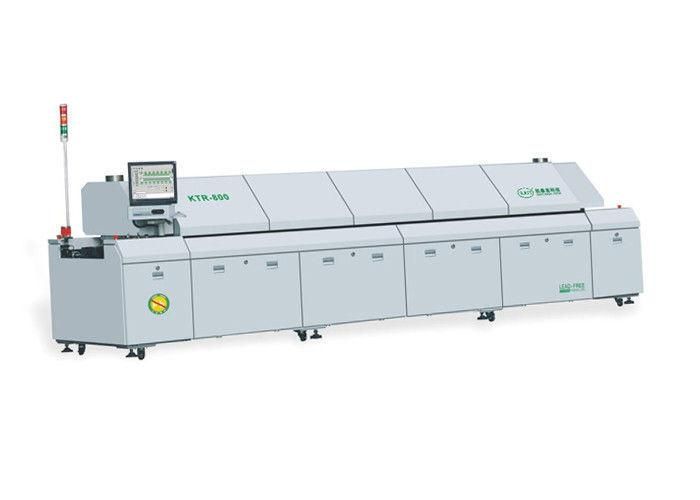

• Product Name：8 Zones Lead Free Reflow Oven Ktr-800
• Lead Time：20-50days
• Usage：SMT Assembly Line
• Quality：100% Tested
• Weight：2710kg
• Transport Package：Vacuum Packing
• Specification：5520*1430*1530cm
• Trademark：KAIT
• Origin：China
• Production Capacity：50set,Month

Model

KTR-800

Machine parameter

Dimension(L × W × H)

5520*1430*1530

Color

Computer grey

Weight

Approx 2710 kg

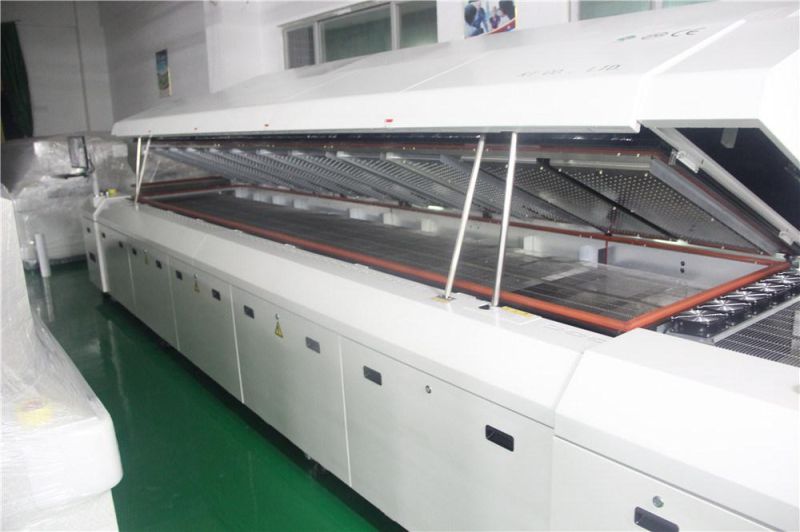

Number of heating zone

Top 8/Bottom 8

Length of heating zone

3110mm

Number of cooling zone

Top 3/Bottom 3

Rectifying plate structure

Small circulation

Exhaust volume requiement

11m³/min*2(Exhausts)

Control system

Power supply requiement

3 phase ,380v 50/60HZ(Option:3 phase ,220v 50/60HZ

Total power

64KW

Startup power

30KW

Normal power consumption

9KW

Warming Time

Approx:20min

Temperature control range

Room Temperature -300ºC

Temperature control method

PID close loop control + SSR driving

Temperature control precision

±1ºC

Temperature deviation on PCB

±1.5ºC(by RM board test standard)

Data storage

Process data and status storage

Abnormal alarm

Abnormal temperature(extra-high/extra low temperature after constant temperature)

Board dropped alarm

Singal light(yellow-warning;green normal;red -Abnormal

Conveyor system

Rails structure

Overall sectional type

Chain structure

Double buckle for preventing board jammed

Max width of PCB

400mm(option:460mm) dual-rail 300mm*2

Range of rail width

50-400mm(option:50-460mm) dual-rail 300mm*2

Component height

Top 30/Bottom 30mm

Conveyor  direction

L→R(option:R→L)

Conveyor  rail fixed type

Front rail fixed(option: Rear rail fixed)

PCB conveyor direction

Air-reflow=chain+mesh(N2-reflow=chain option:mesh)

Conveyor height

900±20mm

Conveyor speed

300-2000mm/min

Auto-lubrication

Multi-lubricating mode can be chosen

Cooling system

Cooling method

Firced air    Water chiller
