• Model NO.：KE-2080L
• Type：High-speed Chip Mounter
• Part No.：Ke-2080L
• Lead Time：1-2 Weeks After Payment
• Shipping Ways：DHL, FedEx, TNT, UPS, EMS, by Sea, by Air
• Transport Package：Normal Packing
• Trademark：JUKI
• Origin：Japan
• Production Capacity：50 PCS , Year

Basic Info.

Model NO. KE-2080L Type High-speed Chip Mounter Part No. Ke-2080L Lead Time 1-2 Weeks After Payment Shipping Ways DHL, FedEx, TNT, UPS, EMS, by Sea, by Air Transport Package Normal Packing Trademark JUKI Origin Japan Production Capacity 50 PCS / Year

Product Description

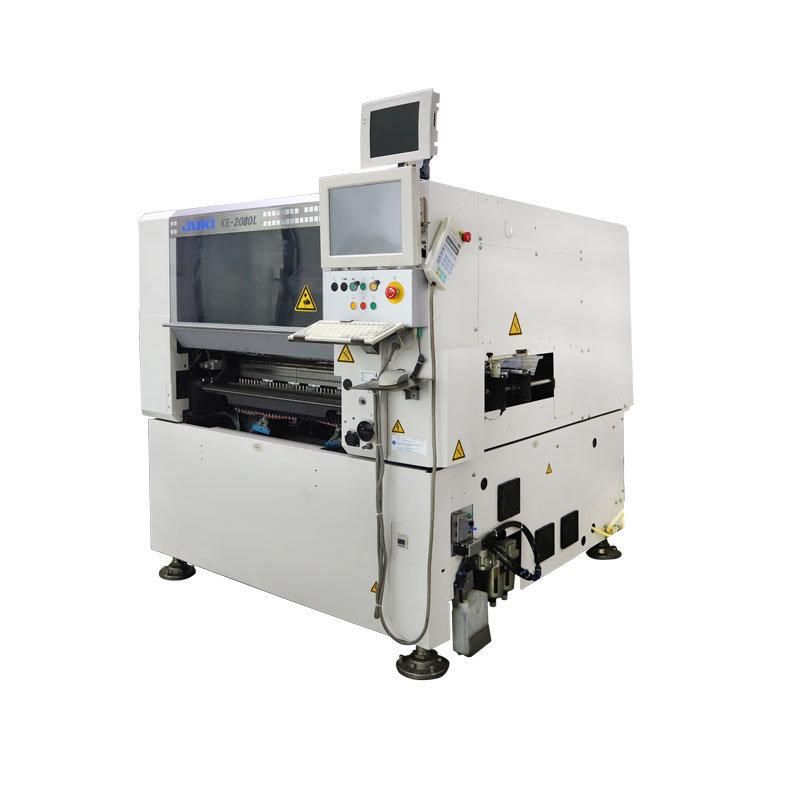

 SMT pick and place machine  JUKI KE-2080L Chip Mounter









• Fixing Rail: Front Fixed
• Components height : 12mm
• Placement speed: 16,700CPH (IPC 9850)
• Feeder inputs : Max. 80 on 8mm T/F6

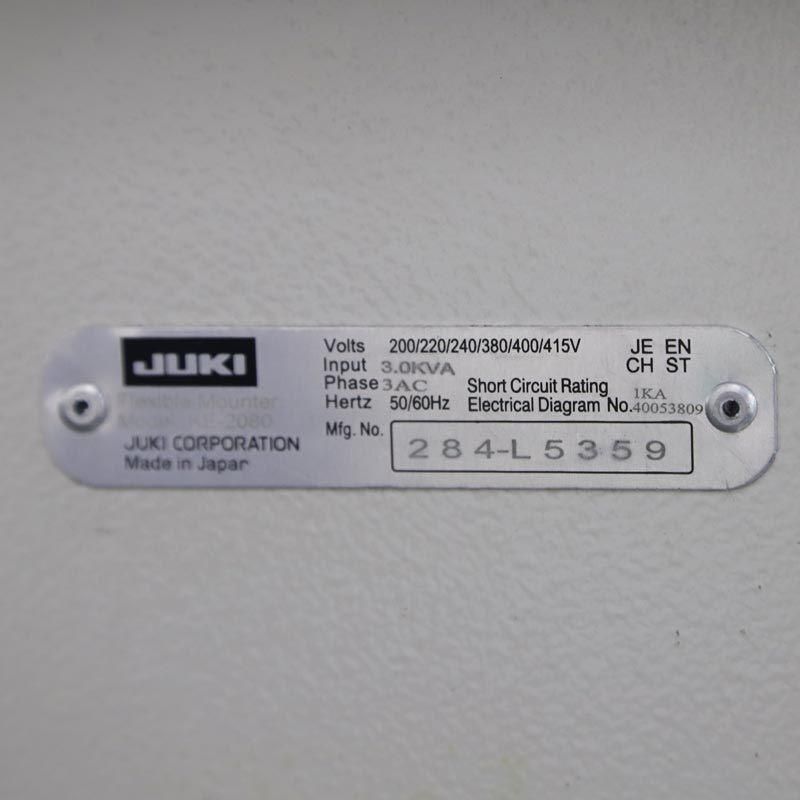

• Power supply : 200 to 415 VAC, 3-phase
• Apparent power : 3kVA
• Operating air pressure : 0.5±0.05Mpa
• Air consumption : 403L/min (Opt.:Vacuum Pump 50L/min)

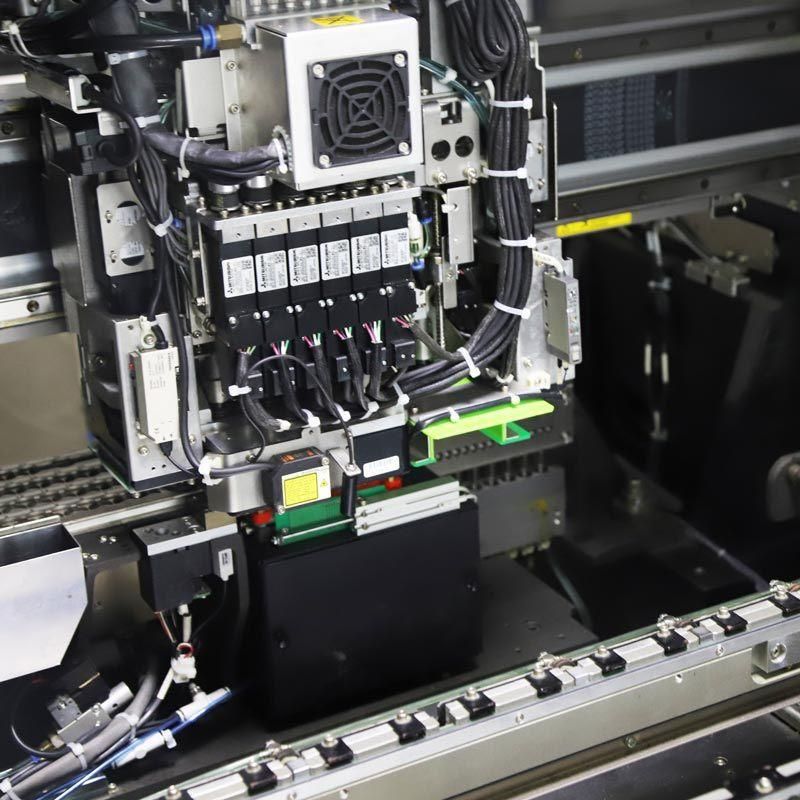

• One multi-nozzle laser head (6 nozzles)
• Machine dimensions  : 1,500×1,500×1,455mm
• Mass (approximately) : 1,540kg

Download Details




Feature :

• The KE series meets the needs of a wide variety of applications with the highest performance.
  High-speed, high-accuracy component centering using unique laser technology and powerful vision processing.
• The mounter supports a wide variety of component types due to its highly general versatility, and it can place a subminiature component on a board at high speed and highly precisely. High-precision image recognition/placement of an IC component or an irregularly-shaped component is also possible: this allows you to establish a flexible production line. (Image recognition of a component is an optional function.)
