• Model NO.：Jaguar N300
• Specification：L2800*W1250*H1650mm
• Origin：China
• Production Capacity：30sets,Month

Basic Info.

Model NO. Jaguar N300 Specification L2800*W1250*H1650mm Origin China Production Capacity 30sets/Month

Product Description

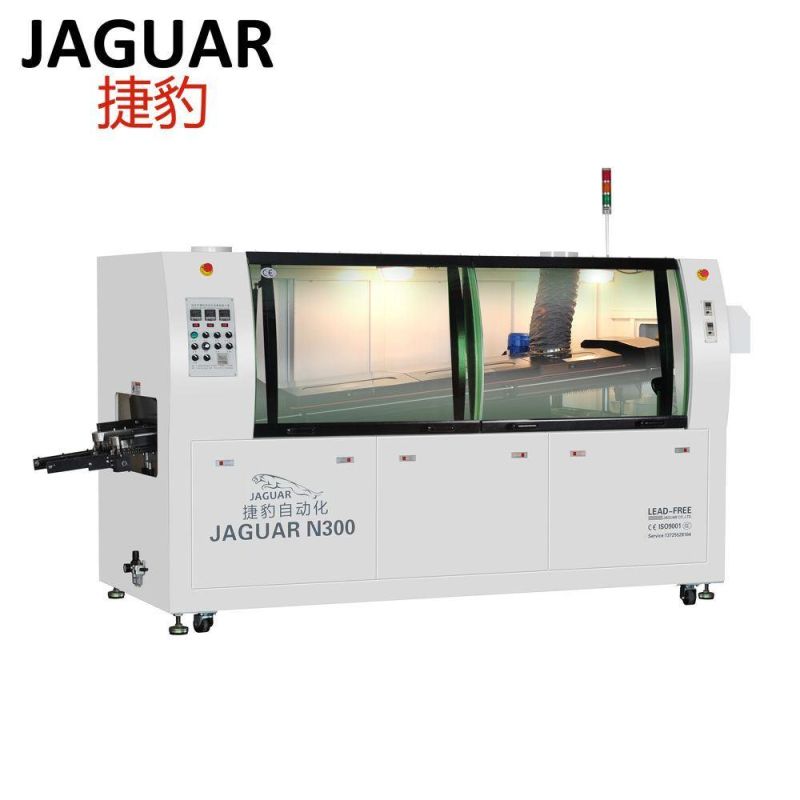

               lead-free dual wave soldering machine

Specification:

Model No.	JAGUAR N300
Number of heating zones	3
Length of heating zones	1450mm
Body size	2950(L)*1250(W)*1560(H)
Outside dimension	3750(L)*1250(W)*1560(H)
Weight	1000KG
Total/running power	19KW/5-7KW
Air supply	0.5MPa
Preheating method	IR(standard)/Hot air
Preheating power	220V 6KW
Control  method	PC +PLC/press keys/Touch screen
Range of temp. control	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder type	Lead-free / Sn-Pb
Solder pot capacity	280KG
Solder pot temperature	300ºC
Solder power	380V 9KW
Solder temp. control method	PID&SSR
Wave crest drive power	1KW 220V
Warm-up time of solder	About 120mins for setting 250ºC
PCB  width	50-300mm
Convey  speed	0-1800mm/min
Convey  direction	L→R (R→L optional)
Convey   angle	4-7 º
Flux pressure/capacity	3-5 bar/5.2L

 INTRODUCTION:
1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
3.Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
4.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
5.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
6.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
7.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
8.With black box memory function, the machine can always store the production management records, improve work efficiency.
9.Automatic claw cleaning function ensure the cleanliness of claws.
10.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
11.Lead-free solder furnace with independent design, environmental protection and safety,
     easy to clean.

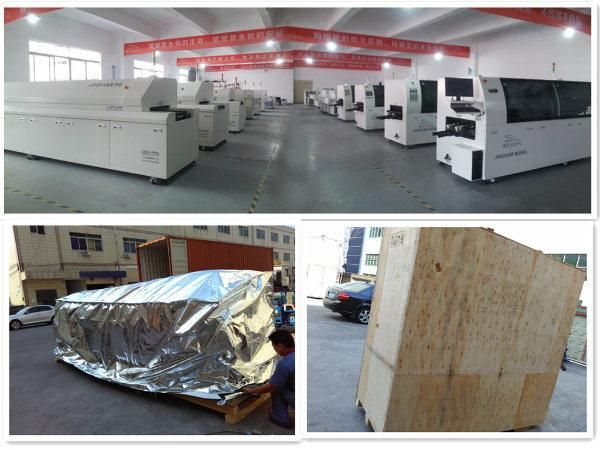

Packaging & Shipping

                        vaccum packing + wood

Our Services

Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.

In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.

Product during the warranty period, under normal storage, maintenance, use, if quality problems, responsible for the free repair or replacement, and provide the relevant maintenance knowledge; as a result of improper use or damage caused by the product does not work normally, the Company provides paid service. Product warranty period is not, it will provide a paid service.
