Automatic BLDC Armature Coil Winding Machine for Wheel Hub Motor Stator

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：220V
  • Warranty：1 Year
  • After-sales Service：Overseas Service Center Available
  • Application：Wheel Motor
  • Function：Stator Coil Winding Making
  • Stator Diameter：80~200mm

Base Info

  • Model NO.：DCRX1-200S
  • Power Supply：220V
  • Color：Ral9010 or as Per Customer Requirement
  • Automatic：Automatic
  • Certification：CE
  • Transport Package：Ply-Wooden Case
  • Specification：ISO
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100PCS,Year

Description

Prouduction Name wheel motor stator coil winding machinewinding no.:1~9Stator OD:80~200mmStator height: 18~35mmWire diameter:0.2~1.3mmPower supply: 220V 50/60HZ 1.5KWDimension:1300x800x1500mmWeight:700KG



(2) Application:

The BLDC external armature coil winding machine  for wheel motor stator is suitable for wheel motor coil winding.

The wheel hub motor is Uses in current and future vehicles.They are commonly found on electric bicycles.



(3) Machine function and characteristic:

The bldc armature coil winding machine is designed for the wheel motor coil winding. It equips with the servo control system. It could diagnose the fault, count the output, etc. The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed. The machine is easy to operate and maintain.

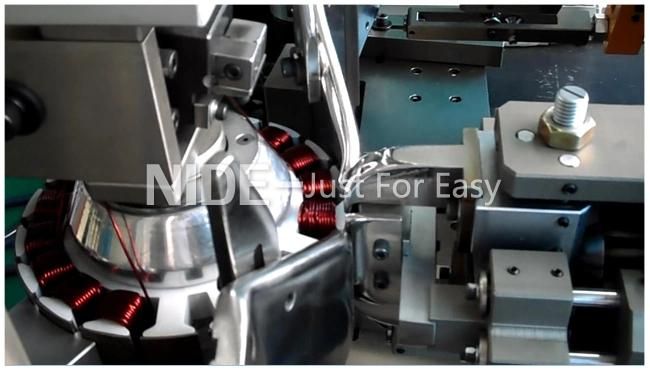

BLDC armature coil winding machine diagram display:
Automatic BLDC Armature Coil Winding Machine for Wheel Hub Motor Stator

Automatic BLDC Armature Coil Winding Machine for Wheel Hub Motor Stator
Automatic BLDC Armature Coil Winding Machine for Wheel Hub Motor StatorAutomatic BLDC Armature Coil Winding Machine for Wheel Hub Motor StatorAutomatic BLDC Armature Coil Winding Machine for Wheel Hub Motor Stator
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Automatic BLDC Armature Coil Winding Machine for Wheel Hub Motor Stator
Automatic BLDC Armature Coil Winding Machine for Wheel Hub Motor Stator
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
