• Model NO.：HPC-2020
• Wire Range：AWG32-AWG14
• Crimping Force：2 Ton
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Function：Abrasion Resistance
• Customized：Customized
• Transport Package：Wooden Case:1600mm( L ) *1400mm( W ) *1900mm( H
• Specification：SGS, ISO
• Trademark：Hiprecise
• Origin：Xiamen, China
• HS Code：8537101990
• Production Capacity：30 Sets , Month

Basic Info.

Model NO. HPC-2020 Wire Range AWG32-AWG14 Crimping Force 2 Ton Precision High Precision Demoulding Automatic Heating System Electric Function Abrasion Resistance Customized Customized Transport Package Wooden Case:1600mm( L ) *1400mm( W ) *1900mm( H Specification SGS, ISO Trademark Hiprecise Origin Xiamen, China HS Code 8537101990 Production Capacity 30 Sets / Month

Product Description

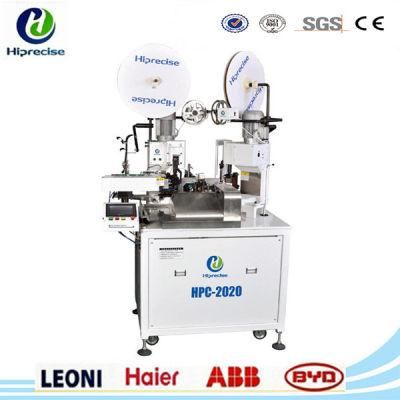

Automatic Terminal Crimping Machine (HPC-2020 both ends crimping )

1. Applicable for home appliance and automobile harness processing.

2. Applicable Wire ranges: 0.03-2.0mm² (AWG32-AWG14)

3. Productivity: MAX: 3200 PCS/H ( L< 300 mm)

4. Adopt Japan THK linear guide, Japan SUMITOMO precise servo reduction gears to ensure high accuracy and long life of the whole machine.

5. Adopt Japan SMC pneumatic elements, high reliability.

6. Touch man-machine graphics operation screen, visualized and concise.

7. Adopt Japan YOKOGAWA high-performance programmable controlling technology, Japan MITSUBISHI servo and Japan SANYO stepping controlling technology. The machine is stable, reliable and the processing accuracy is high.

8. Adopt the frequency conversion controls terminal crimping machine to accomplish power saving and low noise.

Model	HPC-2020
Cutting Length	40mm-99999mm
Stripping Length	Front end :1.0mm-10.0mm; Rear end:1.0mm-17.0mm
Cutting Accuracy	≤±(0.5+0.002*L) (Depending on equipment adjusting and wire materials)
Wire Range	0.03-2.0mm²(AWG32-AWG14)  MAXΦ3.4mm
Crimping force	2 ton
Power	AC220V 50Hz  10A
Air Source	>0.5Mpa
Air Consumption	140NL/min
Dimensions	870mm(W)×1300mm(L)×1450mm(H)
Weight	500Kg
