Full Automatic Inslot Needle Coil Winder BLDC Stator Winding Machine with Four Stations

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：380V
  • Size：Middle Size
  • Control Method：Touch Screen
  • Color：Customized
  • Air Pressure：0.5MPa~0.8 MPa
  • After-Sales Service：Overseas Service Center Available

Base Info

  • Model NO.：ND-RXN4-60(132)
  • Condition：New
  • Working Stations：Four
  • Weight：About 400kg
  • Automatic：Automatic
  • Transport Package：Plywooden-Case
  • Specification：customized
  • Trademark：NIDE
  • Origin：China
  • HS Code：8468800000
  • Production Capacity：100 Sets,Year

Description

ItemParameterProuduction name:four working stations BLDC brushless motor stator winding machineWire diameter:0.13mm~1.5mmMax. winding speed:400~800r/minMax.wire section number:5Stack length:5mm~125mmStator ID:Φ10mm~Φ100mmStator OD:Φ30mm~Φ150mmPole Number:2,4,6,8Air source:0.5MPa~0.8 MPaVoltage:380V/50HZ, three phase four wiresPower:26KWMachine dimension(LxWxH):1690mm×1260mm×2020mmWeight:≈400Kg

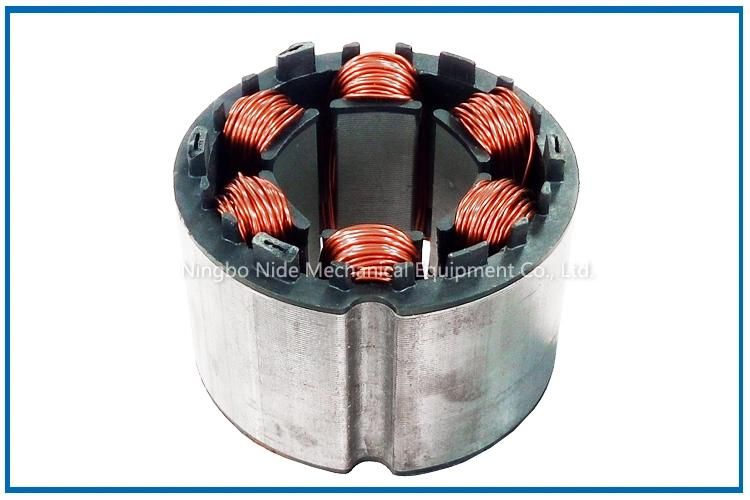

Stator coil winding machine for stator:Full Automatic Inslot Needle Coil Winder BLDC Stator Winding Machine with Four Stations

Full Automatic Inslot Needle Coil Winder BLDC Stator Winding Machine with Four Stations
Full Automatic Inslot Needle Coil Winder BLDC Stator Winding Machine with Four StationsFull Automatic Inslot Needle Coil Winder BLDC Stator Winding Machine with Four StationsFull Automatic Inslot Needle Coil Winder BLDC Stator Winding Machine with Four Stations
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Full Automatic Inslot Needle Coil Winder BLDC Stator Winding Machine with Four Stations
Full Automatic Inslot Needle Coil Winder BLDC Stator Winding Machine with Four Stations
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
