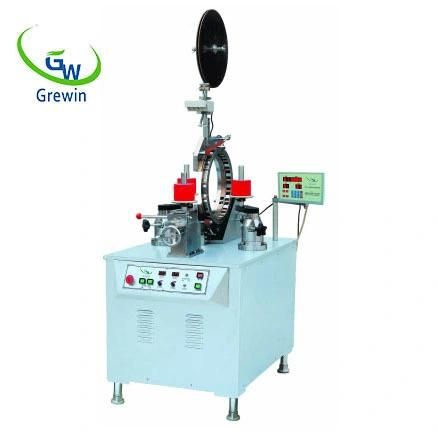

Big Thick Wire Electric Copper Coil Toroid Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Voltage：220V
  • Wire Diameter：1.0-4.0mm
  • Max.Final Coil.O.D：130-650
  • Min.Final Coil.I.D：60
  • Max.Finalcoil Height：150
  • Controller Storage Capacity Programs：29 Sets

Base Info

  • Model NO.：GWM-0619
  • Max.Taping Speed：150rpm
  • Tape Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：900*600*1350
  • Weight：240kg
  • Automatic：Automatic
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton with Strong Pallet
  • Specification：VDE, CE
  • Trademark：Grewin
  • Origin：Tianjin
  • HS Code：85045000
  • Production Capacity：1000 ,Month

Description

Wire diameter1.0-4.00Max.winding speed150rpmMax.final coil.O.Dφ130-650Wire spacingProportional linkageMin.final coil.I.Dφ60Supply voltageAC 220V(50Hz)Max.finalcoil height150Mechanical  dimensions  Gear type automatic wrapping insulating tape machine

Big Thick Wire Electric Copper Coil Toroid Winding Machine

 Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550×500×1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)
(unit): mm

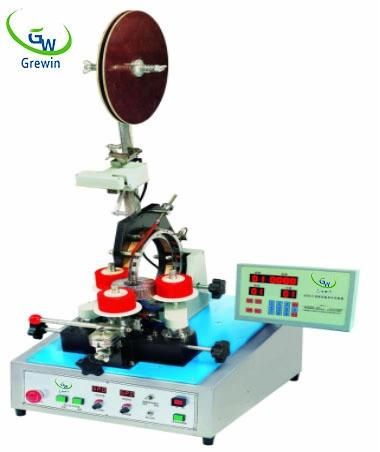

5.GWTM-0418 Gear type automatic wrapping insulating tape machine

Big Thick Wire Electric Copper Coil Toroid Winding Machine

 Tape width15(20,25,30)Max.taping speed120rpmMax.final coil.O.Dφ130-650Tape spacingProportional linkageMin.final coil.I.Dφ60Supply voltageAC 220V(50Hz)Max.finalcoil height150Mechanical  dimensions9000×600×1800 Controller storage
capacity Programs29 (set)Weight240kgGWTM-0418 (taping machine/Mag.OD.400)
(unit): mm

Of course we have other models, please contact us if you need.
