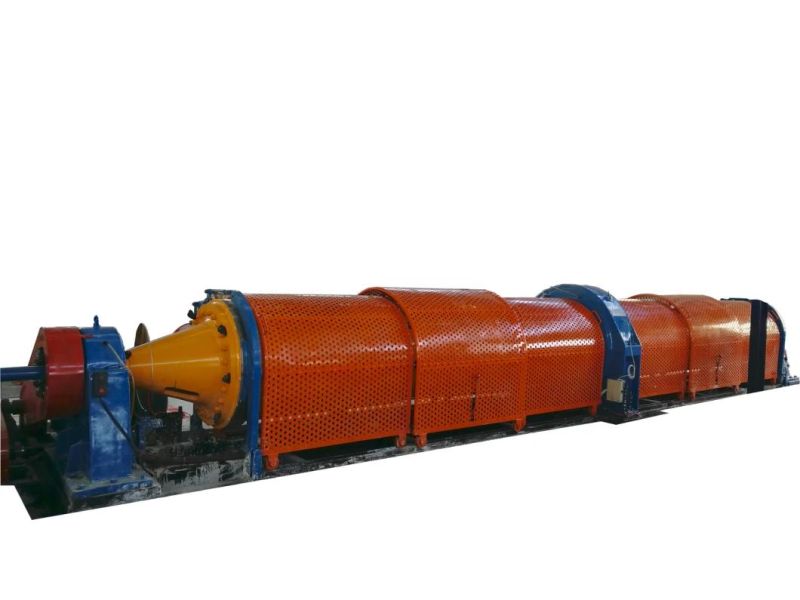

High Speed Sector Conductor Tubular Stranding Machine for Copper

Guangdong Chipeng Electrical Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Single Strand Diameter：1.2~5.0mm
  • After Stranding Diameter：3.0~15mm

Base Info

  • Model NO.：JGG
  • Cage Speed：300r,Min
  • Traction Wheel Diameter：1250mm
  • Traction Speed：13.2~158.4m,Min
  • Stranding Pitch：33~396mm
  • Pay-off Bobbin：Pn630
  • Take-up Bobbin：Pn1600
  • Central Height：700mm
  • Bare Wire Diameter：1-4mm
  • Transport Package：Standard International Shipment Packing
  • Trademark：CP
  • Origin：Foshan
  • HS Code：8479400000
  • Production Capacity：8 Sets,Month for Cable Stranding Machine

Description

No.Parameter nameUnitJGG400/6+1 TypeJGG500/6+1 TypeJGG630/6+1 Type1Wire-core diametermmCopper 1-4
Aluminium 1.5-5Copper 1.4-4
Aluminium 1.5-5Copper 1.5-4
Aluminium 1.8-52Max Wiring diametermm2025303Cage speedr/min9008007004Wiring pitchmm20-28522-32924-3655Wire speedm/min18-256.517.6-263.216.8-138.46Pay-off bobbinmmPN400PN500PN6307Take-up bobbinmmPN800-PN1600PN800-PN1600PN800-PN16008Taping head speedr/min128-2380
(No stage)300-2155
(No stage)250-2000
(No stage)9Taping pitchmm7-20048-8778-102210Central heightmm700700700Application of the equipment:The machine is suitable for copper wirem aluminum wire, ACSR stranding, also can be used in insulated cores stranded and small and medium-sized wires refractory wrapped.
