• Model NO.：R2QL1-120,150
• Air Pressure：0.6~0.8MPa
• Power：20kw
• Temperature：0~40oc
• Name：Coil Winding and Inserting Machine
• Automatic：Automatic
• Certification：CE

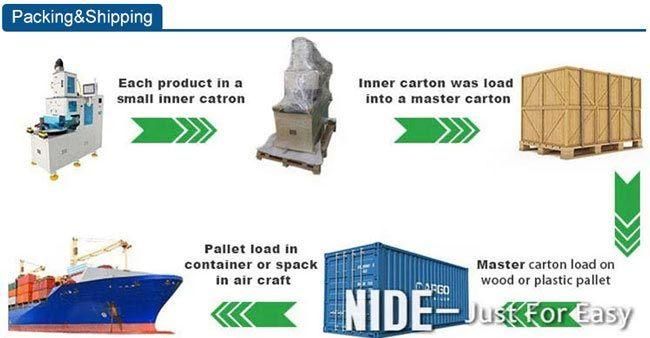

• Transport Package：Wooden Case
• Specification：4500kg
• Trademark：NIDE
• Origin：China
• HS Code：8479811000
• Production Capacity：40 Sets,Year

Max stator O.D

≤φ150mm

Stator I.D

≤φ110mm

Stator stack length

30-120mm

Slot number range

8~48 slots

Appropriate Wire

0.18-φ1.2mm

Height of Coil3

Appropriate wire

Copper wire/Aluminum wire

Winding inserting modechained/same corePitch time≤40s/pc

Voltage

380V50/60Hz

Power15Kw

Air source

0.6-0.8MPa

Machine productivity

400pcs/ 8 hours

Machine Dimension

2000×(W)1300×(H)2300mm

Weight

≈4000Kg

(2) Application
It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor and other motors.

(3)  Machine mainfunction and characteristic
This machine is can do coil winding, coil inserting and wedge inserting. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.  This machine can detect the wire coating damage. The inserting station is controlled by servo motor. The parameter can be set in the touch screen.With serval station working simultaneously, this machine is efficiency and saves labor cost.

(4) Competitive advantages
Variety of application, easy operation.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
We could customize machine for our customer as per their requirement.
We have Overseas Service Center.

(5)Information needed for stator coil winding and inserting machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Wire connection drawing
4. Stator application
5 Required productivity
6 Other technical requirement

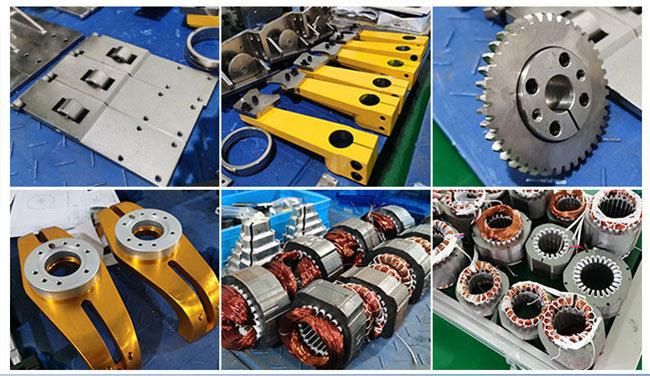

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
