• Model NO.：TY-100
• Installation：Desktop
• Driven Type：Electric
• Product Name：LED Die Bonder Machine
• Production Cycle：46ms
• Position Accuracy of Bond：25um
• Application：LED Die Bonder Machine
• Applicable Chip Size：3mil X 3mil~ 50mil X 50mil (0.127mm X 0.127mm~ 1.2
• Voltage：AC220V,50Hz
• Weight (Kg)：1300
• Power(W)：1300W
• Transport Package：Exporter Wooden Case
• Specification：1520*1000*1700mm
• Trademark：TIANYU
• Origin：Dongguan
• HS Code：8486402900
• Production Capacity：100,Month

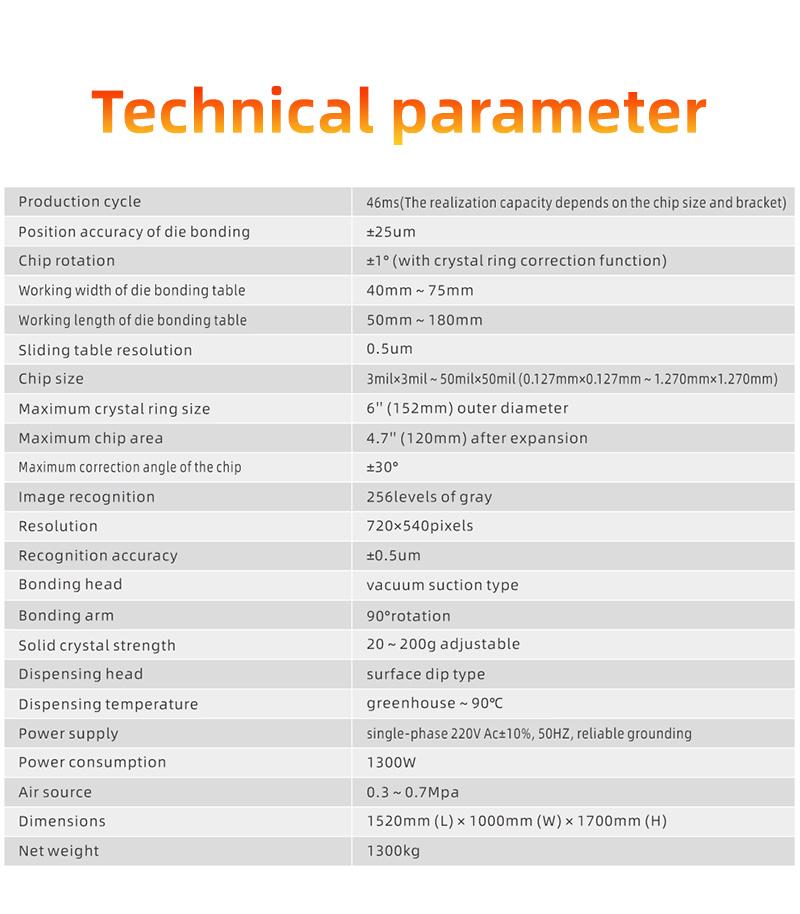

Basic Info.

Model NO. TY-100 Installation Desktop Driven Type Electric Product Name LED Die Bonder Machine Production Cycle 46ms Position Accuracy of Bond 25um Application LED Die Bonder Machine Applicable Chip Size 3mil X 3mil~ 50mil X 50mil (0.127mm X 0.127mm~ 1.2 Voltage AC220V/50Hz Weight (Kg) 1300 Power(W) 1300W Transport Package Exporter Wooden Case Specification 1520*1000*1700mm Trademark TIANYU Origin Dongguan HS Code 8486402900 Production Capacity 100/Month

Product Description

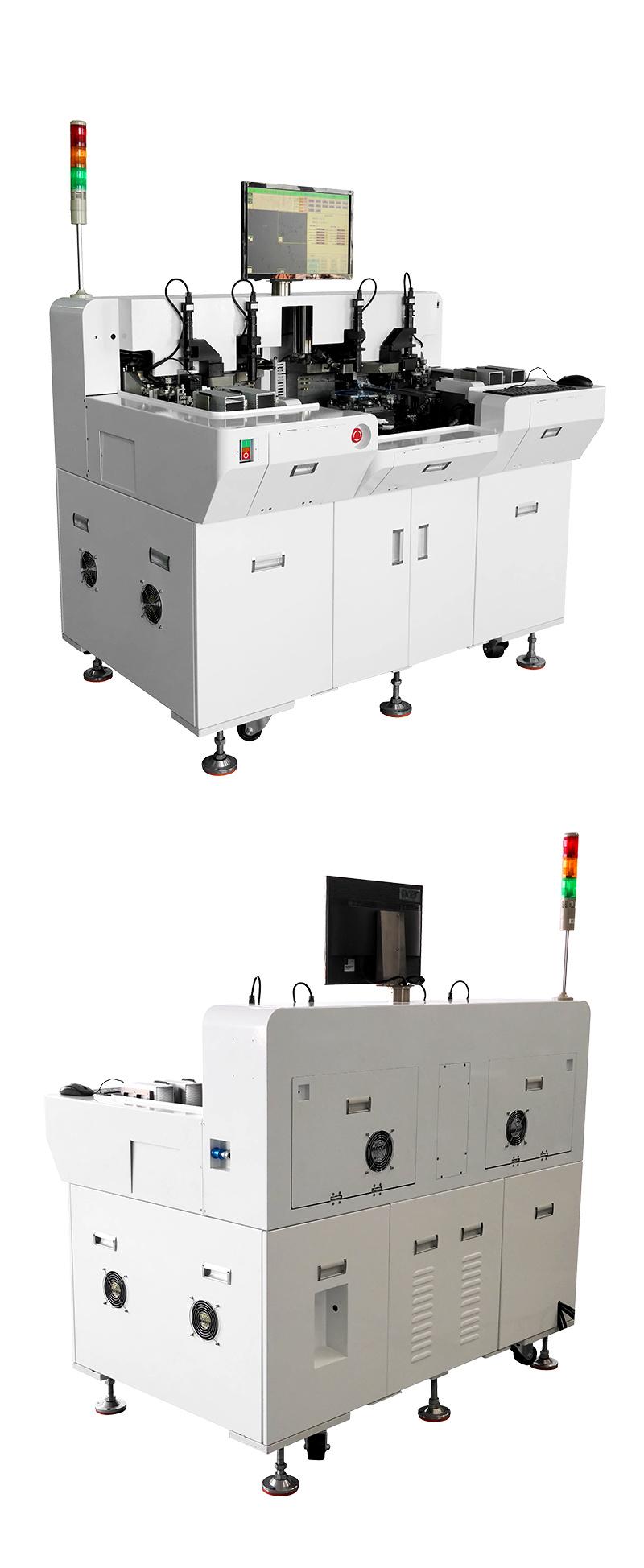

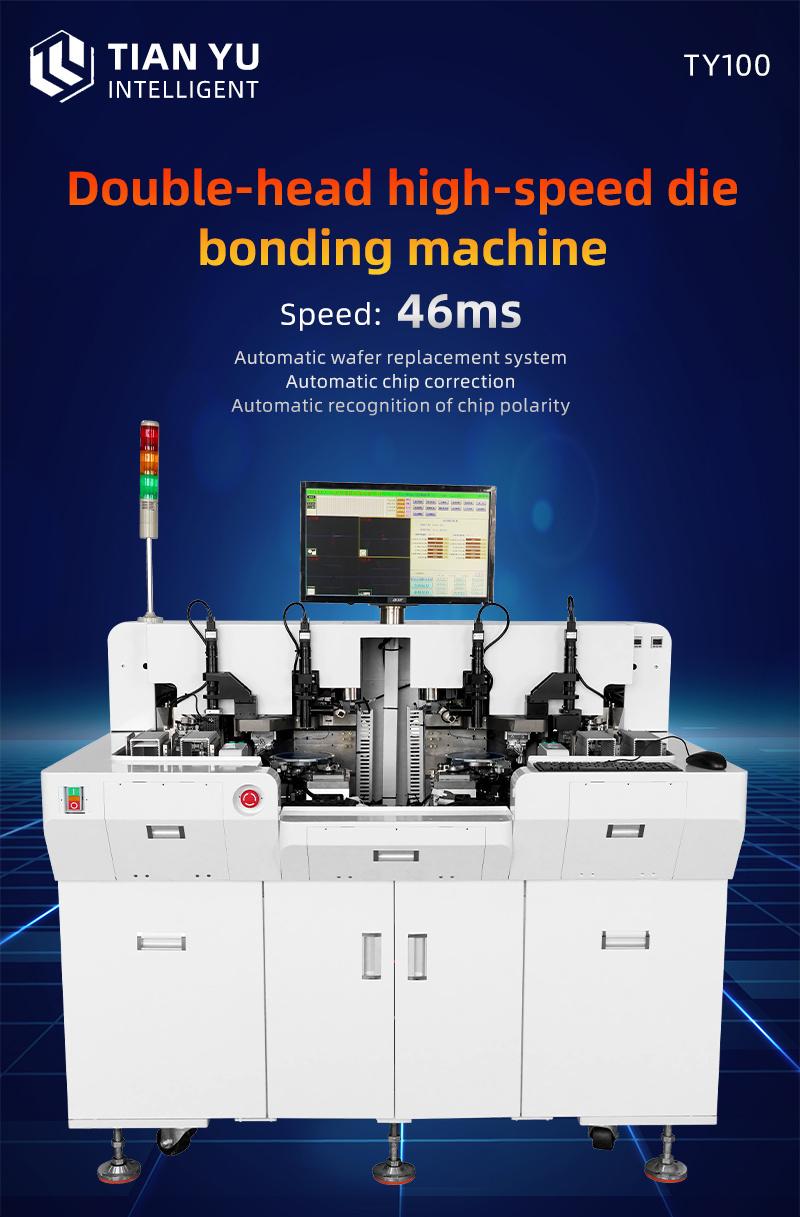

TY100 Double Head Die Bonder MachineThe basic working principle of the equipment:

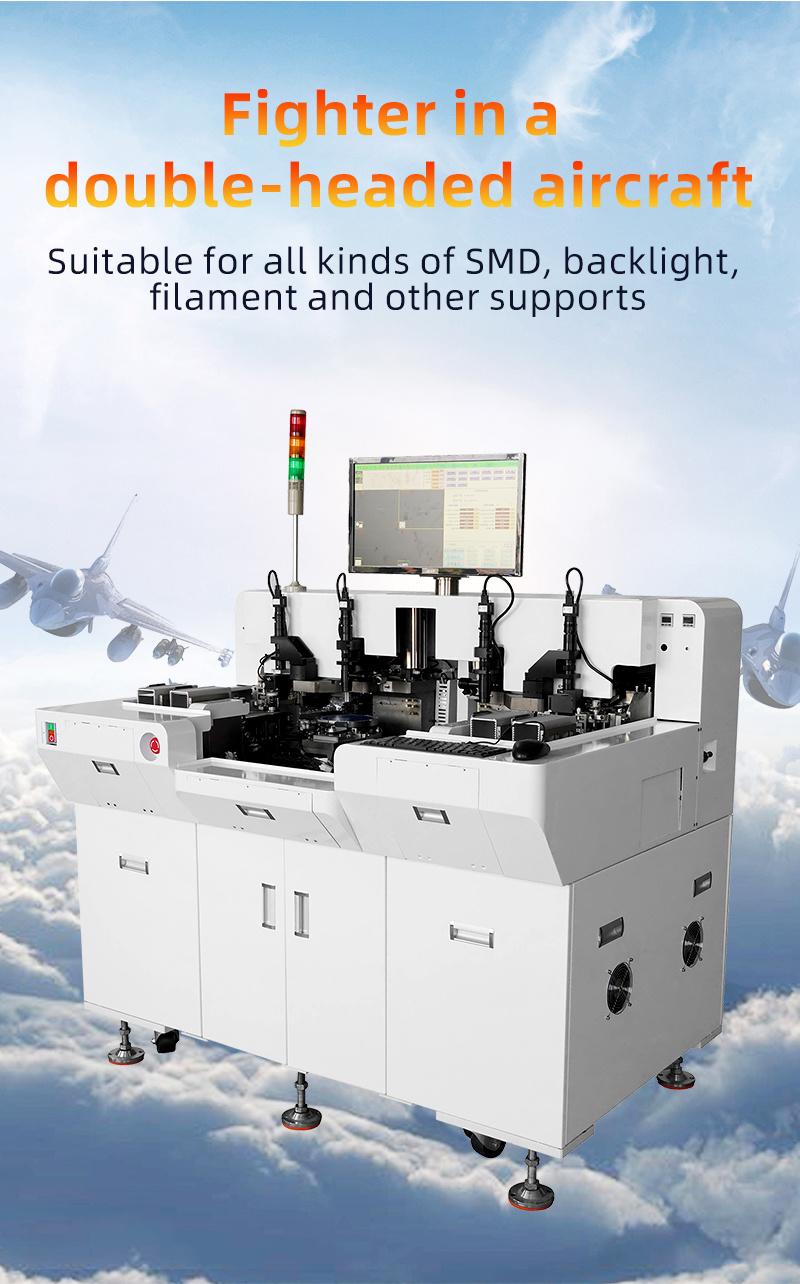

double head high speed die bonder machine has passed certification, which is suitable for all kinds of SMD, backlight,
filament and other productsFully automatic loading and unloading, suitable for SMD, 1W and integrated high-power COB surface light
source, triode and other
flat support products Modular design, new optimized layout, focus on quality, with the best stable performance You can flexibly
choose different configurations such as four crystal rings, double dispensing heads, double glue plates, 25cm long brackets, etc.,
to create the most suitable products for customers Brand-new tying head design, fast die bond cycle up to 46msFAQ1.Q: Are you a factory or trading company?A: We are a factory which license of import & export. 2.Q: Where is your factory located? How can I visit there?A: Our factory is located in Dongguan City, Guangdong Province, China.The nearest airport is Shenzhen Airport (25 minutes by car). We can pick you up at that airport. Welcome to visit us! 3.Q: How long is the mechanical warranty period?A: Complete after-sales service system, the whole machine is guaranteed for one year, and free replacement parts. 4.Q: How about the installation? Do you have after-sale service?A: We will send professional technician to your company to install the machine and train your staff until they could operate the
machine independently. 5.Q:How long we will get the machine?
A: Delivery time up machine machine model, standard machine normally can shipping out within 10days, special machine up to our PI
confirmed delivery date. And after shipping you just need wait the ship container arrived to you.
