Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：380V
  • Winding Station：2 Rotary Working Station
  • Wire Diameter Range：0.17-1.2mm
  • Max Winding Speed：3000,Rpm
  • Circle：0.1
  • Weight：1100kg

Base Info

  • Model NO.：RXL1-160
  • Dimension：1800 X1100 X2200mm
  • After-Sales Service：Overseas Service Center Available
  • Machine Color：Ral9010 or as Per Customer Requirement
  • Automatic：Automatic
  • Certification：CE

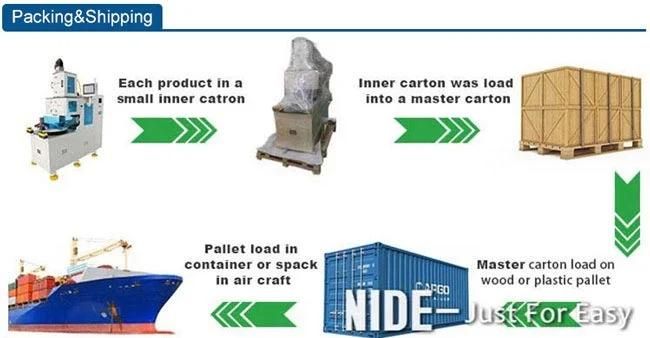

  • Transport Package：Ply-Wooden Case
  • Specification：ISO
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Year

Description


Wire diameter range
0.17-1.2mm
Max winding speed
3000/rpm
Circle
0.1
Power
380V- 50/60HZ
Weight1100kg
Air pressure
0.5mpa
Dimension
1800 X1100 X2200mm

II.  Main components
Servo motor: Mitsubishi
Control system: Yitu Taiwan
Touchscreen: Tongtai
Sensor: Autonics
Switch and Button: Schneider
Other electric parts: Delixi /Schneider

III.  Machine main function and characteristic
l. Winding tooling: each machine has one set winding tooling and three vertical winding forms.
2. The whole set of tooling can be changed, and it takes about 15min.
3. The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
4. Allow three wires winding simultaneously.
5. Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
6. The working rotation speed can be set. Machine has no distinct vibration and noise.
6. Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
7. PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
8. X and Y spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
9. Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

Vertical type coil winding machine

Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine
Automatic Single Phase Motor Vertical Type Stator Coil Winding MachineAutomatic Single Phase Motor Vertical Type Stator Coil Winding MachineAutomatic Single Phase Motor Vertical Type Stator Coil Winding Machine
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine
Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine

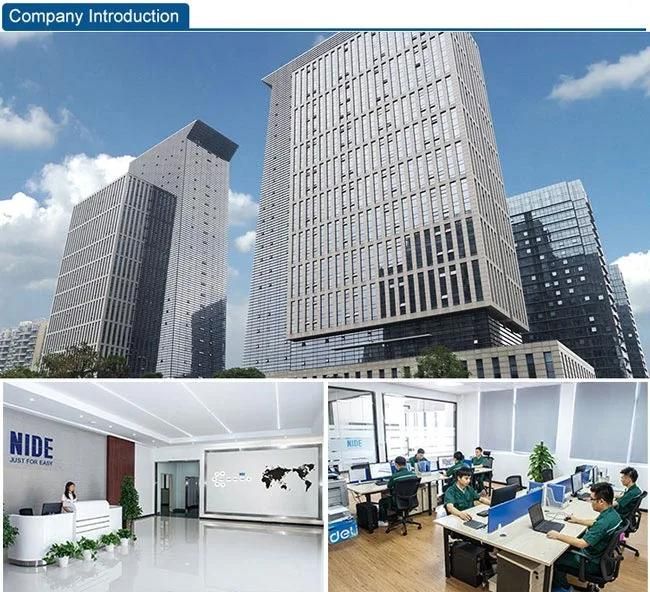

Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

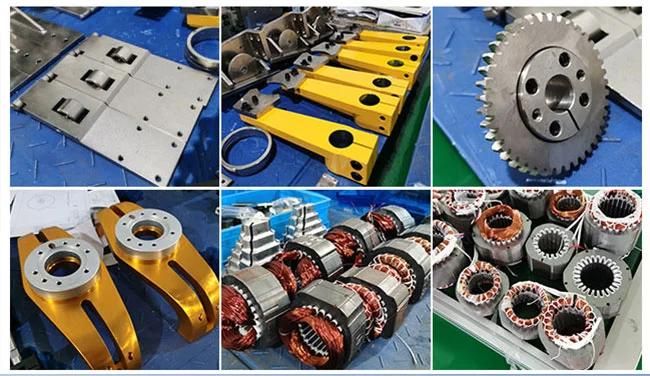

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
