Yh-380 Automatic Wire Prefeeder Machine Wire Pay off Machine
Kunshan Yuanhan Electronic Equipment Co., Ltd.- After-sales Service：24th
- Driven Type：Electric
- Condition：New
- Certification：RoHS, ISO, CE
- Warranty：24 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：YH-380
- Transport Package：Double-Layer Export Carton
- Origin：China
- HS Code：8479819000
- Production Capacity：L=100mm, 3000-7000PCS,H
Description
Basic Info.
Model NO. YH-380 Transport Package Double-Layer Export Carton Origin China HS Code 8479819000 Production Capacity L=100mm, 3000-7000PCS/HProduct Description

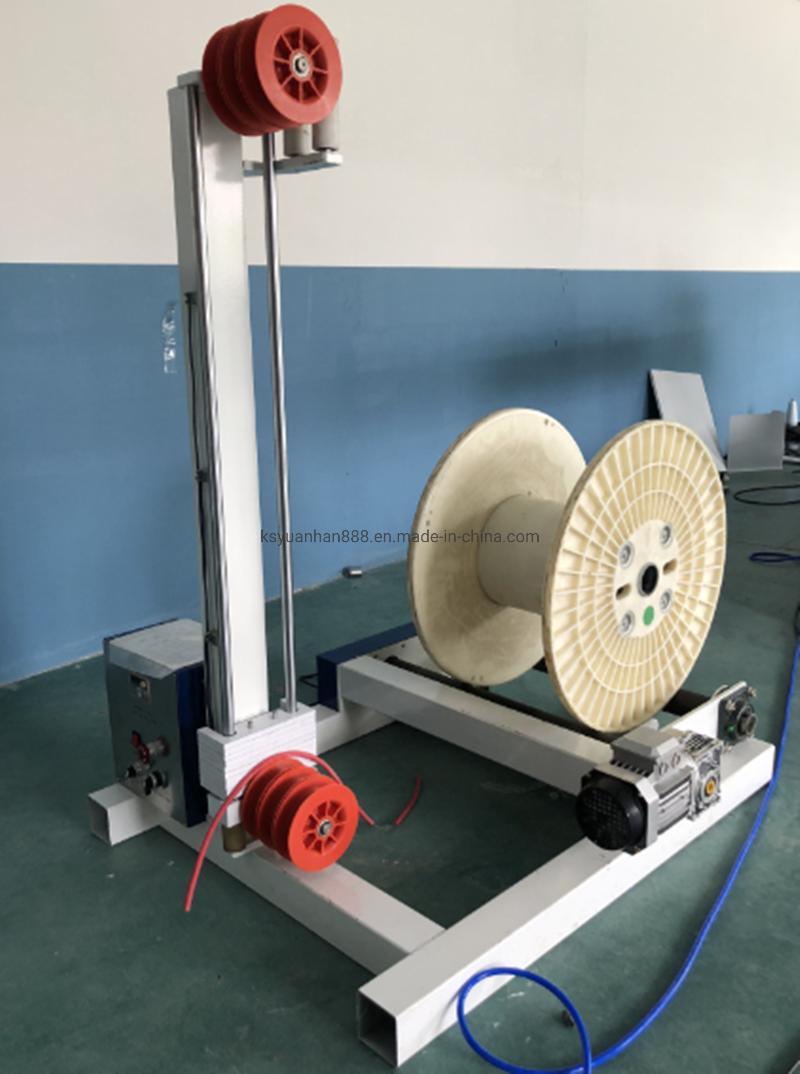

YH-380 Automatic wire prefeeder machine wire pay off machine
The wire and cable prefeeding dereeler machine handles 600 mm reels weighing up to 60 kg and is ideal for tension-free prefeeding to an automatic wire and cable processing machine.
| Model | YH-380 |
| Display mode | Digital tube |
| Function | Wire, cable... High speed auto feeding |
| Wire Type | Electric wire, Cable, PVC, etc.with reel shaft |
| Wire range | 0.5-10 square millimeter |
| Feeding speed | 0-4M/s |
| Catheter diameter | Maximum Dia.18 |
| Reel diameter | Maximum 600mm |
| Load-bearing | 30KG (Max.80kg but too hard to instal if exceed 30kg) |
| Weight | 75kgs |
| Dimensions | 75*40*110cm |
| Induction type | Proximity switch, multi-speed. |
| Drive mode | Inverter + Motor + Speed Reducer |
| Remarks | Special cables can be customized, please send samples for testing |
Other Model
If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden
Any questions, please feel free to contact us! Thank you !
