• Model NO.：XJ500
• Type：High-speed Stranding Machine
• Purpose：Use for USB3.0,HDMI,Dp Wire Twist & Wrapping
• Wire Specification：AWG34-26
• Twist Bow Rotate Speed：Max1200rpm
• Power：15HP
• Traversing Type：Shaft-Row Take-UPS
• Pitch Range：3.0-80mm Electric Pitch(Setting on Touch Sreen)
• Back-Twist Rate：100%
• Wrapping Rotate Speed：Max2000rpm
• Pay-off Type：Active Pay-off, Tension Auto-Adjustment
• Taping Material：Transparent Tape, Mica Tape, Teflon Tape etc
• Precision：High Precision
• Customized：Customized
• Transport Package：PE Film + Wooden Box
• Specification：XJ300
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. XJ500 Type High-speed Stranding Machine Purpose Use for USB3.0/HDMI/Dp Wire Twist & Wrapping Wire Specification AWG34-26 Twist Bow Rotate Speed Max1200rpm Power 15HP Traversing Type Shaft-Row Take-UPS Pitch Range 3.0-80mm Electric Pitch(Setting on Touch Sreen) Back-Twist Rate 100% Wrapping Rotate Speed Max2000rpm Pay-off Type Active Pay-off, Tension Auto-Adjustment Taping Material Transparent Tape, Mica Tape, Teflon Tape etc Precision High Precision Customized Customized Transport Package PE Film + Wooden Box Specification XJ300 Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 10 Sets/Month

Product Description

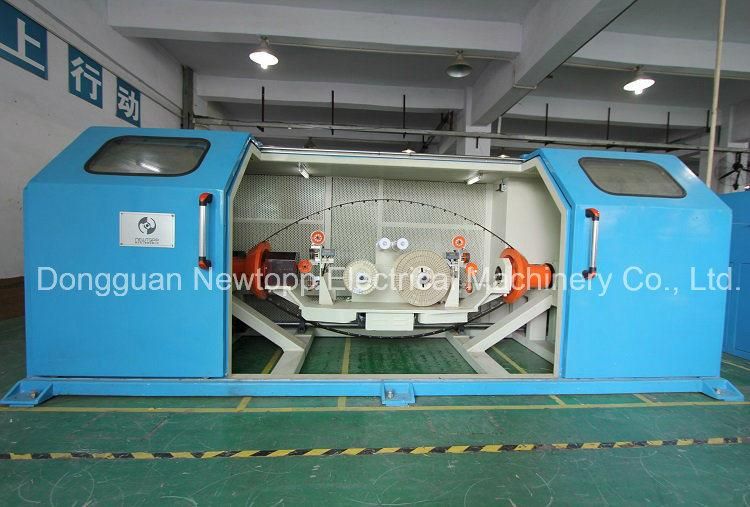

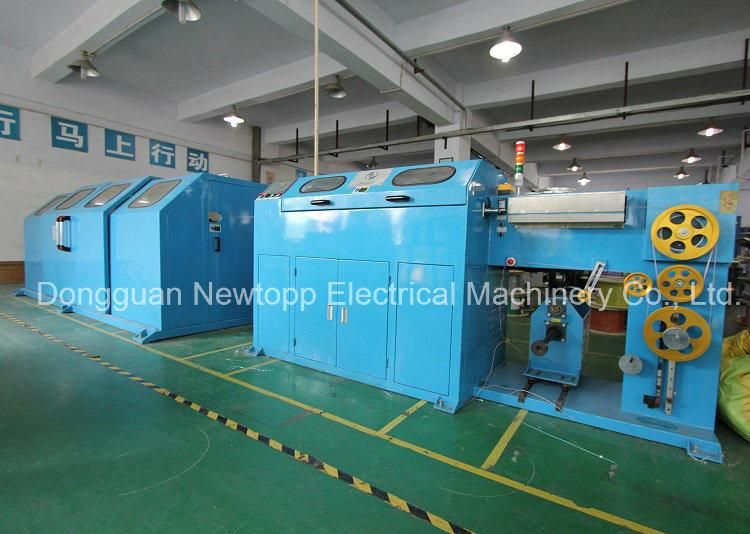

Cable Double Wrapping/hotmelt Machine

1.Application:
Used in USB3.0, HDMI, DP and so on special technology high-frequency wire back-twist ,twisting and taping.

2.Machine Features:
It's used in USB3.0, HDMI, DP and so on special technology high-frequency wire back-twist , twisting and taping. meanwhile, it can work as one machine compatible with twisting and nutwisting products, and can finish back-twist, twisting , double taping, hot melting by once time; The first domestic, the whole using SERVO motor control, electric pitch setting automatical, 100% back-twist, auto-adjustment tension; Compared with traditional type, easier operation, production efficiency improved much, reduce defective products and labor cost.

3. Technical Parameters:

Model	XJ-500
Usage	Used in USB3.0, HDMI, DP and so on special technology high-frequency wire back-twist ,twisting and taping.
Core-wire spec.	AWG34 - AWG26
Back-twist rate	100%
Taping material	Aluminum foil tape, myra tape, cotton paper, transparent tape, mica tape, teflon tape etc.
Twisted bow  rotating speed	Max.1200 rpm
Twisting  pitch	3.0 - 80 mm , electric pitch setting by touch screen
Main power	15 HP
Taping rotating speed	Max.2000 rpm
Taping tension	Taping tension keep constant from start to end, no need any manual adjustment.
Take-up tension	Take-up tension keep constant from start to end, no need any manual adjustment.
Pay-off  type	Active payoff,  tension autoadjustment, auto correct, and with wire break protection function.

4. We are in the fair
