• Model NO.：YH-812
• Model：Yh-812
• Cutting Length：1-9999 mm
• Cutting Width：120 mm
• Cutting Speed：100-120 PCS,Min
• Weight：26 Kg
• Voltage：220V
• Rated Power：0.5kw
• Knife Temperature：350°c
• Packing Size (L*W*H)：450*350*350mm
• Transport Package：Wooden Case
• Trademark：yuanhan
• Origin：China
• HS Code：8479819000
• Production Capacity：1000PC,Year

Basic Info.

Model NO. YH-812 Model Yh-812 Cutting Length 1-9999 mm Cutting Width 120 mm Cutting Speed 100-120 PCS/Min Weight 26 Kg Voltage 220V Rated Power 0.5kw Knife Temperature 350°c Packing Size (L*W*H) 450*350*350mm Transport Package Wooden Case Trademark yuanhan Origin China HS Code 8479819000 Production Capacity 1000PC/Year

Product Description

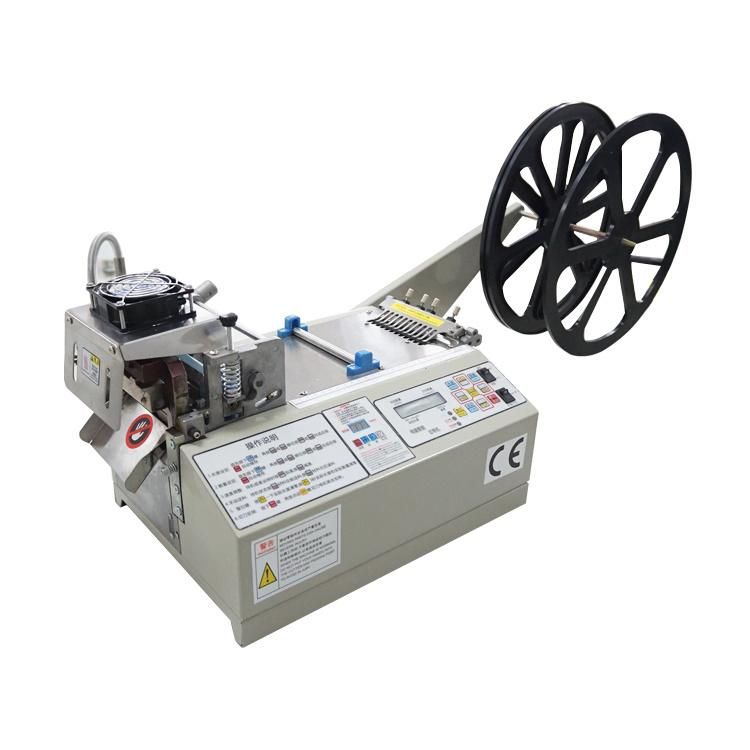

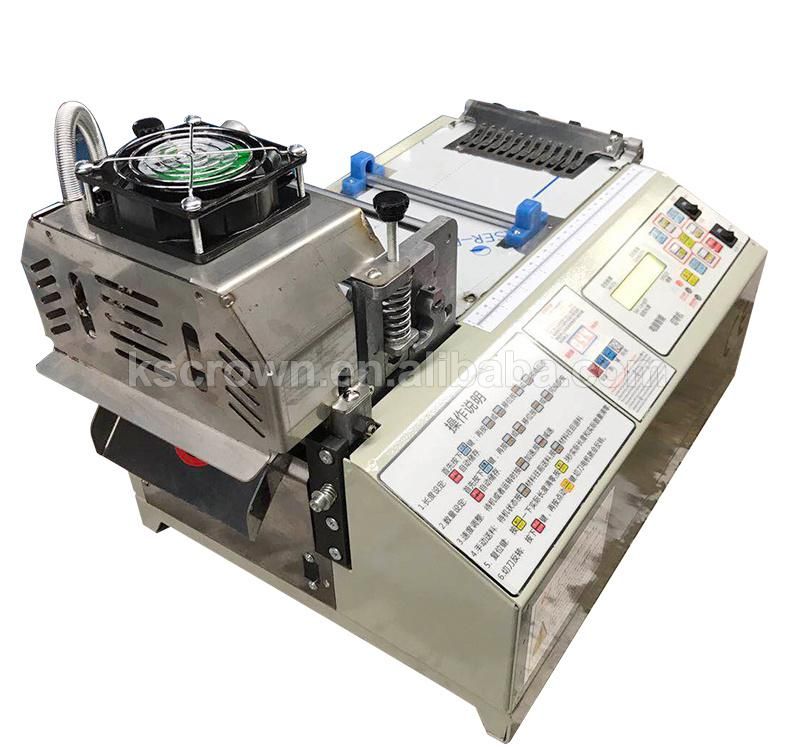

Nylon Tape Cutting and Sealing Machine with Hot and Cold Blades

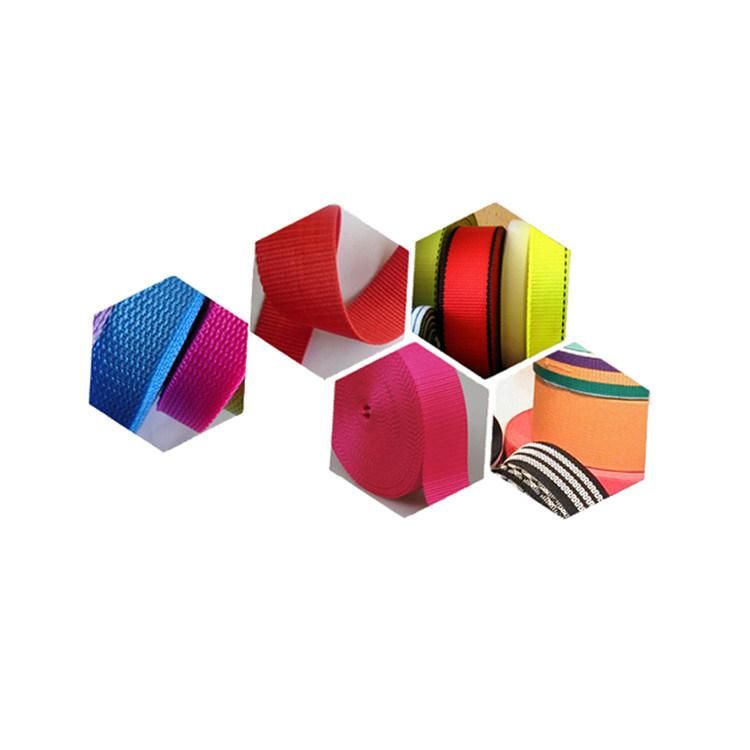

This woven tape cutting machine supports cold and hot cutting. It is suitable for cutting hot cut belt, textile belt, webbing, nylon belt, seat belt, backpack belt, elastic band, threaded belt, etc.

• This fabric tape cutting machine is suitable for cutting hot cut belt, textile belt, webbing, nylon belt, seat belt, backpack belt, elastic band, threaded belt, etc.

• Support cold cutting and hot cutting

• The max. cutting width: 120mm

• High speed: it can cut 100 to 120 pieces per minute (50mm length as an example)

• Cutting shape: rectangle and quadrangle (customizable)

• High precision: each cut is monitored by a stepper motor to ensure high accuracy for each operation.

• The cut surface is flat: the hot knife can heat the cut surface of colored ribbons and light textile tapes at high temperature, and the seals are smooth and free from burrs.

• The blade is made of imported high quality steel and has a long service life.

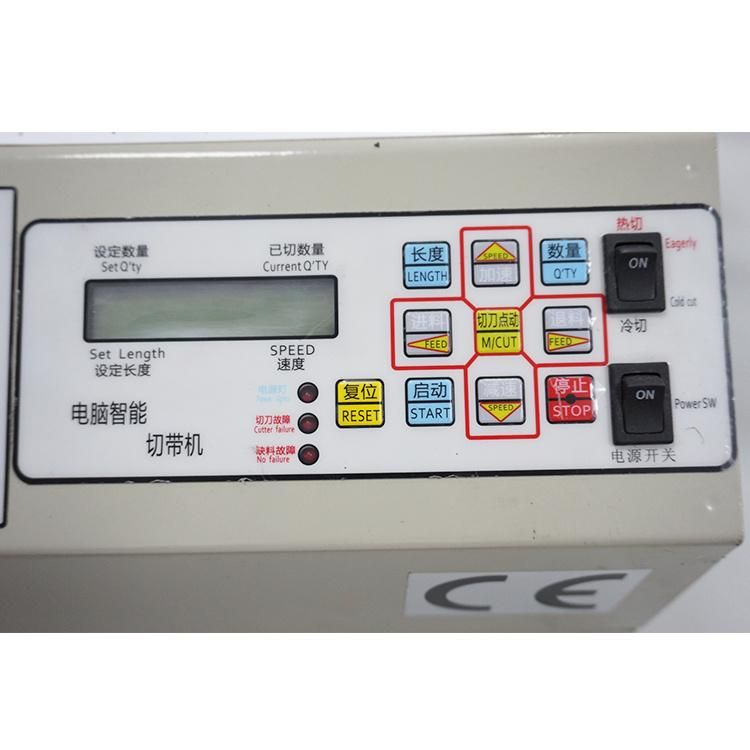

• Automatic operation: just set the cut length and quantity you need, and the machine will do the rest automatically.

• Automatic pause: once the material runs out, it will automatically stop working. The alarm automatically alarms.

• Memory function: before the switch is turned off, the cut-off length, quantity, and cut-off speed will be automatically stored.

• File Storage: 9 files can be stored for easy retrieval at any time, reducing setup time.

• Model	WL-812
  Cutting length	1-9999mm
  Max.cutting width	120mm
  Cutting speed	100-120 pcs/min
  Weight	26 KG
  Voltage	110V/220V 50/60Hz
  Rated Power	0.5 KW
  Knife temperature	350°C
  Dimension	450*350*350mm





  Certificate

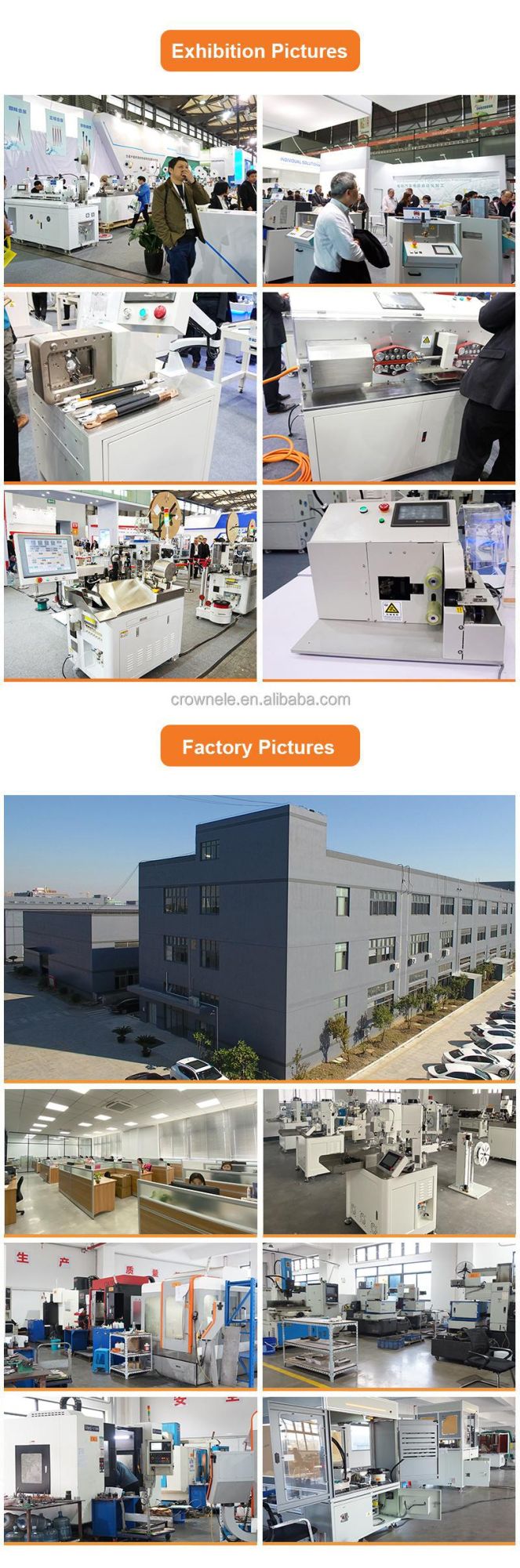

  company
