Precision Wire Winding Coil Inductor Toroid Coil Common Core Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Wire Diameter：0.05mm-0.12mm
  • Max.Final Coil.O.D：30-80
  • Min.Final Coil.I.D：5
  • Max.Finalcoil Height：15
  • Controller Storage Capacity Programs：29 Sets
  • Max.Winding Speed：1000rpm

Base Info

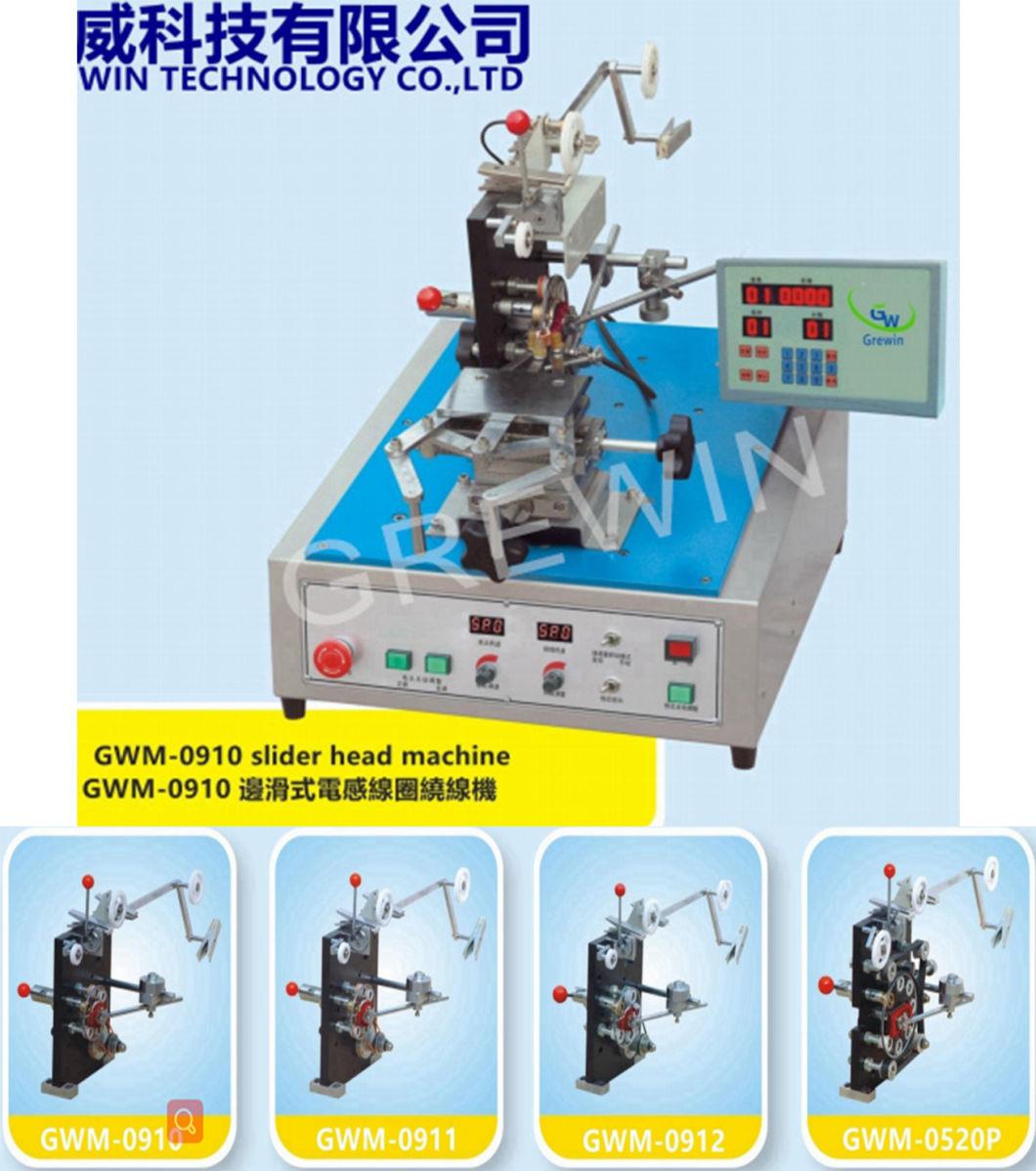

  • Model NO.：GWM-0910
  • Wire Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：550*500*580
  • Weight：83kg
  • Name 1：Coil Winder Machine
  • Name 2：Transformer Winding Machine
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS

Description

Wire diameter0.05-0.12Max.winding speed1000rpmMax.final coil.O.Dφ30-80Wire spacingProportional linkageMin.final coil.I.Dφ5Supply voltageAC 220V(50Hz)Max.finalcoil height15Mechanical  dimensions550*500*580Controller storage
capacity Programs29 (set)Weight83kgGWM-0910 (winding machine/Mag.OD.400)
(unit): mm

Precision Wire Winding Coil Inductor Toroid Coil Common Core Winding MachinePrecision Wire Winding Coil Inductor Toroid Coil Common Core Winding Machine


Related Products

Precision Wire Winding Coil Inductor Toroid Coil Common Core Winding Machine

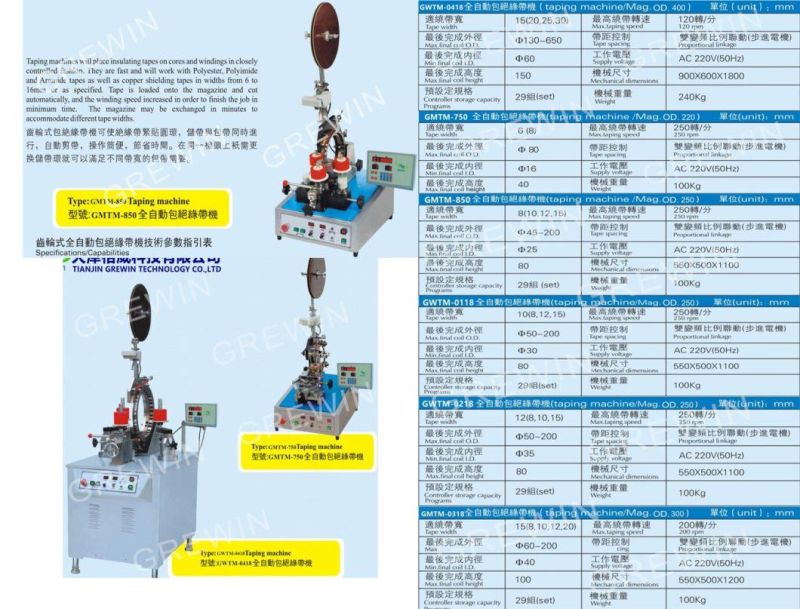

How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.


Why Choose Us
1.operating videos
2.24 hours technical support
3.1 year free Warranty4.Free training.
5. OEM/ODM accept
Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
Precision Wire Winding Coil Inductor Toroid Coil Common Core Winding Machine
