• Model NO.：M6
• Type：High-speed Chip Mounter

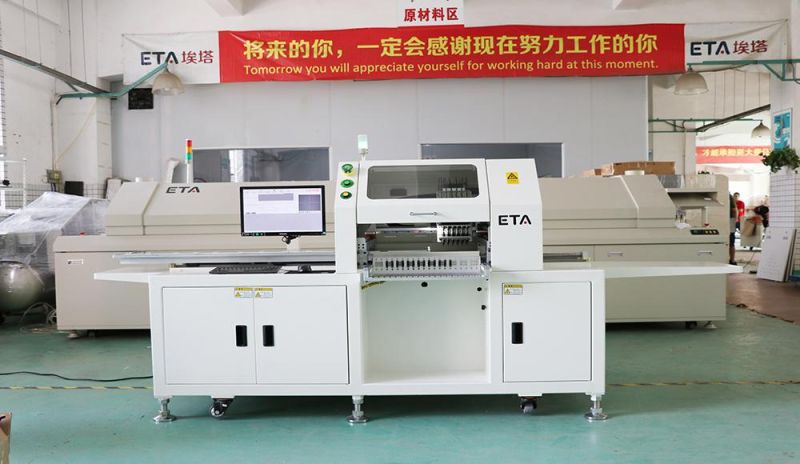

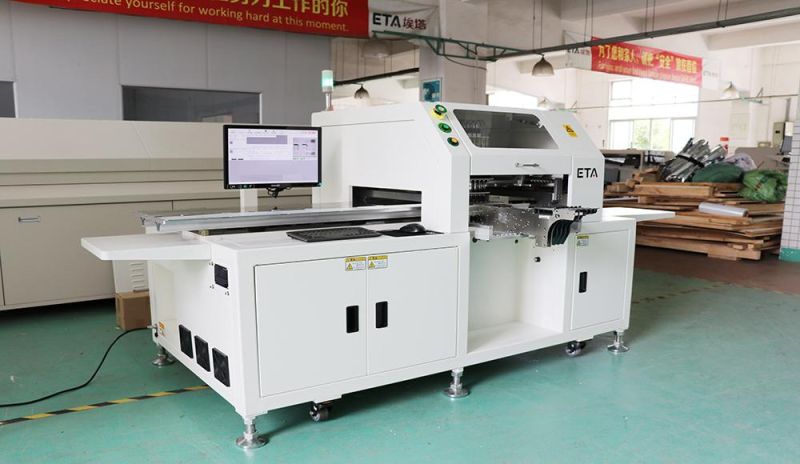

• Product Name：LED Pick and Place Machine
• Placement Speed：46000cph
• Usage：SMT, SMD, LED, PCB, PCBA
• Head Number：1
• Nozzle Number：8
• Placement Accuracy：+,-50 μm
• Component Range：0603~8520 Chip, LED Chip
• Feeder Inputs：20PCS
• Dimension (L*W*H：2050*1200*1400
• Weight：Approx.950kg
• Transport Package：Wooden Case
• Specification：CE, RoHS
• Trademark：EAT
• Origin：China
• HS Code：8515190000
• Production Capacity：100 PCS Per Month

Basic Info.

Model NO. M6 Type High-speed Chip Mounter Product Name LED Pick and Place Machine Placement Speed 46000cph Usage SMT, SMD, LED, PCB, PCBA Head Number 1 Nozzle Number 8 Placement Accuracy +/-50 μm Component Range 0603~8520 Chip, LED Chip Feeder Inputs 20PCS Dimension (L*W*H 2050*1200*1400 Weight Approx.950kg Transport Package Wooden Case Specification CE, RoHS Trademark EAT Origin China HS Code 8515190000 Production Capacity 100 PCS Per Month

Product Description

Product instructions:

1. ETA unique mounting pressure control system, full closed-loop mount control system in Z-axis placement process to ensure the effective height and placement accuracy.
2. ETA exclusive image recognition system uses digital identification and equips with new industrial cameras, recognition speed is slower than mounting speed, not affecting placement efficiency. Individual imaging of each component, no error.
3.  New digital image processing software, GPU-based computing processing, and default 12 kinds of elements algorithms and settings.
4.  High precision hardware, imported top brands core parts to ensure placement precision like rail, screw, control systems, communication systems and so on.
5. Using industrial-grade computer control and WINDOWS operating system to ensure the stable operation.
6. Standard feeder with sensor to prevent components hip up and ensure safe operation.
7. Adopt Panasonic digital pressure testing, with alarming component shortages function, even in the case of lacking of material and components, the operator can also replenish components, thus will not affect the production of the highest efficiency.

 Specification:

Model	ETA-M6	ETA-M8	ETA-M10
Max.PCB Size	1200x360mm(1200x460 Option)	1500x360mm(1500x460 Option)	1500x400mm(1500x460 Option)
Speed	38000CPH	46000CPH	55000CPH
Head Number	1	1	1
Nozzle Number	6	8	10
Placement Accuracy	+/-50 μm	+/-50 μm	+/-50 μm
Component Range	0603~8520 chip,led chip	0603~8520 chip,led chip	0603~8520 chip,led chip

Component Height	≤10mm	≤10mm	≤10mm
Feeder Inputs	20PCS	20PCS	20PCS
Convey Time	3S	3S	3S
Dimension (L*W*H)	2000x1100x1500mm	2000x1100x1500mm	2000x1200x1500mm
Weight	Approx.950KG	Approx.950KG	Approx.980KG
Load capacity	200Kg/m2	200Kg/m2	200Kg/m2
Electric Supply	2phase,AC200 ~ 415 V 50/60Hz	2phase,AC200 ~ 415 V 50/60Hz	2phase,AC200 ~ 415 V 50/60Hz
Power Consumption	2KW	2KW	2KW

Competitive price with good quality, and great after-sales service
Training more than 500 experts and technician for customers.
Provides professional SMT solutions for the full line.

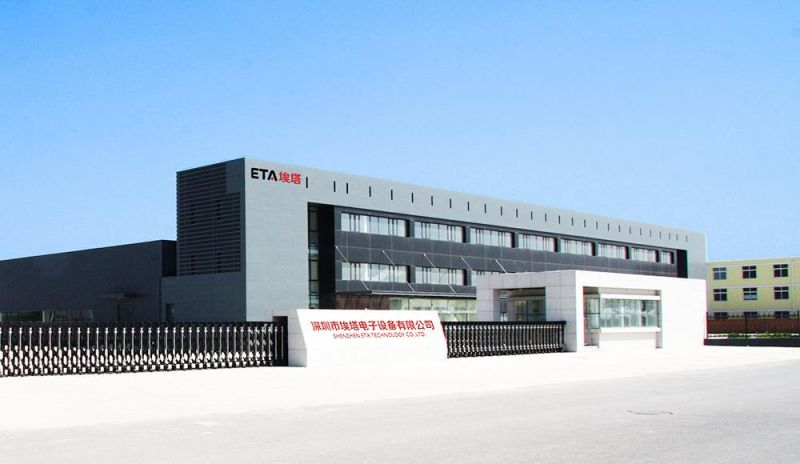

Company Proflie:

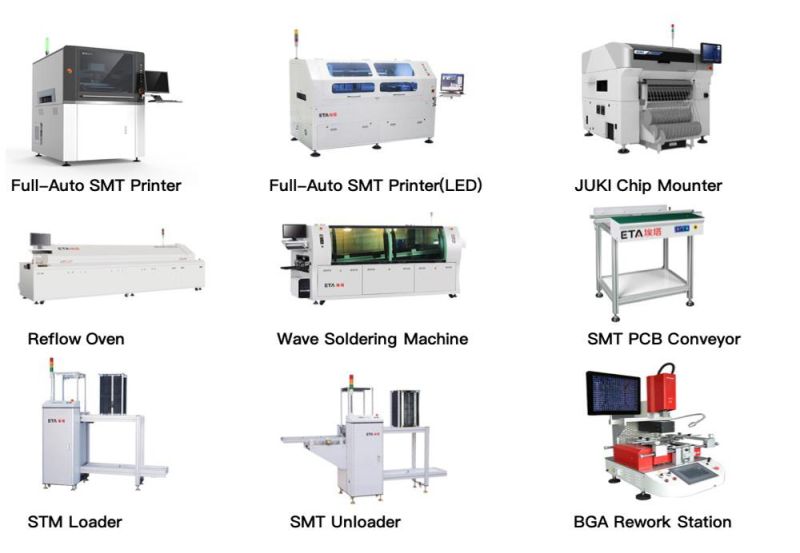

Shenzhen ETA Technology Co., Ltd.Expert in making customized high quality SMT LED Pick and Place Machine, SMT LED Reflow Oven, SMT LED Stencil Printer, SMT Production Line,LED Assembly Line, SMT LED Machines with more than 23 years experience!

Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

Successful Experience:
Eta's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

For SMT factory setup,we can do for you:
1.  We provide fulL SMT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT factory setup
5.  We can solve any question about SMT

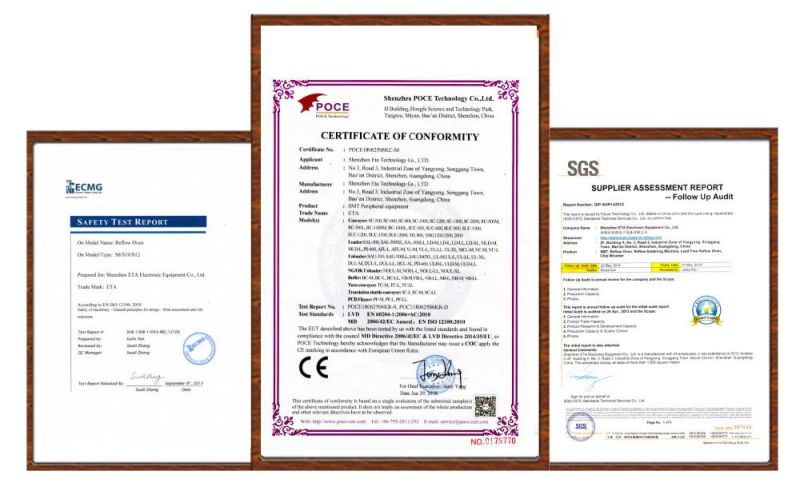

Certificate:

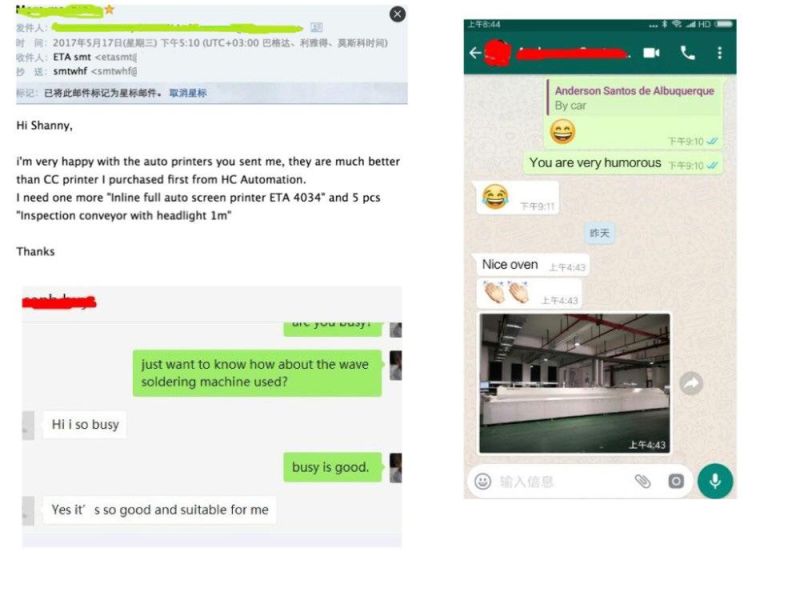

Customers Feedback:






FAQ:

1.Are you a trade company or a manufacturer?
OEM & ODM service are available.

2.What is your delivery date?
The delivery date is about 35 days after receipt of payment.

3.What is your payment terms?
30% deposit in advance and 70% balance before shipment.

4.What your main customers?
Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.

5. Why choose us?
Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.


Packaging & Shipping:



Contact Infomation:

If you could not find any similar items you want, you may send some photos to us.
Because our catalog and website haven't included all of our products.



Shanny True

Mobile: 86-136 7012 4230
Phone: 075527428080

Add.:No.3,Road 3,Industrial Zone of Yangyong, Songgang Town, Bao'an District of Shenzhen,Guangdong, China.
