• Model NO.：GT-100MM
• Motor：Siemens
• Inverter：Siemens
• Bearing：Japan-NSK
• Control System：PLC Control
• Finish Wire Diameter：4mm-30mm
• Electric Element：Siemens and Omron
• Process Material：PVC, PE, XLPE, Lsoh
• Transport Package：Wooden Packing or PE Film Simple Packing
• Specification：International Standand
• Trademark：GOLDEN TECHNOLOGIES
• Origin：China
• HS Code：84772090
• Production Capacity：4sets, Month

Basic Info.

Model NO. GT-100MM Motor Siemens Inverter Siemens Bearing Japan-NSK Control System PLC Control Finish Wire Diameter 4mm-30mm Electric Element Siemens and Omron Process Material PVC, PE, XLPE, Lsoh Transport Package Wooden Packing or PE Film Simple Packing Specification International Standand Trademark GOLDEN TECHNOLOGIES Origin China HS Code 84772090 Production Capacity 4sets/ Month

Product Description

(1)Equipment application:
GOLDEN TECHNOLOGIES® Optimum design of machine each part for extruding PVC, XLPE and LSOH materials still under further innovation. Excellent quality product has been obtained consistently as well. The high standard to the raw material, the carefulness for the workmanship of each part details, the vigorous quality control to the assembly parts and the professional testing and inspecting system to the finished machine.

So that the superior and optimal wire and cable machine and production line can be offered for making house wire, building wire, power cable(MV,LV), and even the special cable.

Cable making solution:
-Single-layer: insulating the wire, and sheathing the stranded wires.
-Co-extrusion: simultaneously do main layer and skin or strip design; / Main layer with skin and strip design.
-Tandem extrusion: two extrusion groups, one for filling, the other for jacketing and stripping simultaneously.



(2)TECHNICAL PARAMETER:
- Process material: PVC, PE, XLPE, LSOH
- Process solution: single layer, or double layer
- Diameter over insulation: 4.0mm to 30.0mm
- Height of cable passing over floor: 1000mm
- Machine color: blue,green,red,white;According to your company.
- Machine direction: Based on customer's requirement
- Power: 3P/ 380V / 50Hz-

(3)FEATURE:
It is controlled by human-machine interaction interface system. Digital control technique and PLC program make entire control system dependable and flexible.
According to the characteristic of power cable, precise adjustable crosshead gives high concentricity of the insulation and jacket to ensure the quality of the product.

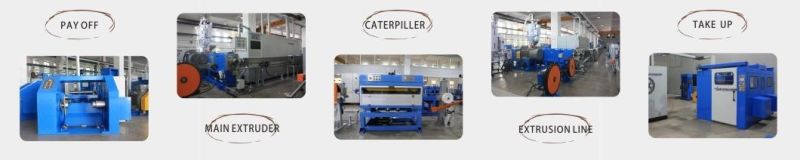

COMPONENTS

QTY.	Unit	Name of product	Type/Note	Manufacturer

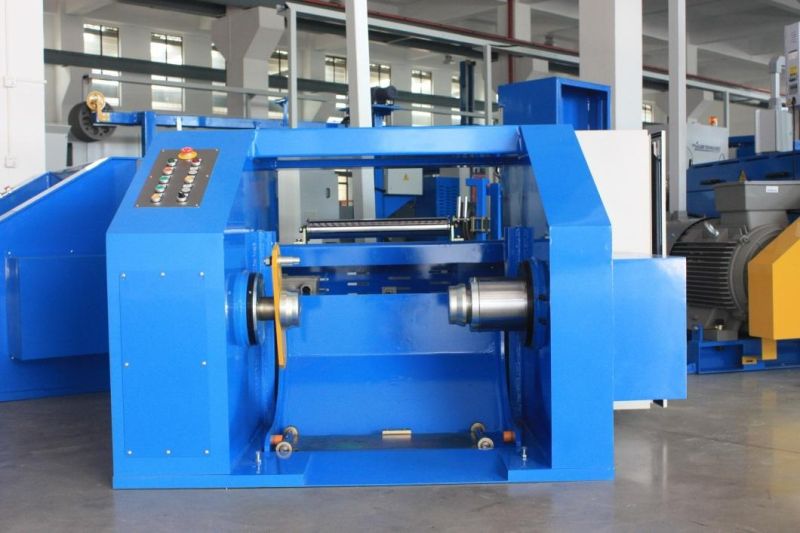

2	Set	Pay Off	1600mm	GODLEN
1	Set	Dancer		GOLDEN
1	Set	Straighter		GOLDEN

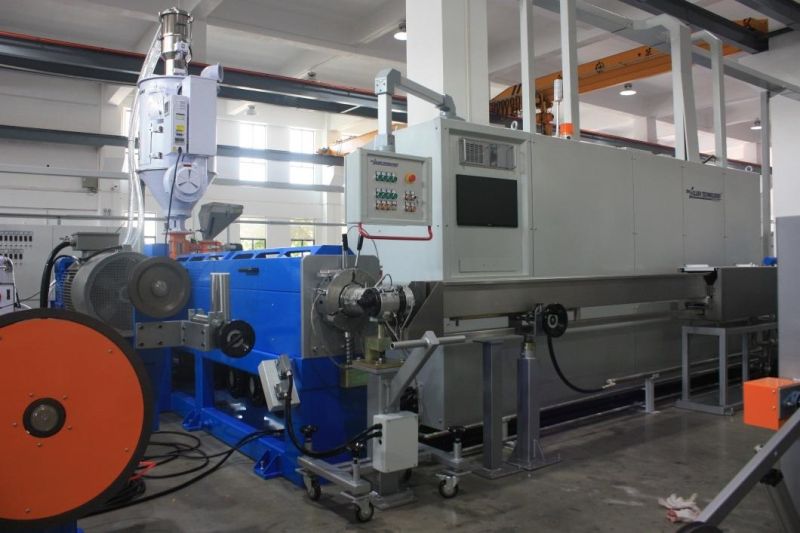

1	Set	Main extruder	100MM-26 (L /D)	GOLDEN
1	Set	Hopper Loader
1	Set	Cooling Zone		GOLDEN
1	Set	Moveable Cooling trough		GOLDEN
1	Set	Main Cooling Trough		GOLDEN
1	Sets	Air Drier		GOLDEN
1	Set	Catepillar		GOLDEN
1	Set	Meter counter		GOLDEN
1	Set	Spark tester

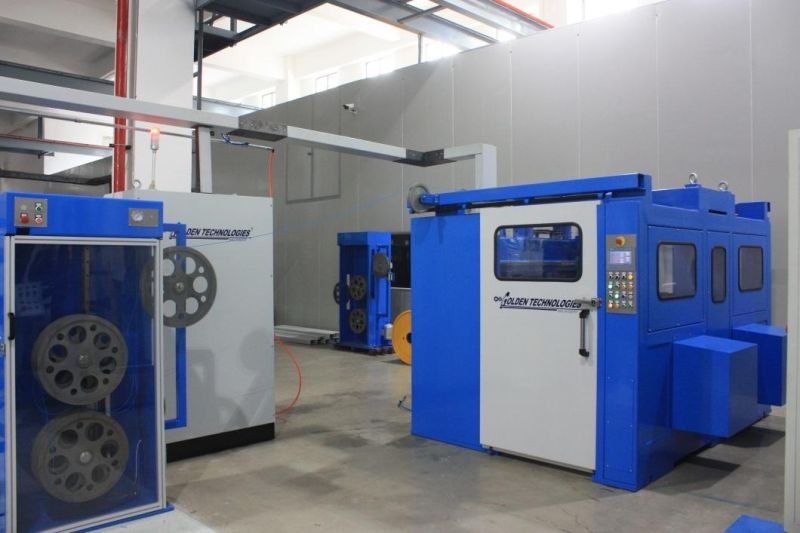

2	Sets	Take Up Fork type	1600-2200mm	GOLDEN
1	Set	Control box -computer type	With air conditioner	GOLDEN
