Epoxy Resin Filling Machine Resin Mixing Machine
Guangzhou ZhengQi Technology Co., Ltd.- Precision:High Precision
- Condition:New
- Certification:CE
- Warranty:12 Months
- Automatic Grade:Semiautomatic
- Installation:Vertical
Base Info
- Model NO.:PGB-700
- Driven Type:Electric
- Transport Package:Wooden Packing
- Trademark:D&H
- Origin:China
- HS Code:8424899990
- Production Capacity:50PCS Per Month
Description
Model No:
PJL-100
Mixing Ratio
100:100-10:100(1:1-1:10) Adjustable
Metering precision
±1%
Outflow speed
1g/sec-15g/sec
Mixing precision
±1%
Mixing mode
Dynamic mixing /Static mixing
Glue Viscosity
Lower than 20000 CPS(mPa·s)
Control mode
PLC + Touch Screen
Control system
Independent R&D
Measuring mode
Stepping motor/High-precision, wear-resistant,
long-life Gear pump
Working voltage
AC 220V 50Hz/60Hz
Power requirement
3.55KW
Air pressure requirement
4.5-8KG
Machine Dimension
1500(L)*1200(W)*1500(H)mm
Weight
approx 260 KG
Work environment
Humidity: 20%~98%RH; Temperature: 0~+40°c
Suitable Material: For waterproof, adhesive, fixed two-component adhesive.
Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.
Applications:LED products ,Crafts,Electronic components
Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter .etc

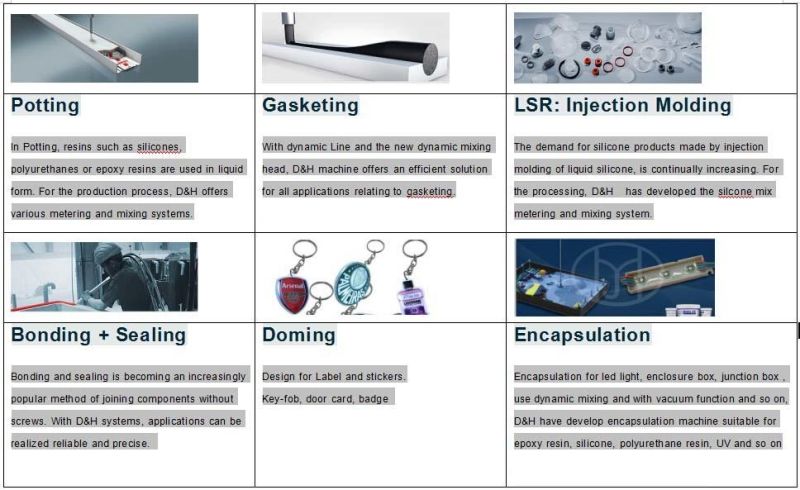

IV:Application
![Epoxy Resin Filling Machine Resin Mixing Machine](http://www.996510.com/uploads/image/2021/2f/7f/fe/dd/991a9b01ff4f56f953e664e5efba5cf7.jpg)

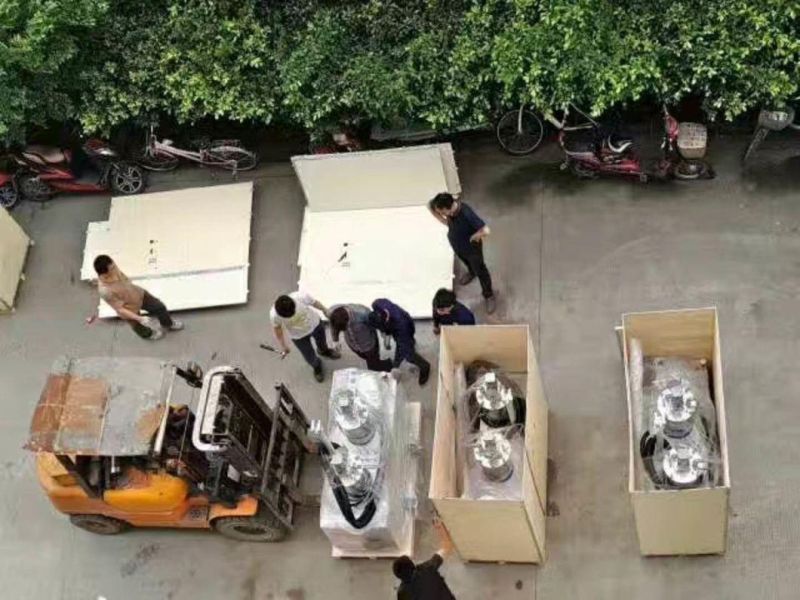

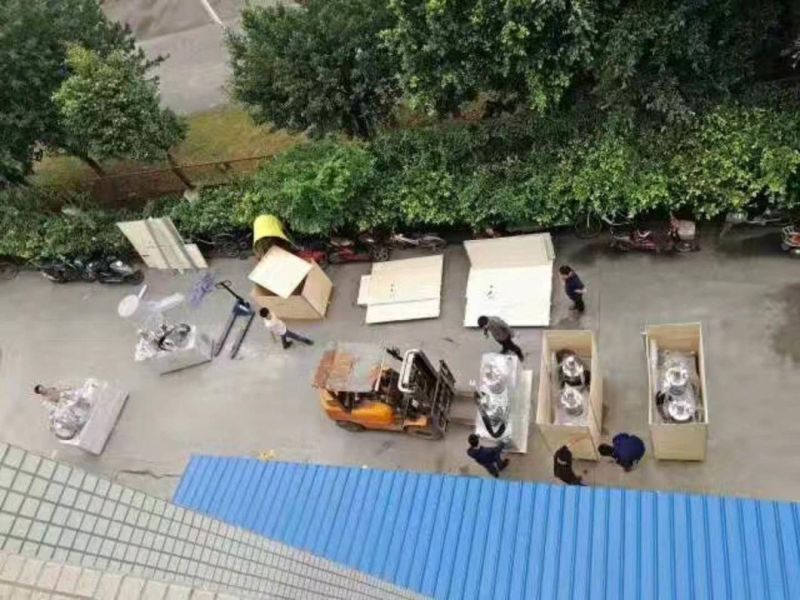

V, packing
![Epoxy Resin Filling Machine Resin Mixing Machine](http://www.996510.com/uploads/image/2021/37/85/dc/ca/1a568cc51e3ef3043d3fc364cbb282d8.jpg)
![Epoxy Resin Filling Machine Resin Mixing Machine](http://www.996510.com/uploads/image/2021/5e/ff/41/9e/def35553875836de1d992c0e55ced87b.jpg)
