• Model NO.：YH-2017C
• Model：Yh-2017c
• Processing Range：AWG30-AWG4 (0.04-20 Square mm)
• Function：Half Strip, Full Strip, Double-Layer Strip, etc.
• Capacity：1800-2000 Pieces,Hour (Depending on Operating Prof
• Stripping Length：1mm-40mm
• Adjustment Accuracy：0.05mm
• Working Voltage：AC220V 50,60Hz
• Dimensions：500mm*620mm*300mm
• Weight：20kg
• Transport Package：Double-Layer Export Carton
• Specification：500mm*620mm*300mm
• Trademark：YH
• Origin：China
• HS Code：8479819000
• Production Capacity：L=100mm, 3000-7000PCS,H

Basic Info.

Model NO. YH-2017C Model Yh-2017c Processing Range AWG30-AWG4 (0.04-20 Square mm) Function Half Strip, Full Strip, Double-Layer Strip, etc. Capacity 1800-2000 Pieces/Hour (Depending on Operating Prof Stripping Length 1mm-40mm Adjustment Accuracy 0.05mm Working Voltage AC220V 50/60Hz Dimensions 500mm*620mm*300mm Weight 20kg Transport Package Double-Layer Export Carton Specification 500mm*620mm*300mm Trademark YH Origin China HS Code 8479819000 Production Capacity L=100mm, 3000-7000PCS/H

Product Description

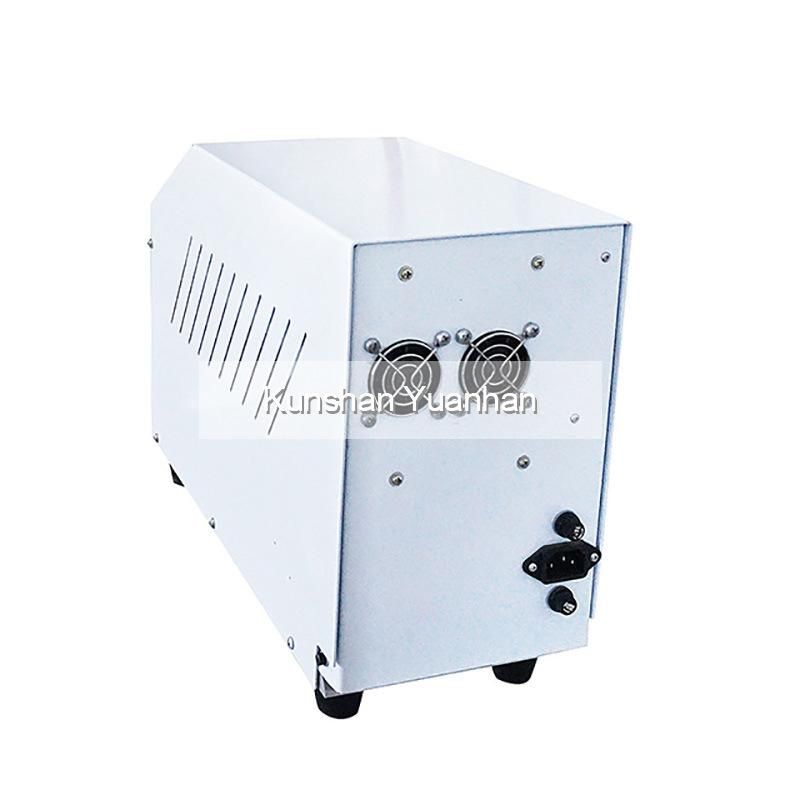

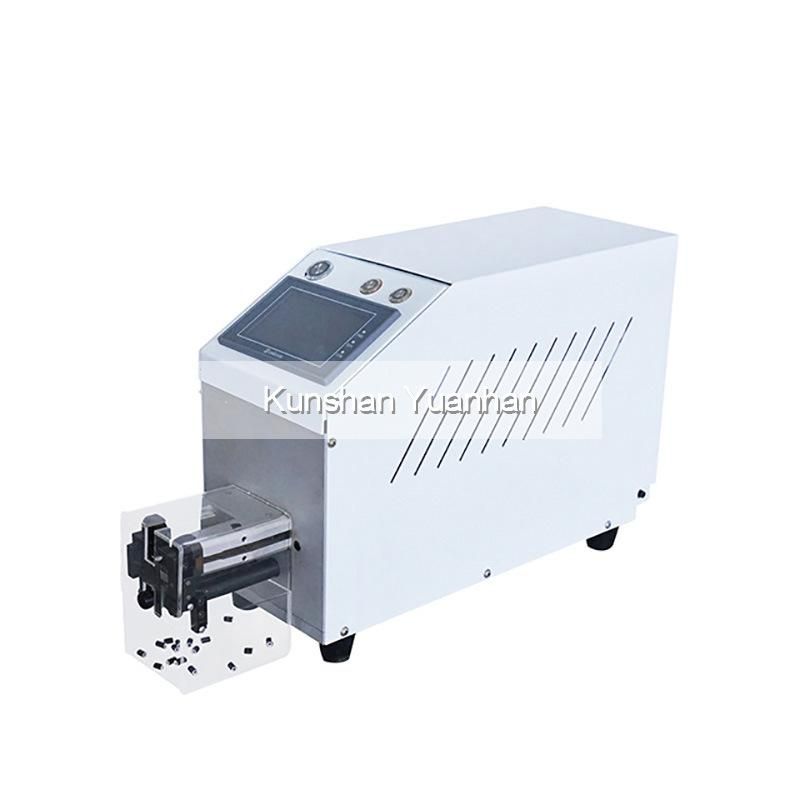

Inductive Electric Wire Stripping Machine

The YH-2017C is a pure electric wire stripping machine, which comes with multiple cable processing modes: half strip, full strip, double-layer strip and more. Processing range: AWG30-AWG4 (0.04-20 square mm).

• Pure electric wire stripping machine, high precision, simple and convenient debugging

• High accuracy, no need for foot switch

• Multiple processing modes meet different types of wire processing. (half strip, full strip, double-layer strip, etc.)

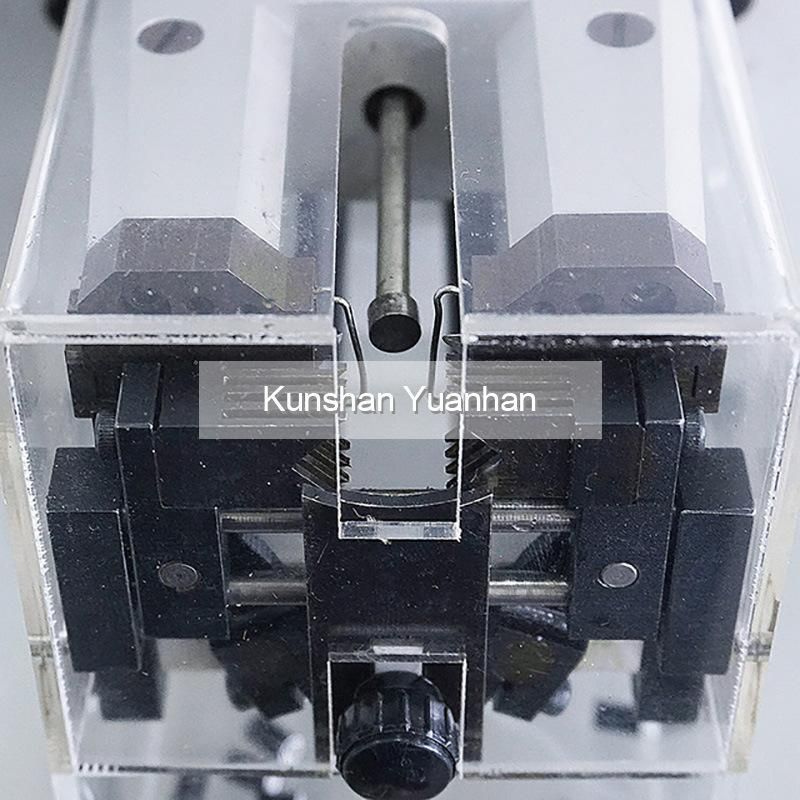

• It adopts a 90-degree V-shaped knife edge design, which has strong versatility and does not need to change the blade when processing different wires.

• Both the gripper and the knife edge adopt the translation principle to ensure that the center height remains the same when processing different wire diameters

• Up to 30 sets of processing parameters can be stored

• Processing range: AWG30-AWG4 (0.04-20 square millimeters), stripping length 1mm-40mm

Specifications:

Model	YH-2017C
Processing range	AWG30-AWG4 (0.04-20 square mm)
Function	half strip, full strip, double-layer strip, etc.
Production capacity	1800-2000 pieces/hour (depending on operating proficiency)
Stripping length	1mm-40mm
Adjustment accuracy	0.05mm
Working voltage	AC220V 50/60Hz
Dimensions	500mm*620mm*300mm
Weight	20kg



Features:

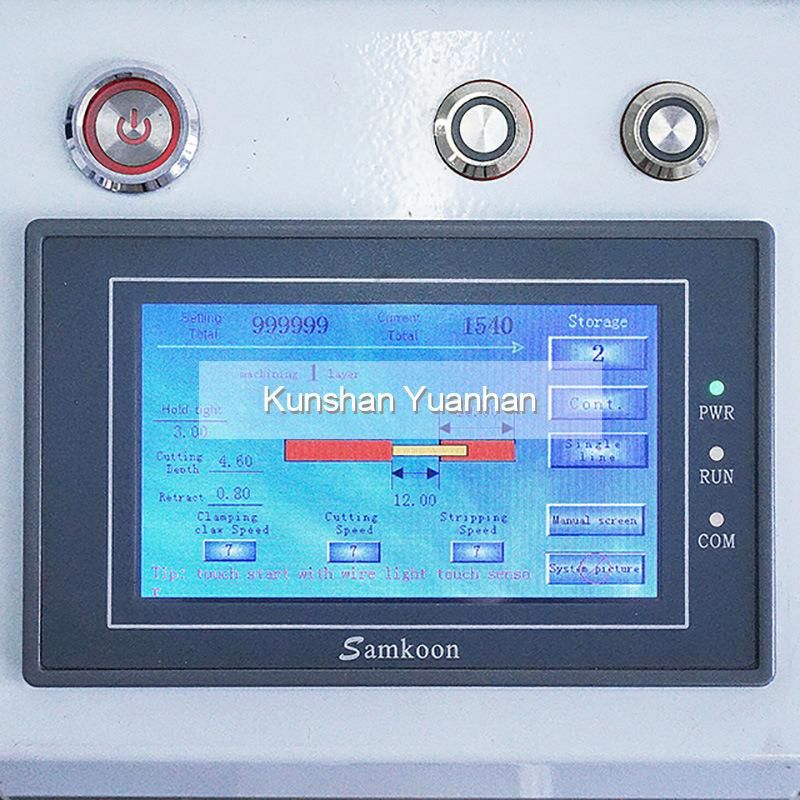

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

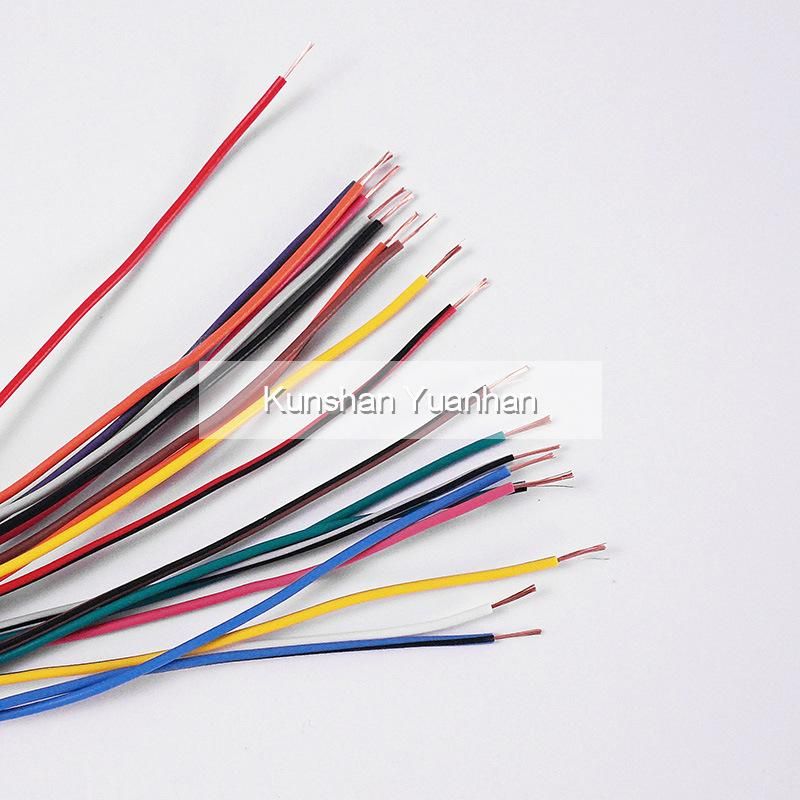

Sample: cut and strip wire automatically


Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Any questions, please feel free to contact us! Thank you !
