• Model NO.：XJ-50+35
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ-50+35 Specification CE SGS Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

Application field:

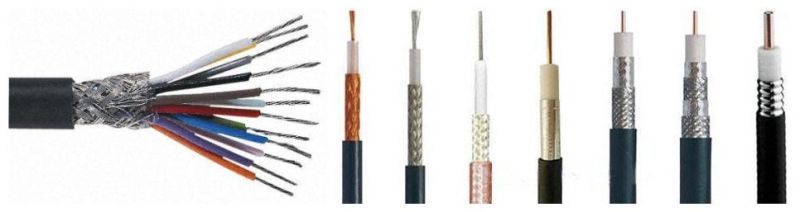

Used for all kinds of CATV and RG series foam coaxial cables and communication transmission lines etc. low loss cables such as IEEE1394, CAT6, CAT7, DVI, HDMI, ATA, UL2919, etc.






Products feature:

1.Used widely:Used for copper conductor wire chemical/physical foam-skin/skin-form-skin dual/three-layers insulation extrusion and single layer+striping extrusion.Apply to all kinds communication cable,data cable,coaxial cable,radio frequency cable,RG,JIS,DVI,HDIM and so on high demanding foaming wire.
2.Strict QC:Equipped with outer diameter and capacitance detection device, which process control the product's outer diameter, foaming degree and other technological parameters.
3.High output:Optimizing screw design, screw durable,non cohesive gel,non take off a chrome,color change quickly,high wire speed,high output.
4.Host machine:Choose the import cross-head device from Europe or the domestic high-quality double-layer cross-head device, realize the inner and outer layer of precision.
5.High quality:Extrusion concentricity over 93%,OD tolerance:+/-0.005mm,capacitance value:+/-0.5PF.
6.Electrical controller: Imported frequency converter +PLC touch screen control.

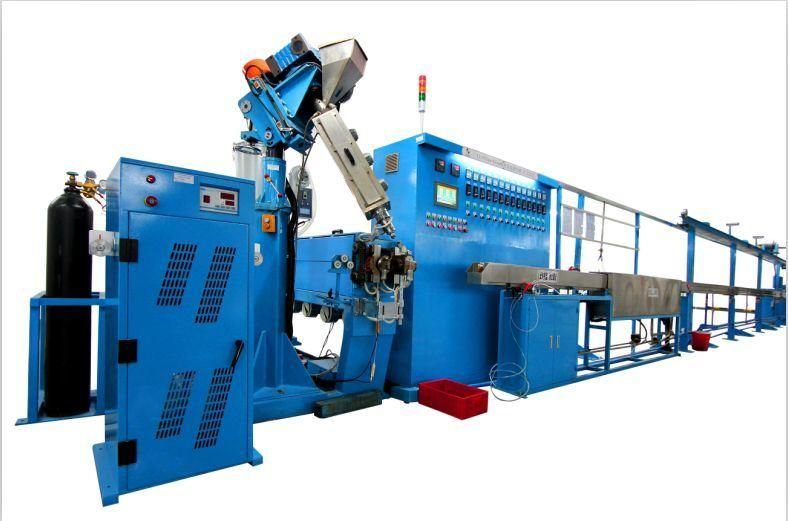

Machine parts:
Active pay-off stand                                                       Tensioner control
Copper wire, pre-heater                                                 Wire drawing mold base
Dual wheel capstan                                                        Inner layer extruder
Foaming layer extruder                                                   Electrical main control cabinet
front moving thermostat water tank                                 Laser measuring diameter instrument
Single layer tank at the back                                           Blow dry
Dual-wheel capstan                                                         Line storage rack
Meter device                                                                    Dual-axis take-up machine
Power frequency spark machine
Water static tester (installed inside a cooling water tank)

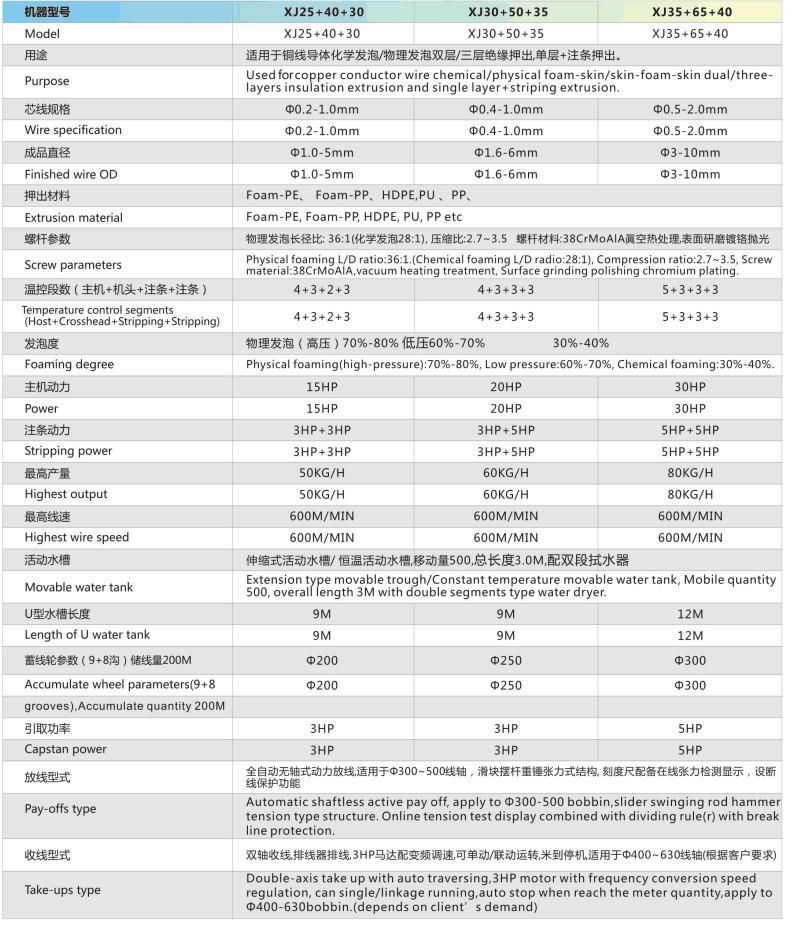

Technical parameters





Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us


Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.
