• Model NO.：YH-DP01
• Mould Life：300,000-1,000,000 Shots
• Power Supply：110,220VAC,50,60Hz
• Power：750W
• Stroke：30mm ,40 mm,50mm
• Length Tolerance：0.005-0.1mm
• Air Connection：0.3-0.6 MPa
• Wire Size：1mm- 3mm
• Transport Package：Carton,Wooden Case
• Specification：22*25*60cm
• Trademark：YH
• Origin：China
• HS Code：8479819000

Basic Info.

Model NO. YH-DP01 Mould Life 300,000-1,000,000 Shots Power Supply 110/220VAC,50/60Hz Power 750W Stroke 30mm /40 mm/50mm Length Tolerance 0.005-0.1mm Air Connection 0.3-0.6 MPa Wire Size 1mm- 3mm Transport Package Carton/Wooden Case Specification 22*25*60cm Trademark YH Origin China HS Code 8479819000

Product Description

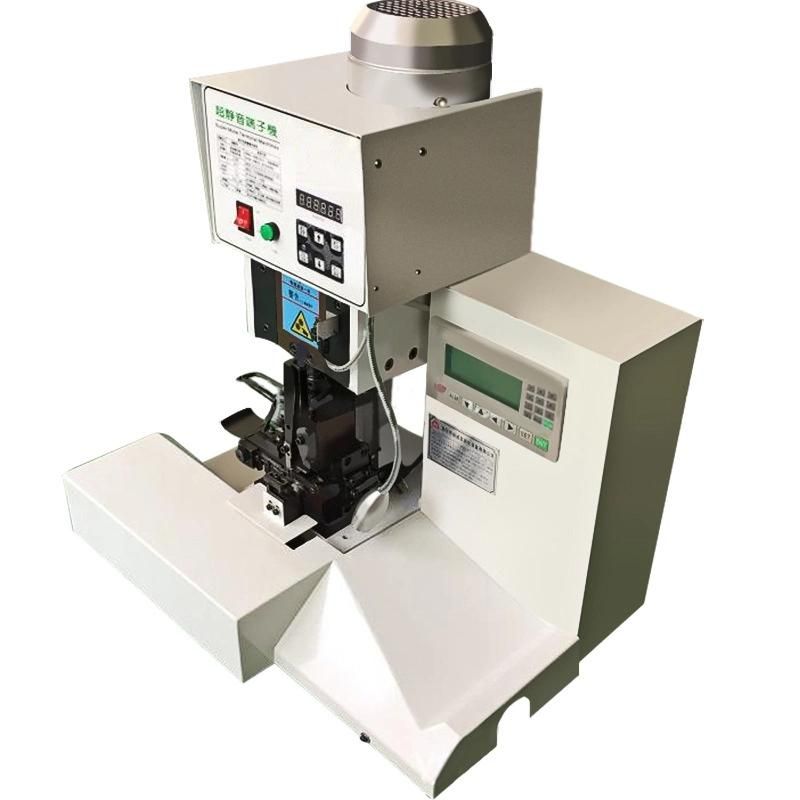

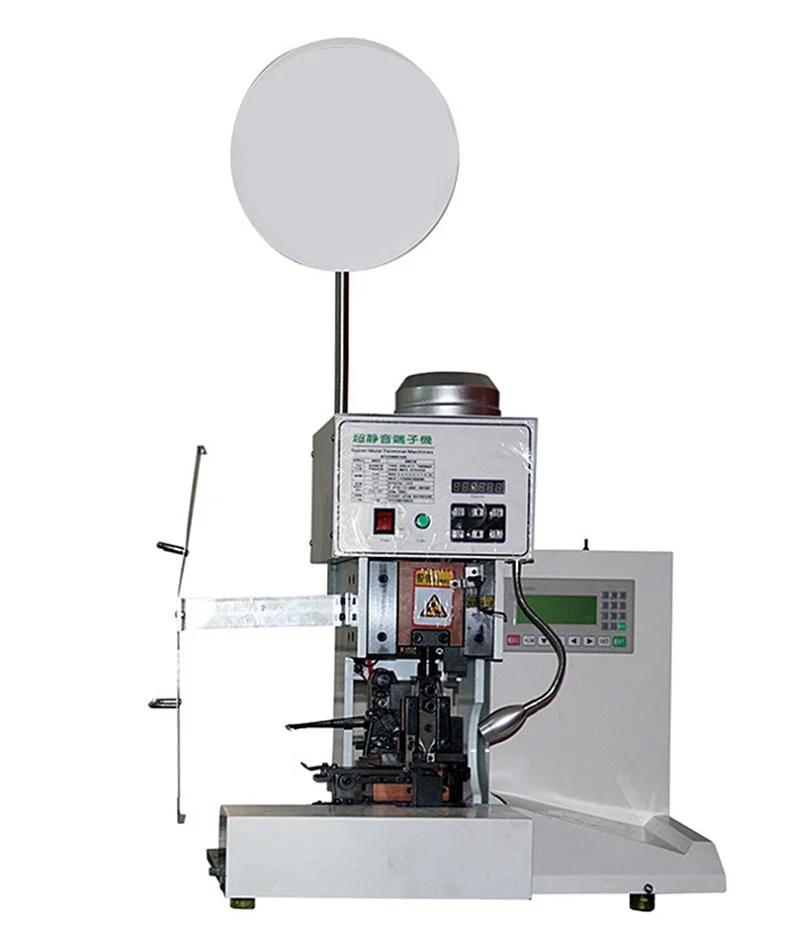

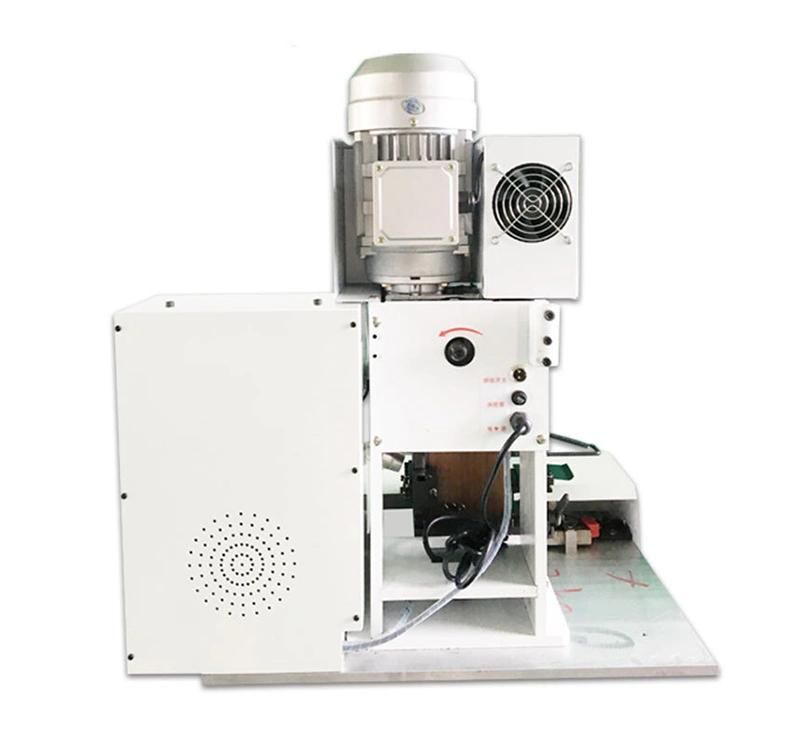

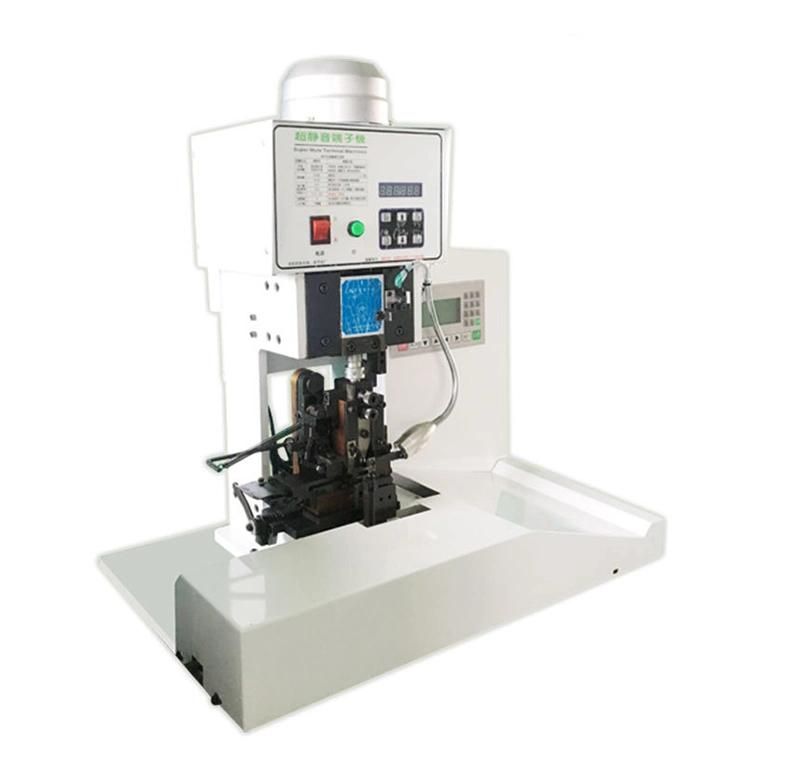

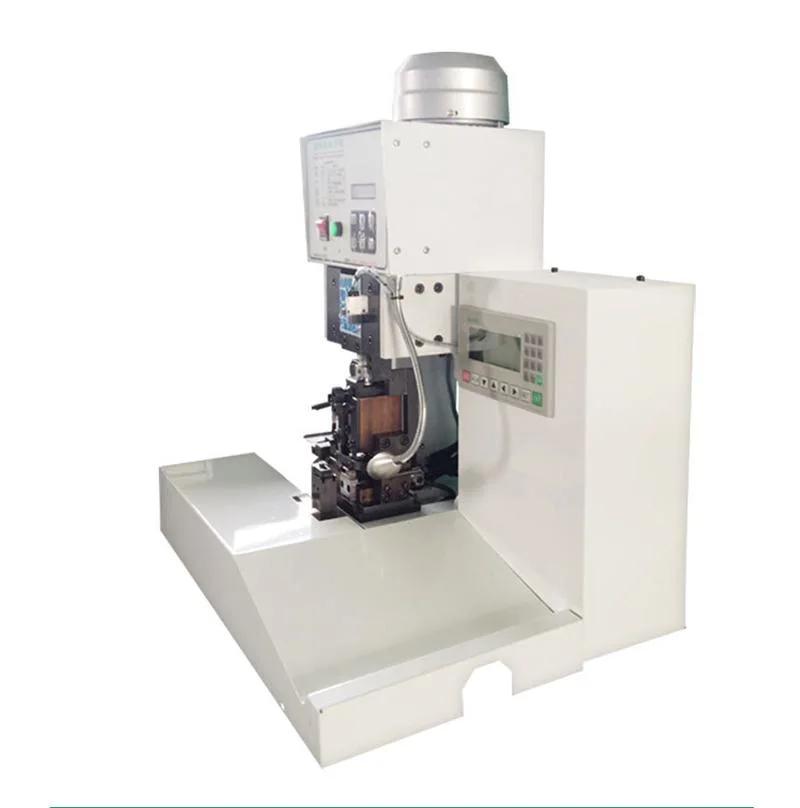

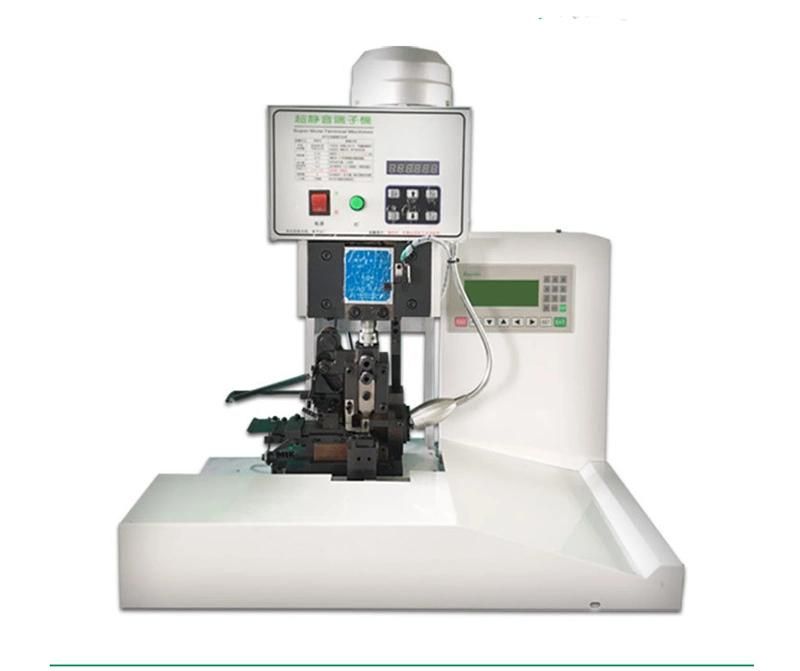

IDC/IDE Flat Ribbon Cable Single Head Crimping Machine

This semi automatic crimping machine is suitable for continuous single-end terminal crimping for flat cables. Applicable terminals: PH, EH, XH, SM, VH, ZH, DuPont terminals, etc. Capacity: 10,000 pcs/hour.

 Features

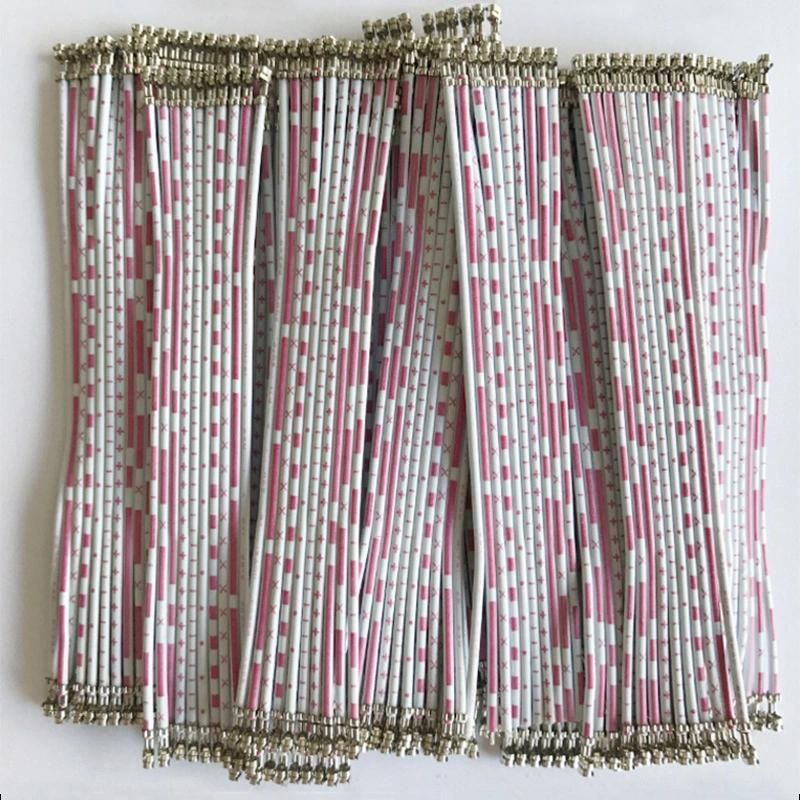

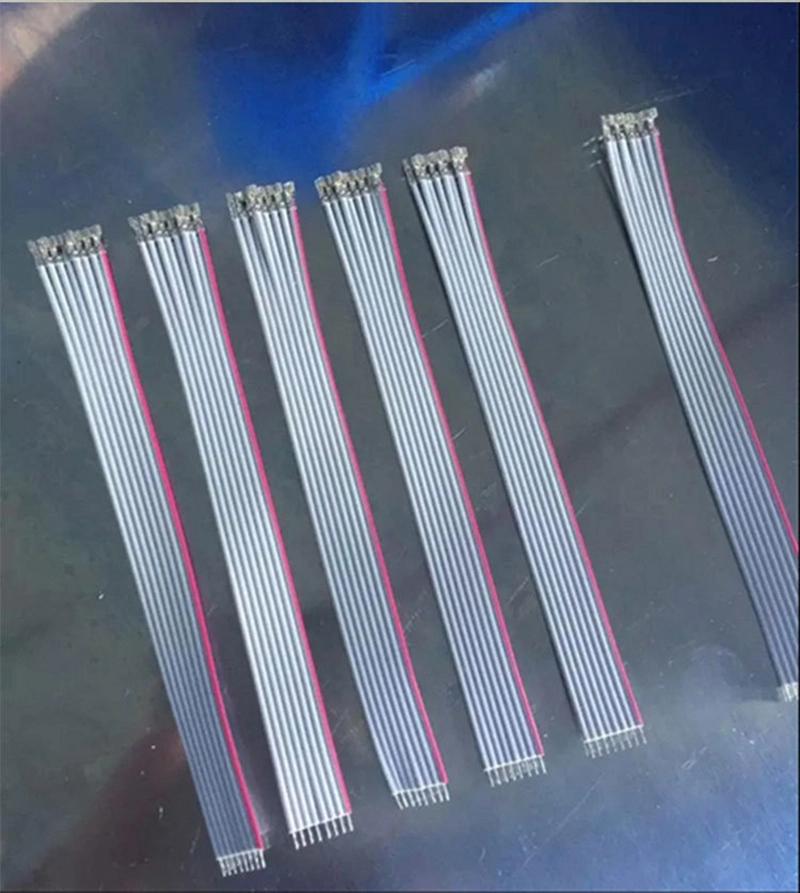

• Function: flat cable one-side terminal crimping

• Suitable for crimping PH, EH, XH, SM, VH, ZH, DuPont terminals, etc.

• OTP transverse mold can be replaced at will, easy to operate

• The terminals are pressed neatly with good consistency and stable quality

• Adopting high precision inverter, SMC pneumatic components, and PLC control system

• Using stepper motor, the crimping pressure is accurate, ensuring continuous performance

• High efficiency: up to 10K pcs/hour

Specifications



Model	YH-DP01
Function	Single end crimping
Power supply	AC220V, 50/60Hz
Power	750W
Wire size	1~3mm
Standard P number	2P-20P
Split line length	≥45mm
Crimp force	2.0T
Dimensions	600*400*650mm
Weight	65KG







Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden


Any questions, please feel free to contact us ! Thank you !
