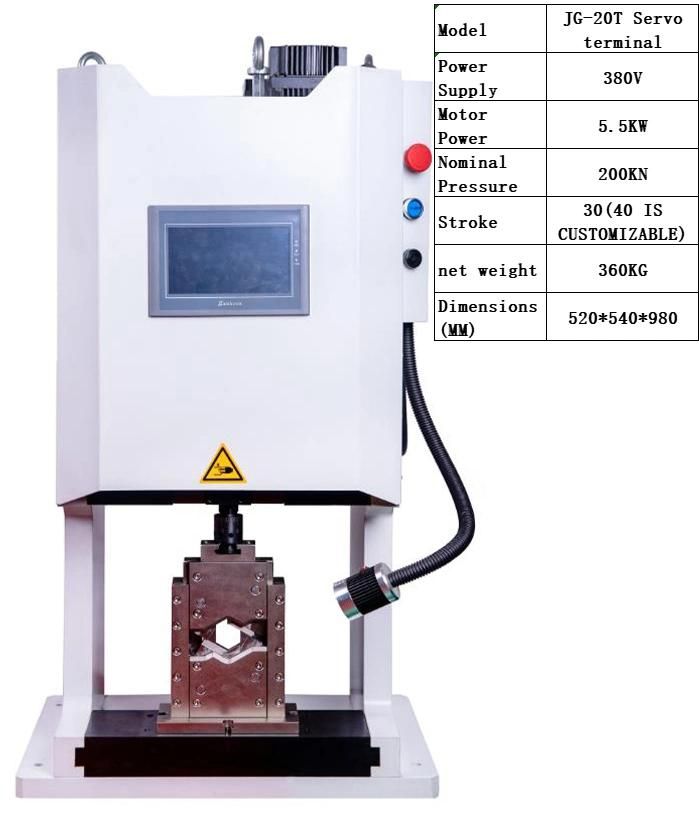

Jg-Sf20t High Quality High Accuracr Servo Terminal Crimping Machine

Anhui Jiugong Electronic Equipment Co., Ltd.
  • After-sales Service：Slove Your Problem in 24hours
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, SGS
  • Warranty：12 Months
  • Automatic Grade：Semiautomatic

Base Info

  • Model NO.：JG-SF20T
  • Transport Package：Carton,Wooden Case
  • Specification：520*540*980
  • Trademark：JG
  • Origin：China
  • HS Code：8479819000

Description

ModelJG-SF8.0TJG-SF10T JG-SF15TJG-SF20TJG-SF30TPower380v380V380V380V380VMotor Power2.3KW low power2.3KW high power3.6KW5.5KW7.5KWNominal Pressure80KN100KN150KN200KN300KNStroke30MM(40MM IS CUSTOMIZABLE)Net Weight135KG138KG350KG360KG370KGDimensions400*380*740400*380*740520*540*980520*540*980520*540*1030
Pressing capacity: 200000KG
Wire diameter range: max pressing wire diameter 120 square
Power supply : 380V 50HZ
Pressure times:400spm
Closing height :max 200mm
Height regulator :10mm
Volume(length*width*height):520*540*980
Weight :360kg
