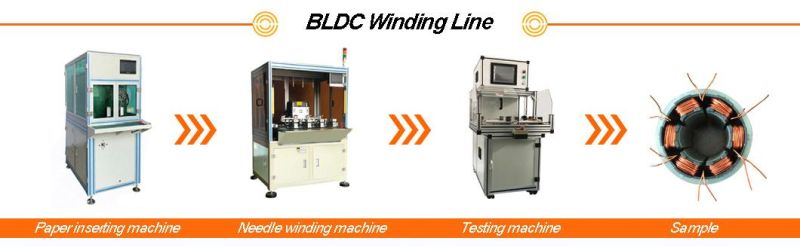

Customized Brushless Motor Inslot Needle Winder Coil Winding Machine
Shanghai Wind Automation Equipment Co., Ltd.- Voltage：380V
- Warranty：12 Months
- Working Station：2
- Automation Type：Fully Automatic
- Color：Customized
- Air Source：0.4~0.7 MPa
Base Info
- Model NO.：WIND-BLDC-2
- Power：8 W
- Weight：700 Kg
- Dimension：1000X800X2000mm
- After-Sales Service：Engineers Avaiable to Service Overseas
- Transport Package：Wooden Case
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-BLDC-2 Power 8 W Weight 700 Kg Dimension 1000X800X2000mm After-Sales Service Engineers Avaiable to Service Overseas Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
Customized Brushless Motor Inslot Needle Winder Coil Winding Machine
(1) Specification| Working station | 2 |
| Stator ID | Min 28mm |
| Slot number | 4~18 |
| Stator OD | Max 120mm |
| Wire range | Min 0.08mm |
| Air source | 0.5--0.7Mpa |
| Power supply | 380 V, 50/60HZ |
| Dimension | 1450x1200x1800mm |
| Weight | 550KG |
(2) Application
It is suitable for brushless motors.
(3) Features
High efficiency and production
Precise servo drive control of the wire feeding
2 working stations to do synchronous winding
High quality level of the winding process
Provide customized service
