Fully Automatic Brushless Motor Coil Winding Machine
Shanghai Wind Automation Equipment Co., Ltd.- Voltage：380V
- Automation Type：Fully Automatic
- Working Station：4
- Color：Customized
- Air Source：7 Kg,Cm
- Spindle Spacing：155mm
Base Info
- Model NO.：WIND-BLDC-4
- Weight：680kg
- Dimension：1000X1100X1700mm
- Transport Package：Wooden Case
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-BLDC-4 Weight 680kg Dimension 1000X1100X1700mm Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
Fully Automatic Brushless Motor Coil Winding Machine

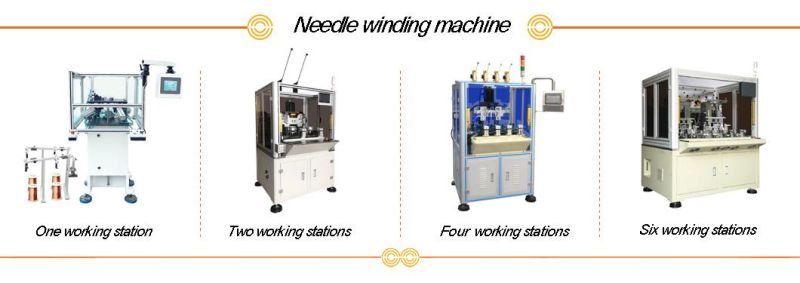

This coil winding machine is of high efficiency and automation. Except for loading and unloading, other processes will be done by this needle winder automatically. Therefore, no skilled operator needed to operate this machine. (1)Features
4 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 800r/min
Wide application and strong applicability
High efficiency and production
Precise servo drive control of the wire feeding
Provide customized service
(2)Specification
| Working station | 4 |
| Stator OD | 20~100mm |
| Stator ID | 12~80mm |
| Stack length | 5~70mm |
| Wire diameter | 0.08~1.0mm |
| Spindle spacing | 155mm |
| Drive servo | 3000W 1 set |
| Indexing servo | 2000W 2 sets |
| Arraying servo | 750W 2 sets |
| Air source | 7 kg/cm |
| Power supply | 380V 50HZ 15A |
| Dimension | 1000x1100x1700mm |
| Weight | 680KG |
(3) Application
It is suitable for brushless motors, home appliance motors, medical equipment motors, industrial fans, pump motors, hybrid car vehicles motors, rotary transformers, sensors, servo motors, stepper motors, vacuum cleaner motors, power tool motors.
