USB3.1 High Speed Horizontal Type Winding Taping Machine

Dongguan Newtopp Electrical Machinery Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Screw：Single-Screw
  • Wrapping Tension：Automatic Calculation Tracking

Base Info

  • Model NO.：XJ 300
  • Rotate Speed：Max2000rpm
  • Wire Specification：AWG32-AWG42
  • Customized：Customized
  • Usage：for Twisted Wire, Parallel Wire Wrapping
  • Taping Material：Aluminum Foil Tape,Mica Tape etc
  • Heating Tension：Auto Flexible Type with Omron Temperature Control
  • Take-up：Axis-Row Take up
  • Precision：High Precision
  • Transport Package：PE Film(up to You)
  • Specification：XJ300
  • Trademark：CE, ISO, FCC, FDA, VDE, IEC60898, CCS, CCC, LR, A
  • Origin：Dongguan City, Guangdong Province, China
  • HS Code：8479400000
  • Production Capacity：20 Sets,Month

Description

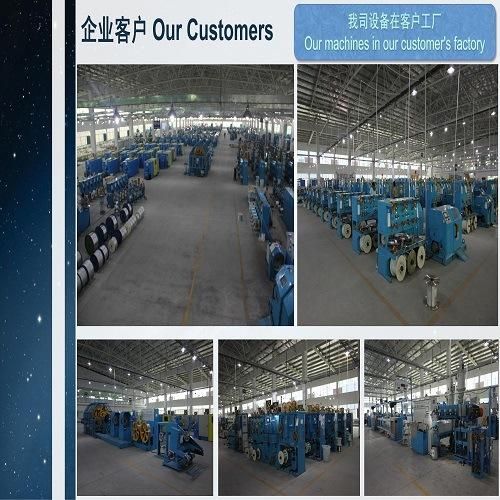

Model Horizontal  type micro-fine  double  layers wrapping machineUsageUsed for twisted wire, parallel wire double layers/ single layer continuously centering wrappingWire SpecificationAWG28-AWG38Taping MaterialAluminum foil tape, cotton paper tape, transparent tape, mica tape, teflon tape etcRotate SpeedMax2000rpm/Max 18m/minPowerspeed regulation by 1HP Servo motor plus Servo controller, wrapping plate is linkage with capstan motorWrapping TensionWrapping tension automatic calculation tracking and keep constant from start to end. Needn't any artificial adjustmentHeating DeviceAuto flexible type with Omron temperature control, the temperature will controlled with 1°CTake-up tensionTake up tension keep constant from start to end, needn't any adjustmentTake-upAxis-row type take up, no damage during traversing process, distan can be set freely according the wire specificationPay-off Type Straight line slide rail+Slider heavy hammer tension type power pay-off with Variabke frequency speed regulation and set the break line protection function3.The machine in our Client's factory.
      USB3.1 High Speed Horizontal Type Winding Taping Machine


3.FAQ
 Q:why choise  us?
 A:We have more than ten years equimpment manufature experience.And  we are already a mature automation manufacturer before becoming high-end wire and cable equipment manufacturing.
  Q:How you can get to our factory?
   A:Baoan airport to our factory just   45minutes.
