Fully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070h

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-8070H ,YH-SXJ2
  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping
  • Feeding Method：12-Wheel Belt Feeder
  • Cutting Length：0.01-999999.99mm
  • Wire Diameter：10-70 mm2
  • Core Wires：2-8 Cores
  • Head Peeling：Head Peeling Max 120mm
  • Tail Peeling：Tail Peeling Max 240mm
  • Stripping Accuracy：0.01mm
  • Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
  • Capacity：2300PCS,H
  • Detect Function：Wire Presence Detection
  • Air Pressure：0.5-0.8MPa
  • Input Power：AC220V,50Hz
  • Power：3.2kw
  • Transport Package：Double-Layer Export Carton
  • Specification：530*530*400mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

Φ25Blades materialimported high speed steelCapacity1800 PCS/hDriving mode32 wheel drive (silent hybrid stepping motor, servo tool holder)Feeding methodFeeding with belt, the cable has no indentationRemarkThe machine can be customized for processing special cables, and the sample cable should be sent to us for test

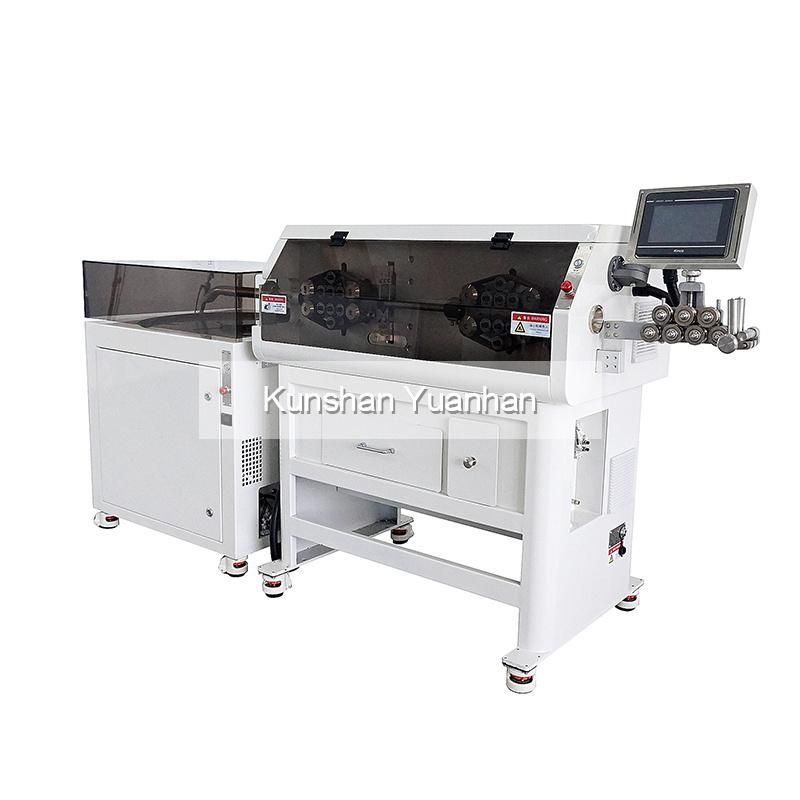

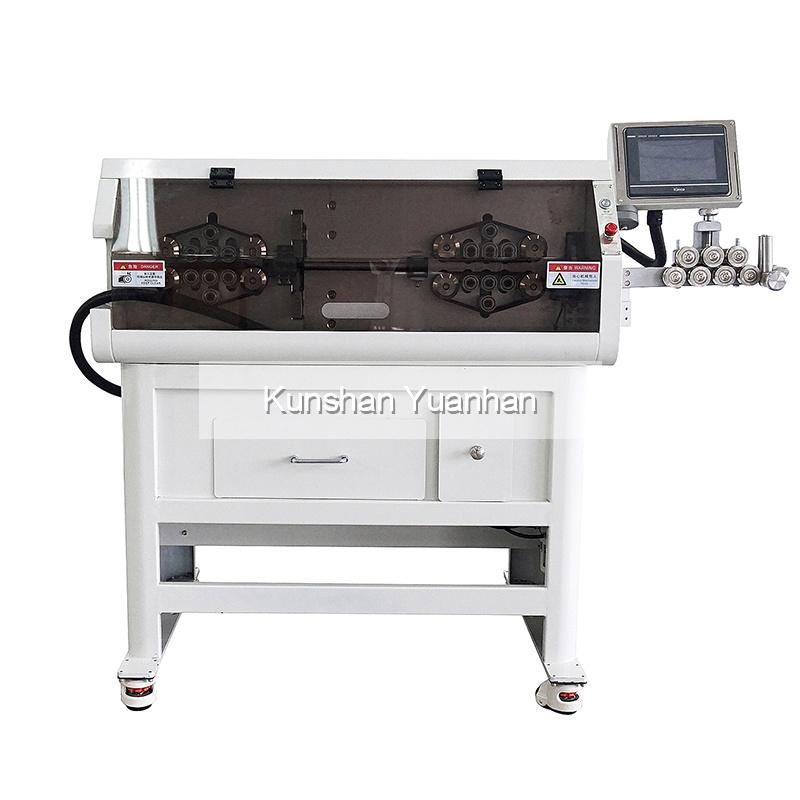

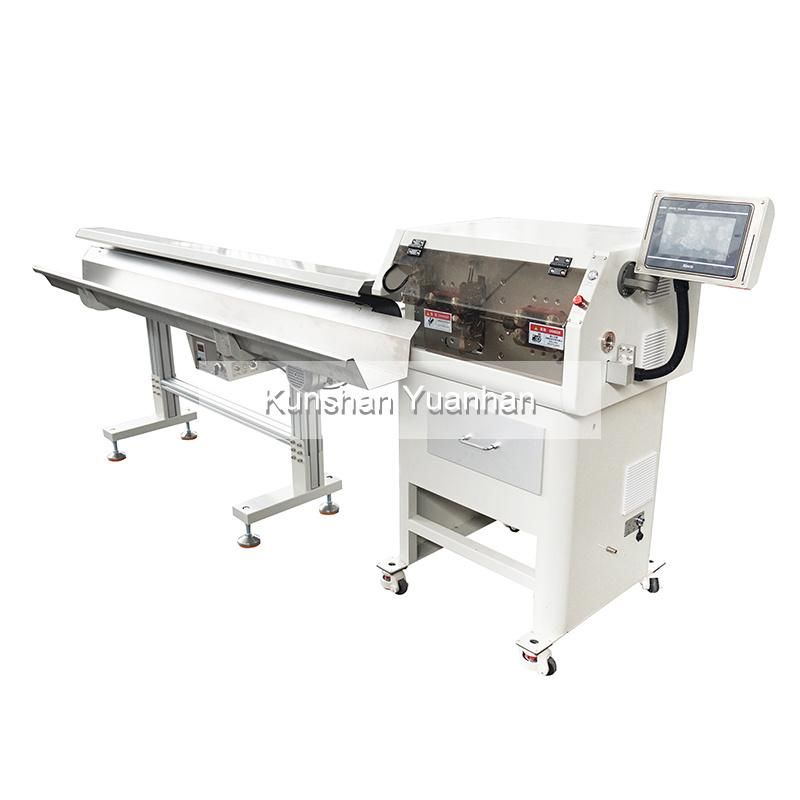

Product Pictures
Fully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070hFully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070hFully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070hFully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070h

Fully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070hFully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070hFully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070h

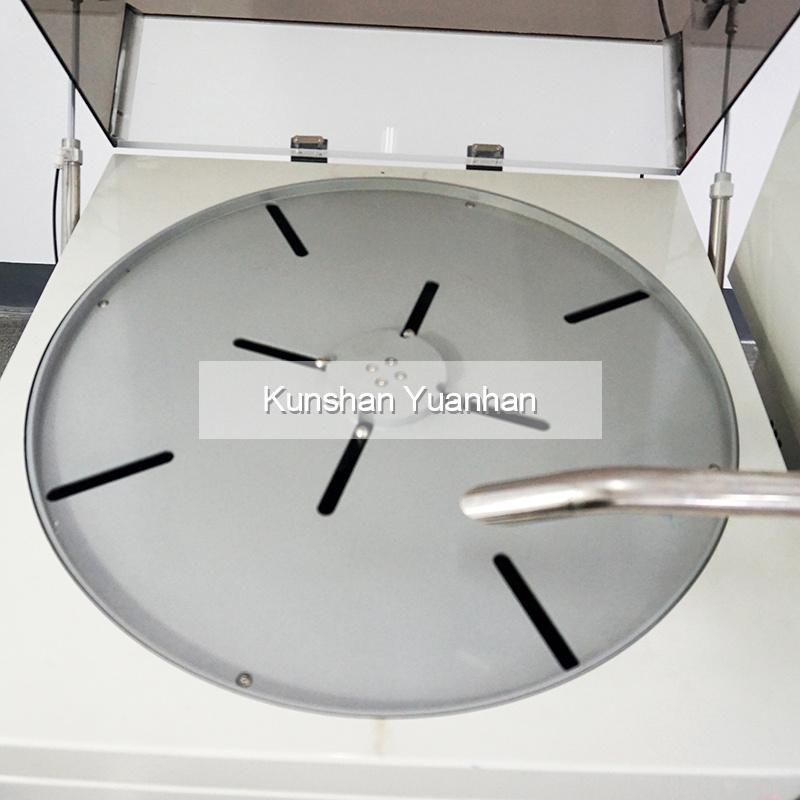

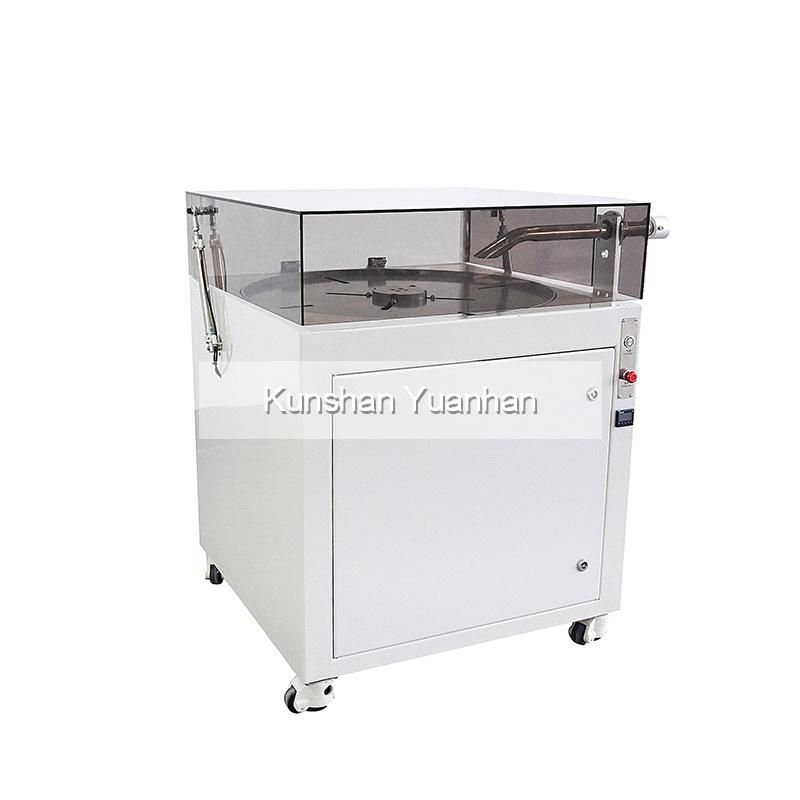

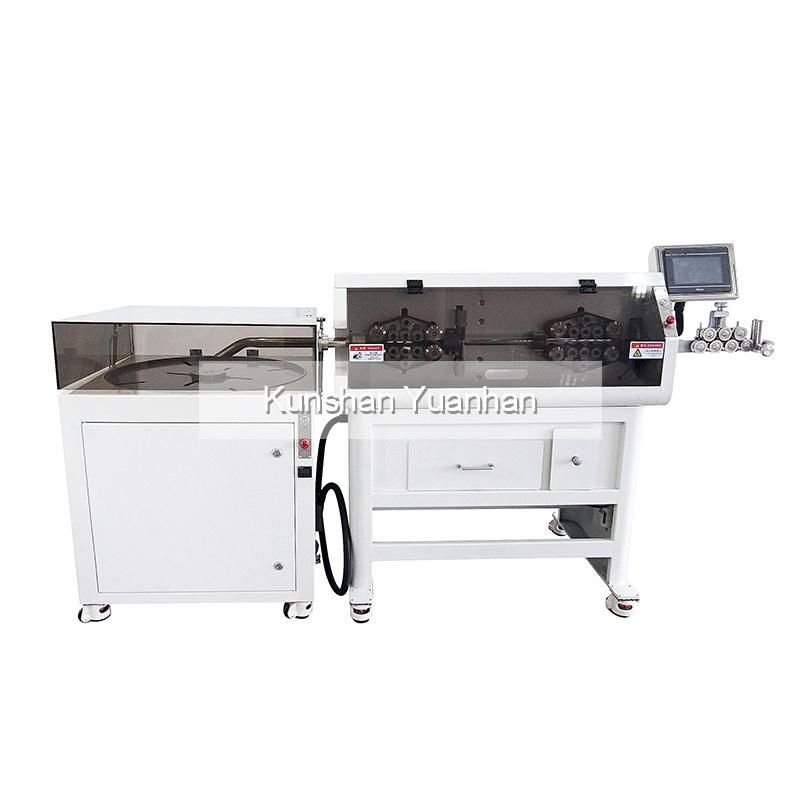

  30 square sheathed wire cutting and stripping both inside and outside. All-in-one machine, with manipulator + 2 meters of wire take-up frameFully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070hFully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070h



Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

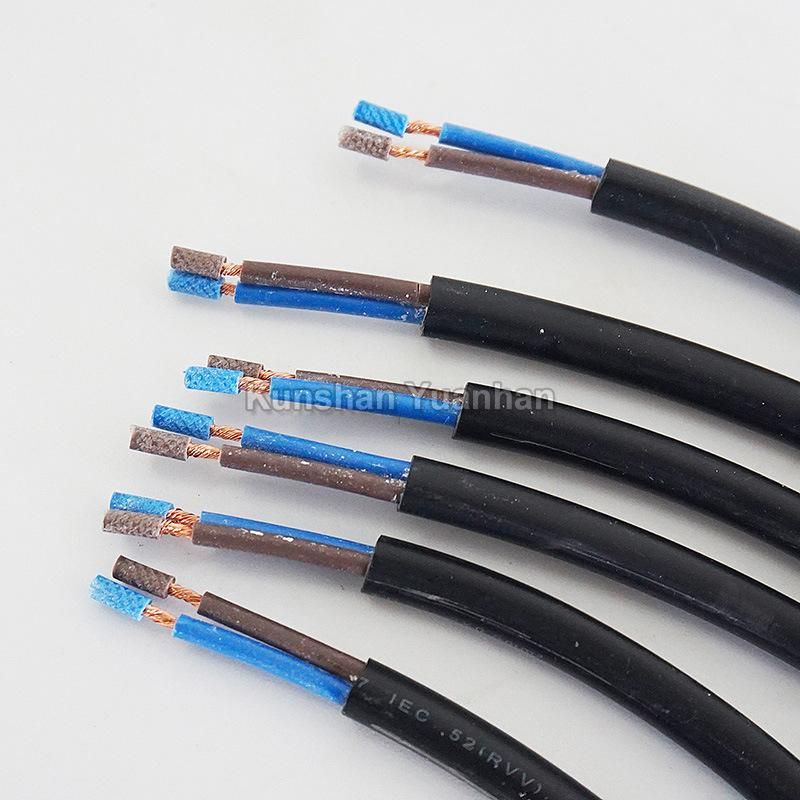

Sample: cut and strip wire automatically

Fully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070hFully Automatic Large Cable Stripping Machine Multi-Core Sheathed Cables Stripping Cutting and Twisting Machine Yh-8070h
Any questions, please feel free to contact us ! Thank you !
